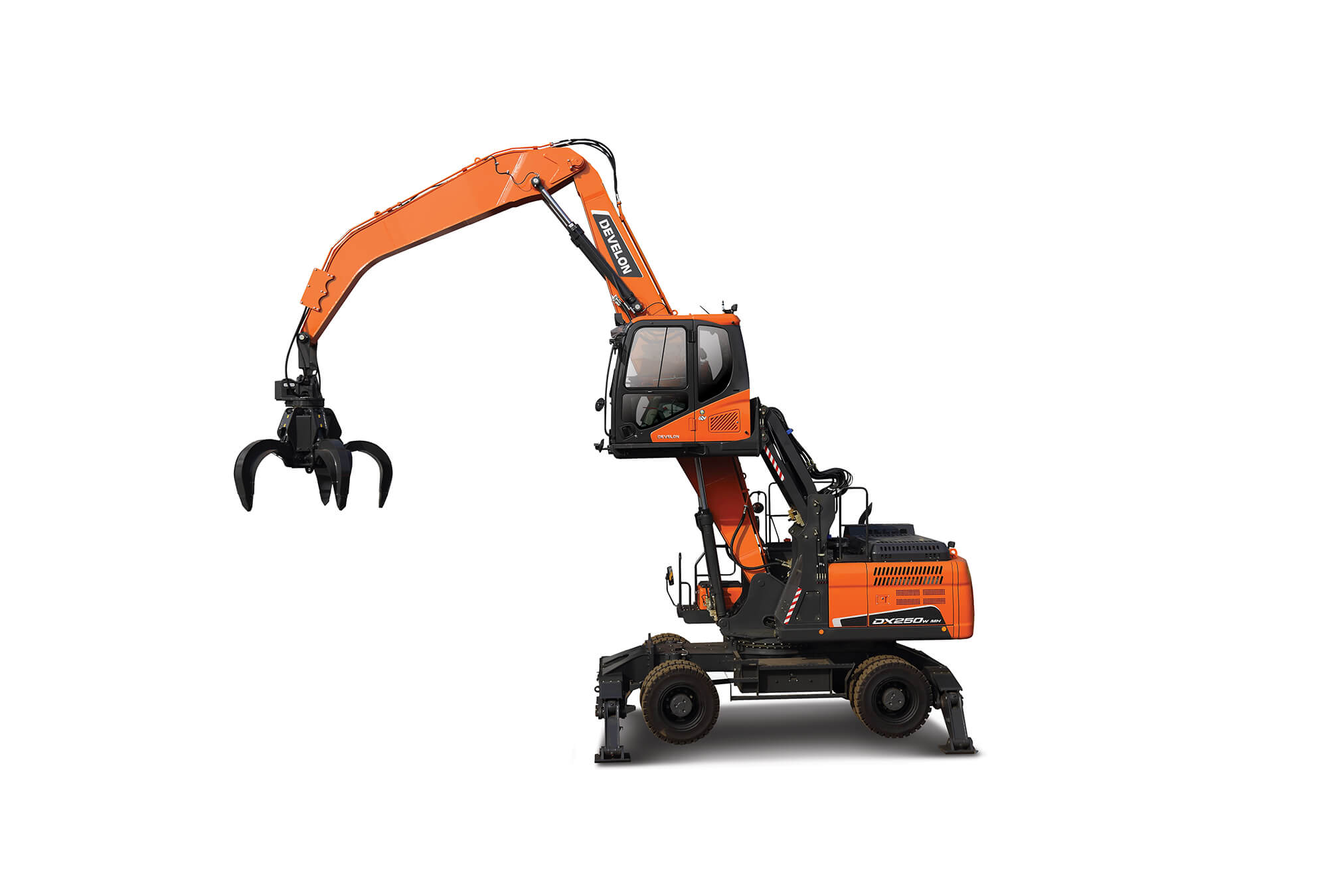

The new DX250WMH-5 is 25 tonne Stage IV compliant material handler for use in the solid waste, recycling, demolition and forestry industries.
Based on Develon popular DX210W-5 21 tonne wheeled excavator, the new DX250WMH-5 material handler has been designed specifically for a wide range of material sorting and handling applications such as those in the scrap metal and other solid waste and recycling industries, as well as logging.
Designed to carry out the toughest tasks, the DX250WMH-5 is built with front and rear stabilizers, and a boom and arm specifically designed for material handling tasks. A standard feature is the hydraulic cab riser, which gives the operator better all-around visibility of the attachment and work area.
|Operating weight||24.900 kg|
|Engine power||129.4 kW / 173.5 HP at 1900 RPM|
|Maximum swing speed||9.8 RPM|
|Maximum swing torgue||6387 kgf.m|
|Upper structure without front||12065 kg|
|Front assembly||4010 kg|
|Boom 6.5 m||2000 kg|
|Arm 4.5 m Gooseneck||1200 kg|
|Arm 4 m Straight||1380 kg|
|Hydraulic elevating cab||1190 kg|
|Stabilizer cylinder (each)||113 kg|
|Max. bucket pin height||12000 mm|
|Max. working reach||10700 mm / 10400 mm (4500 Gooseneck / 4000 Straight)|
|Max. working depth||4700 mm / 4200 mm (4500 Gooseneck / 4000 Straight)|
|Min. swing radius||2600 mm|
|Elevation height||2500 mm|
|Tail swing radius||2860 mm|
|Wheel base||2850 mm|
|Upper housing width||2700 mm|
|Ground clearance||350 mm|
|Tread width||2114 mm|
|Height over cab||5450 mm|
|Boom lenght||6500 mm|
|Main pumps max flow||2 × 236 l/min|
