DA45-7

Engine

Scania DC13

Transmission

ZF 8 EP420

Configuration

6 in line cyl / 12.7 l

Request a Quote Download Brochure

Find a Dealer

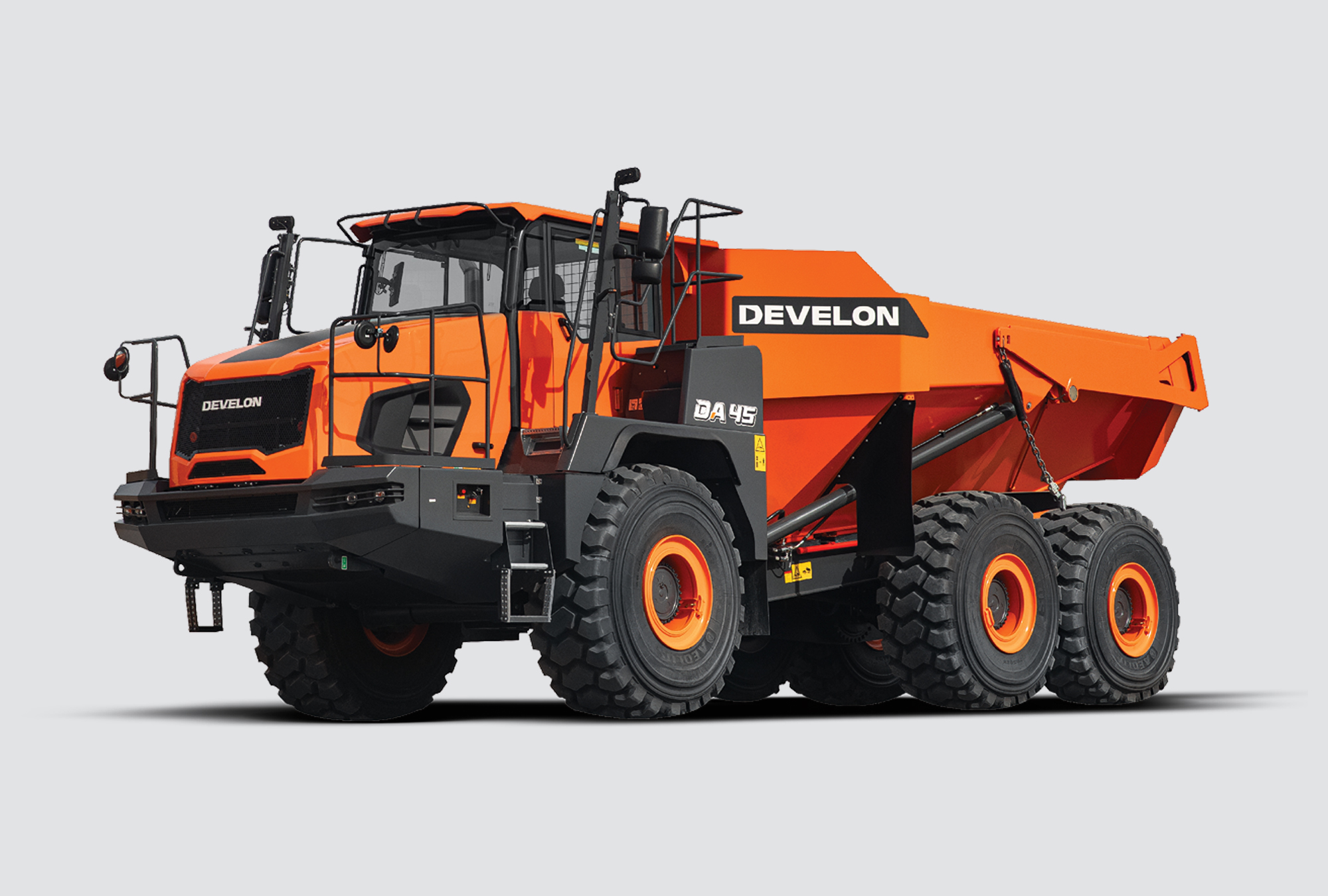

DA45-7

Maximize Efficiency

The Develon DA45-7 offers the best combination of payload and efficiency in its class. Thanks to its unique design, best productivity is delivered in all working conditions.

More information

Unstoppable Stage V compliant Scania DC13 engine: 368 kW (500 HP) at 2100 rpm. Unique design of rear frame, body, and front-mounted
differential and transmission make the Develon machine the most compact ADT in its class, which results in smallest turning radius and outstanding stability.

Specifications

Machine Specs

Engine	Scania DC13
Transmission	ZF 8 EP420
Configuration	6 in line cyl / 12.7 l
Gross power	500HP (368 kW) @ 2.100 RPM
Net power	483 HP (360 kW) @ 2.100 RPM
Gross torque	2.373 Nm @ 1.300 RPM
Body volume (SAE 2:1) without tailgate	24.4 m³

Power to weight, empty	11.8 kW/t
Power to weight, loaded	5.0 kW/t
Max. travel speed forward (1 / 2 / 3 / 4 / 5 / 6 / 7 / 8)	5 / 8 / 11 / 16 / 23 / 32 / 45 / 55 km/h
Total lenght	10590 mm
Width	3630 mm
Maximum payload	41 t
Net weight (SAE 2:1)	30.500 kg
