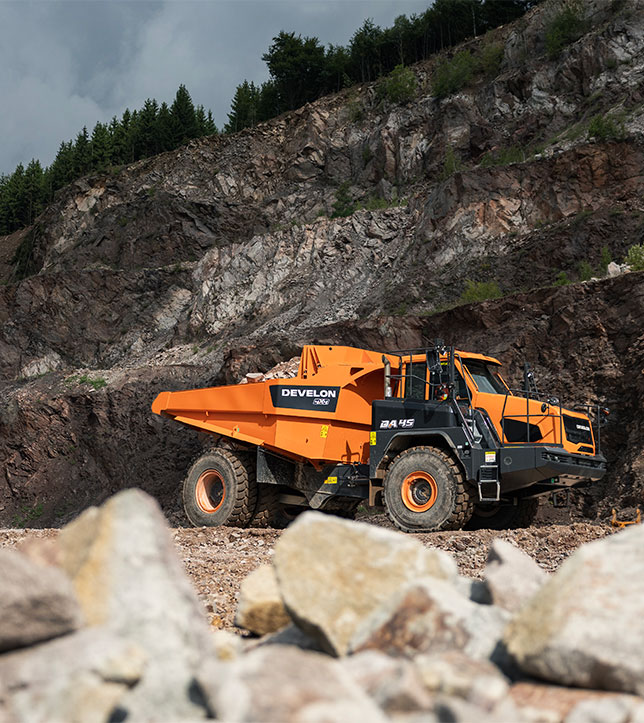

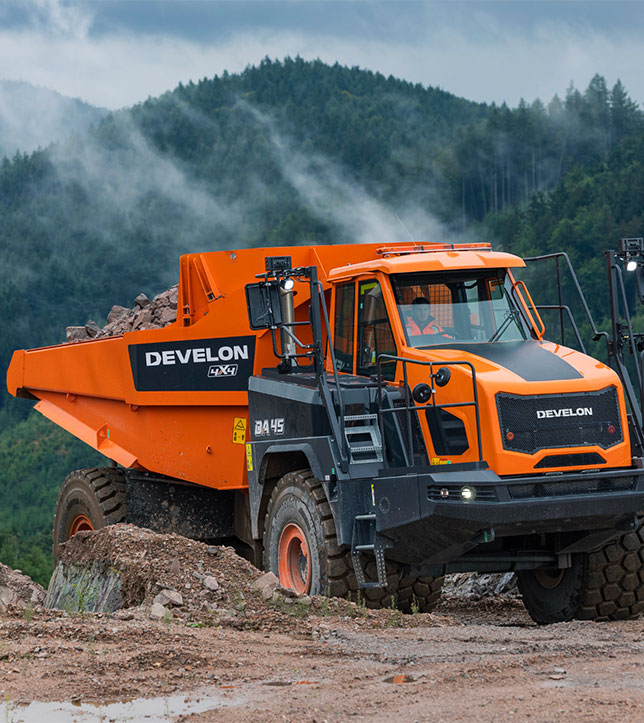

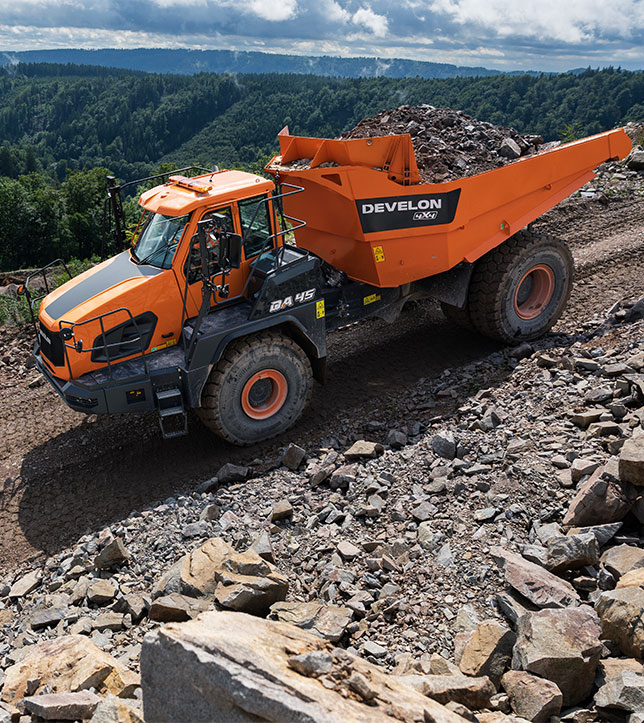

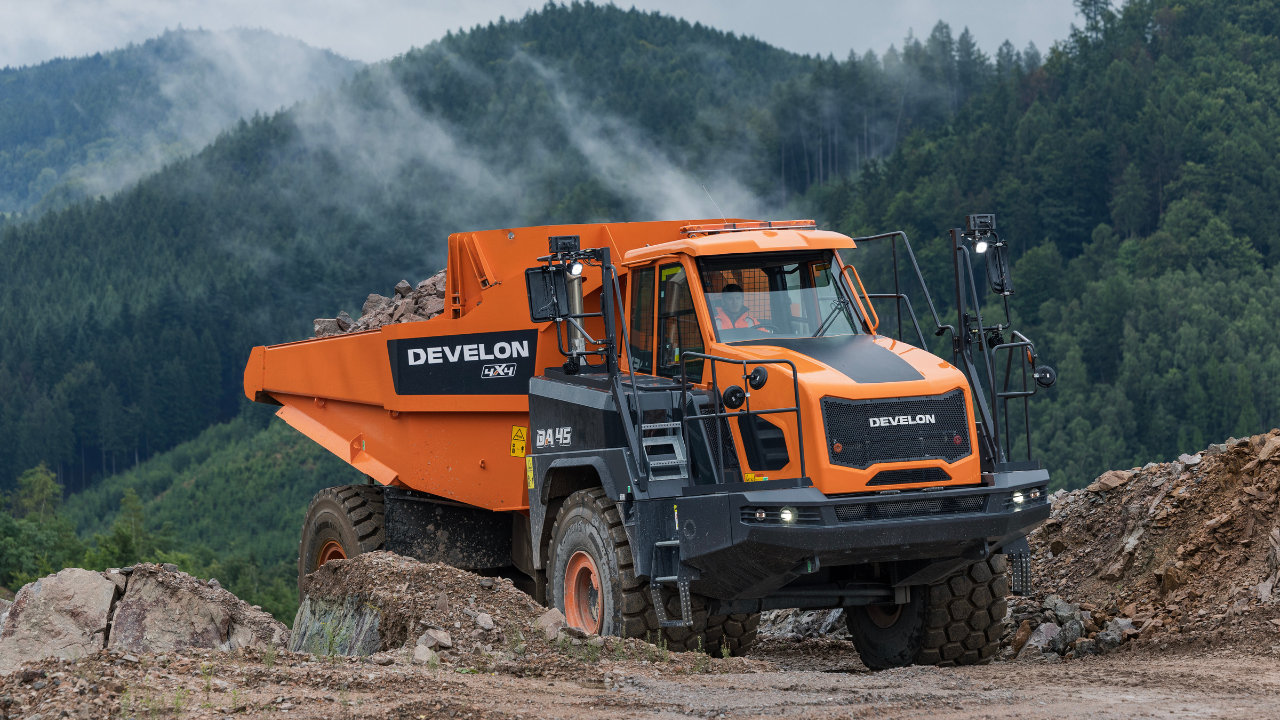

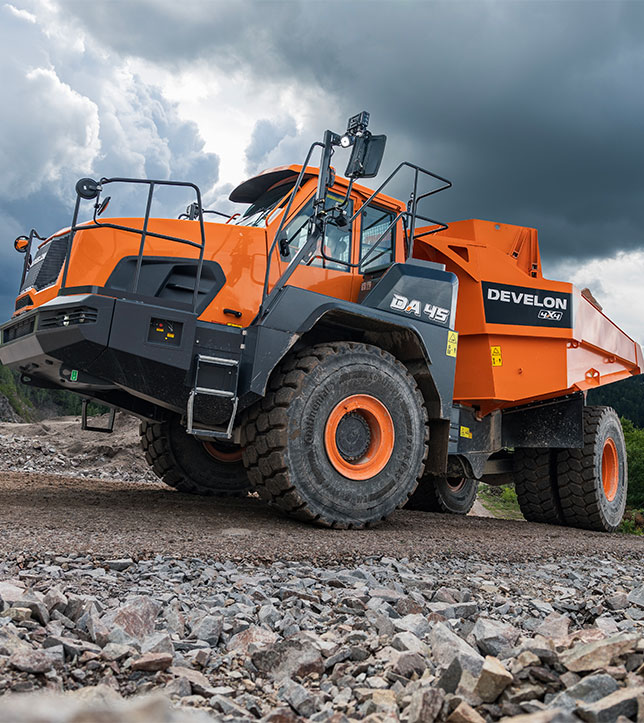

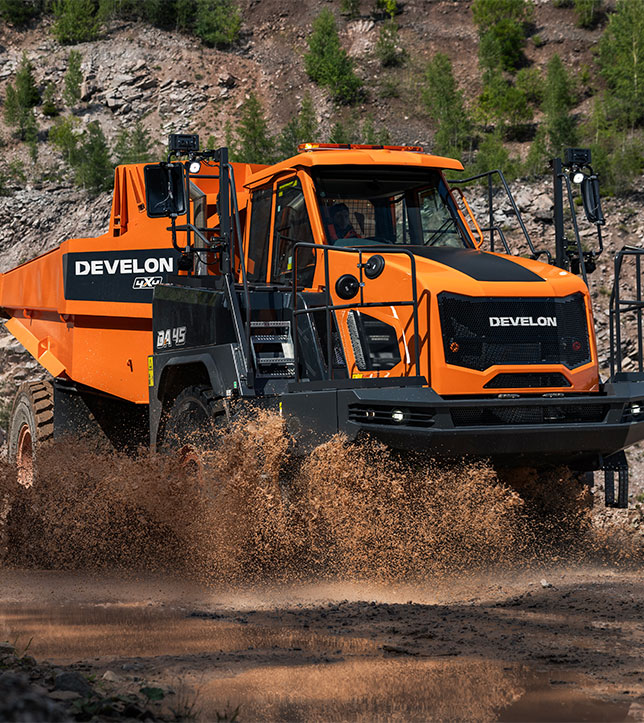

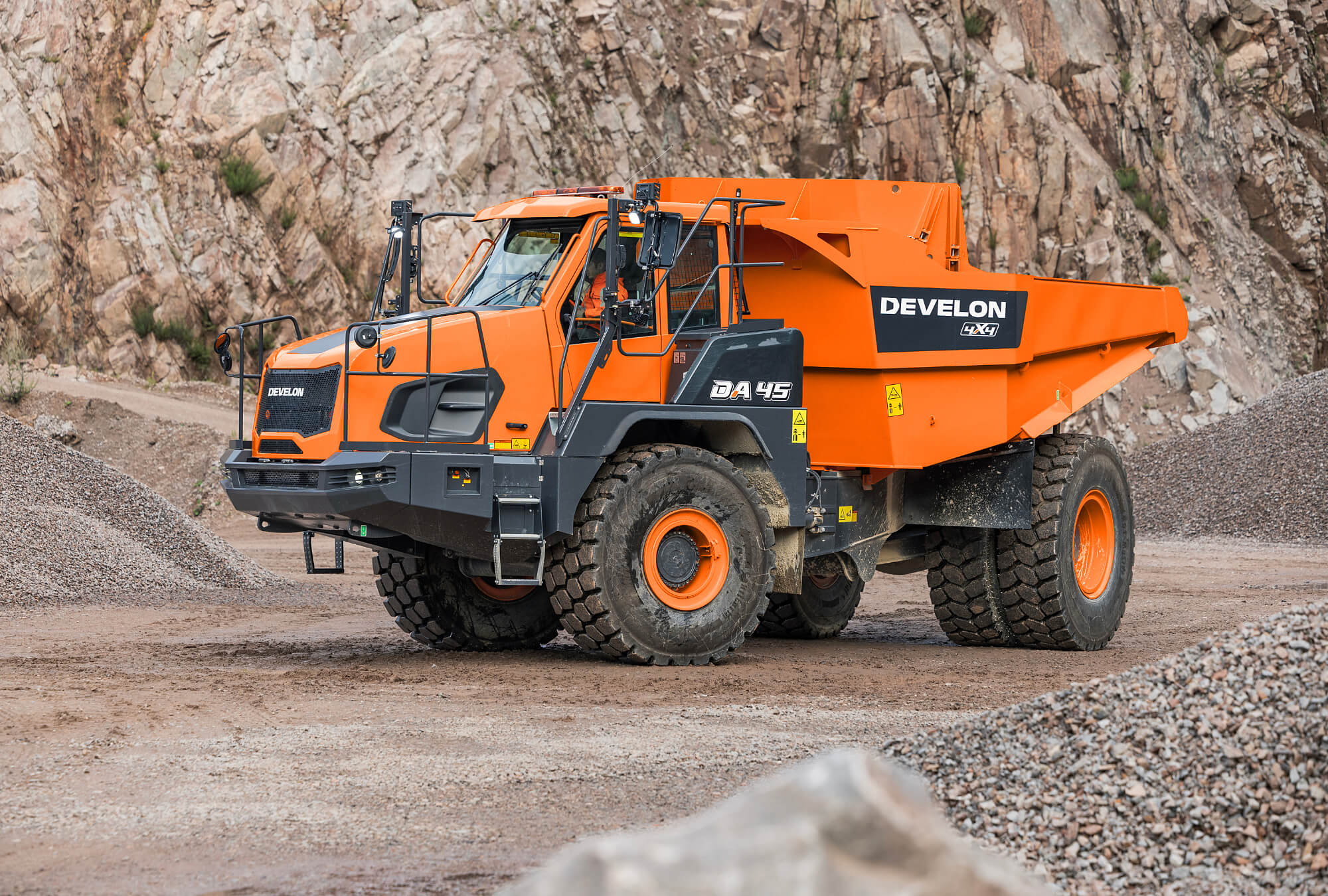

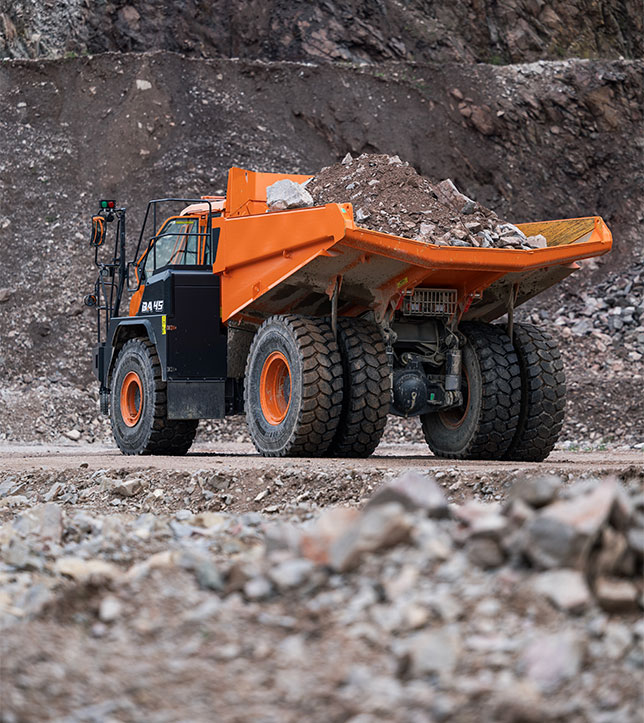

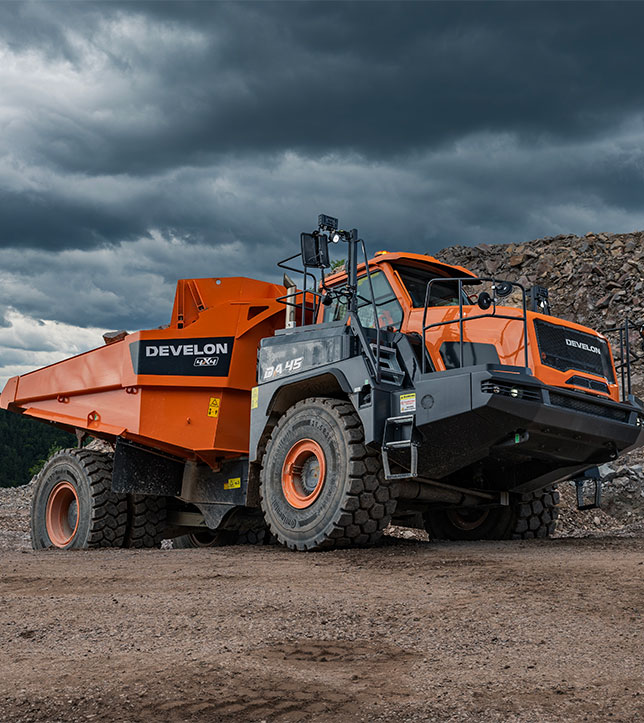

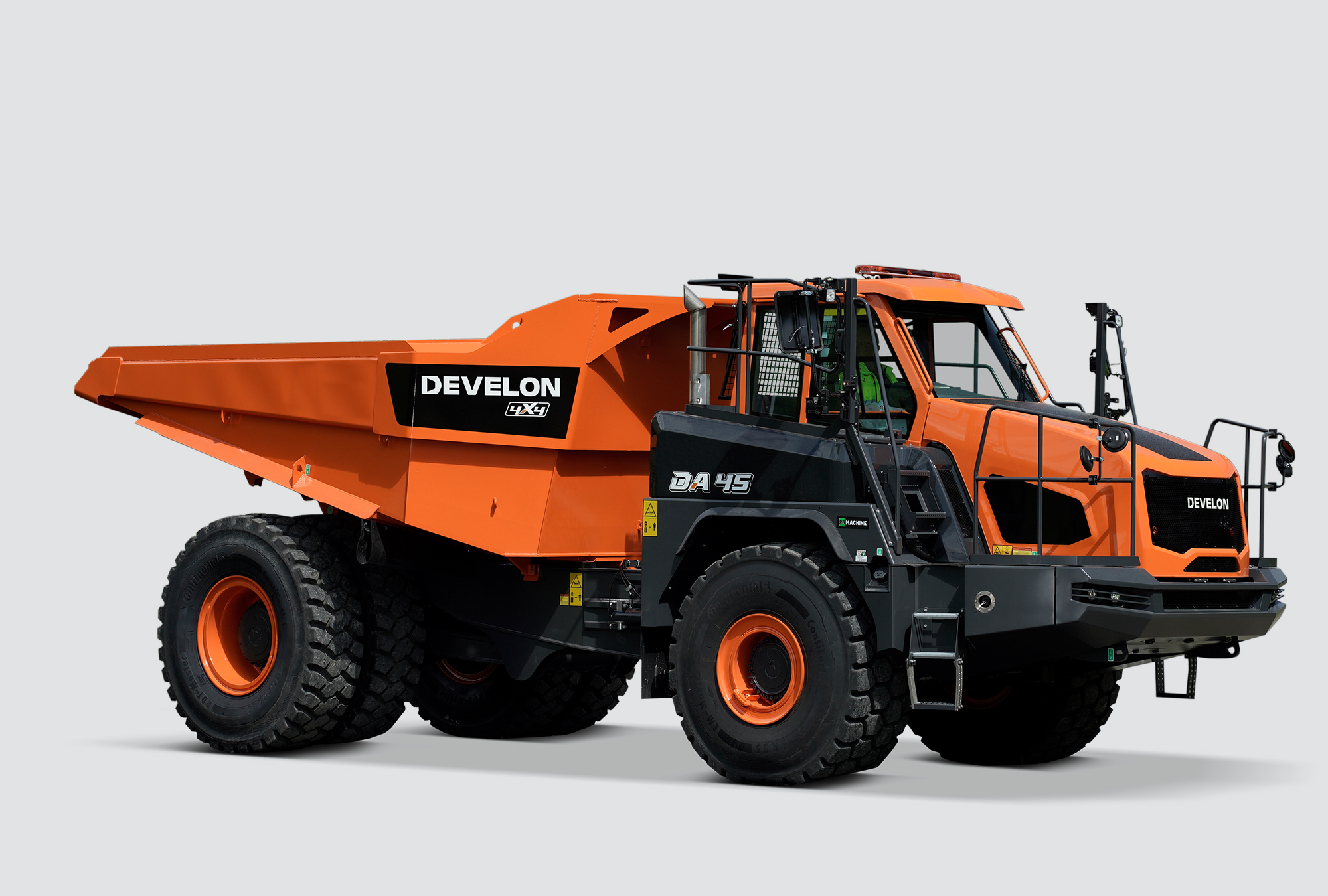

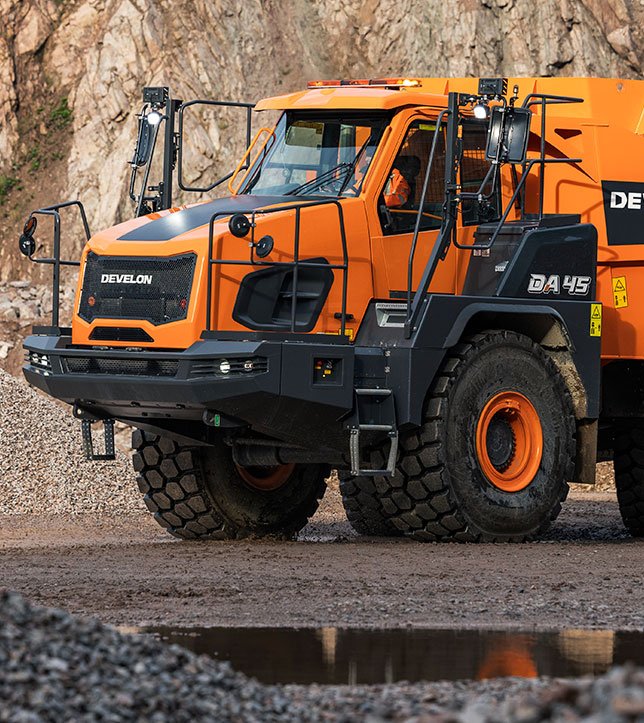

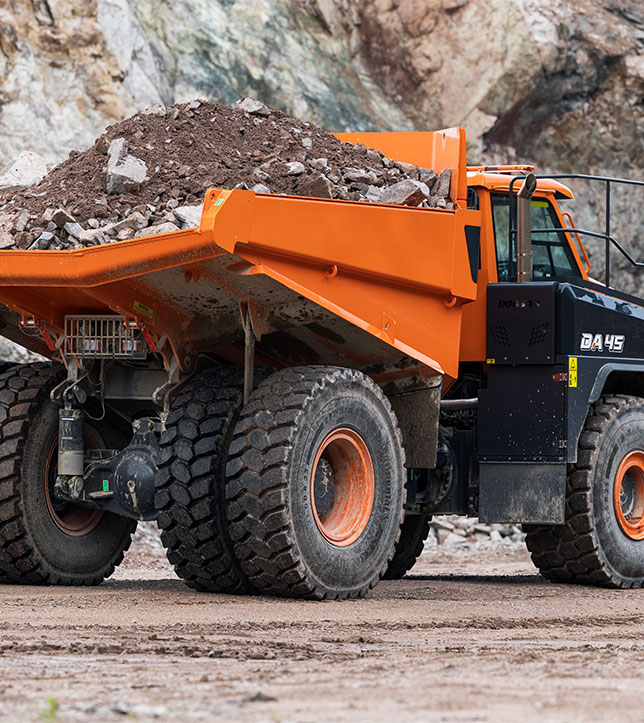

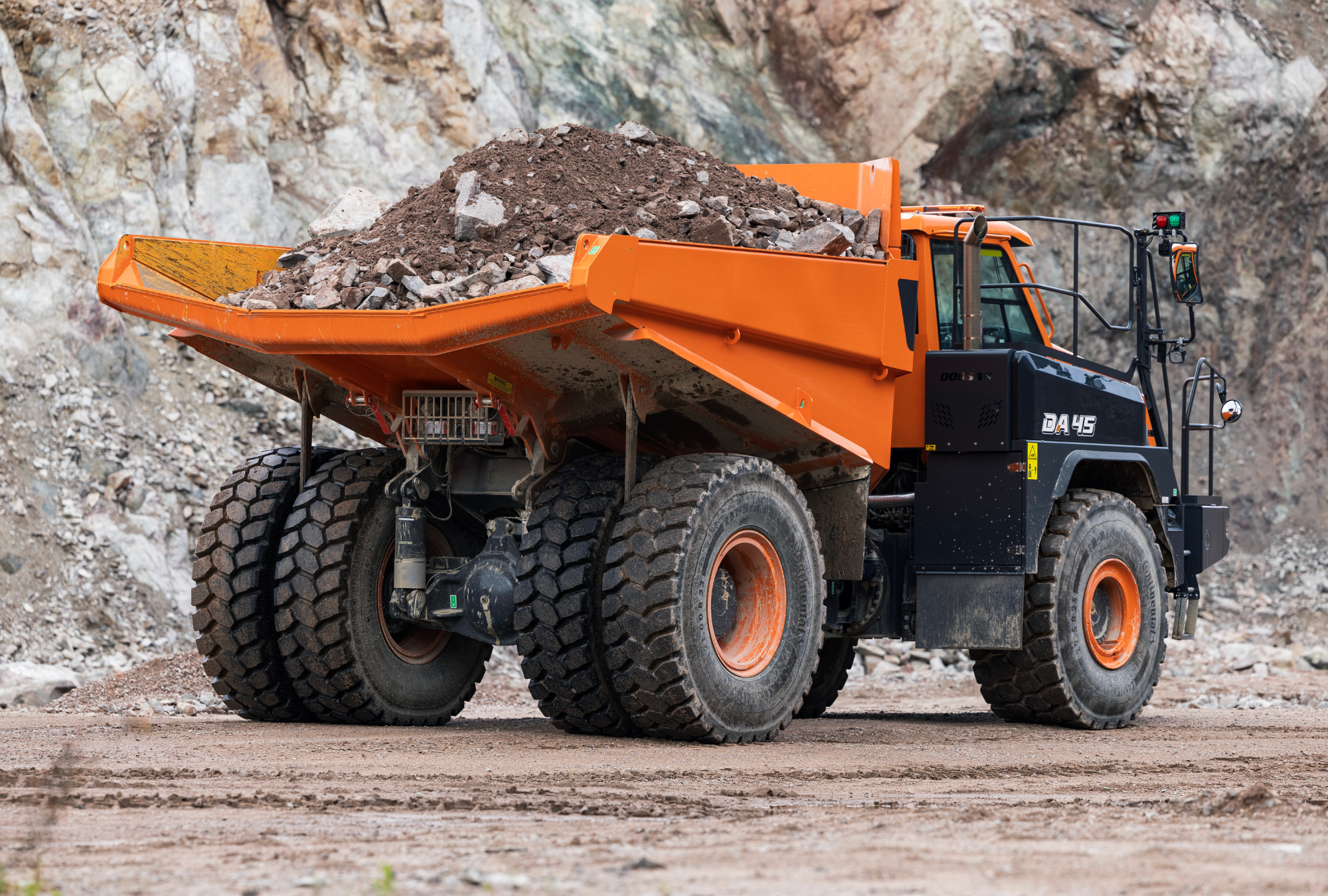

DA45-7 4X4

Engine

Scania DC 13

Gross torque

2.476 Nm @ 1.300 rpm

Transmission

ZF 8EP-420

DA45-7 4X4

Maximize Efficiency

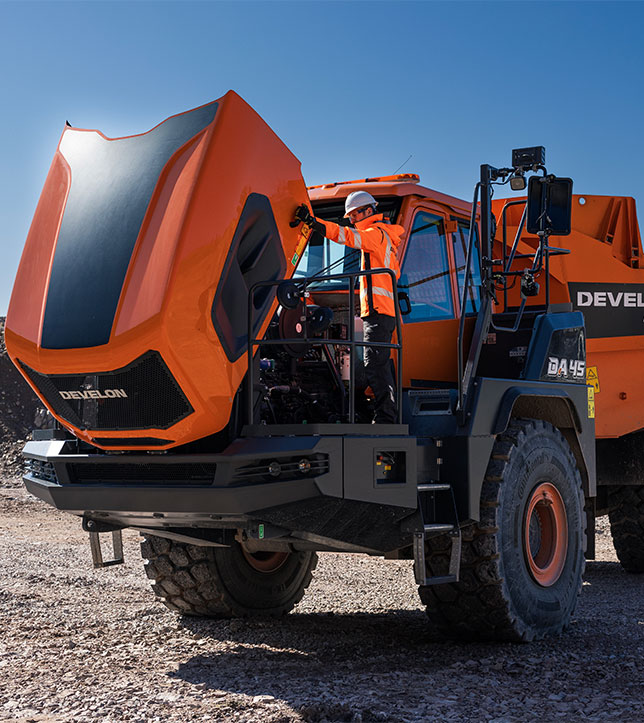

The Develon DA45 4X4 offers the best combination of payload and efficiency. Thanks to its unique design, excellent productivity is delivered in all working conditions.

More information

4x4 ADT technology offers outstanding performance capabilities in slippery and off -road conditions – for applications where you have longer haul distance, relatively good roads, high haul speed – conditions that are too easy for a 6x6 but too heavy for RDT. In the wet weather conditions in which rigid dump trucks are forced to stop, the 4x4 ADT delivers optimal operating performance. Two axles cause less damage to the terrain compared to the 6x6 configuration.

Specifications

Machine Specs

Engine Scania DC 13
Gross torque 2.476 Nm @ 1.300 rpm
Transmission ZF 8EP-420
Power to weight, empty 11.8 kW/t
Power to weight, loaded 5.0 kW/t
Max. travel speed forward (1 / 2 / 3 / 4 / 5 / 6 / 7 / 8) 6 - 9 - 12 - 17 - 24 - 34 - 48 - 55 km/h



Max. travel speed reverse (1 / 2 / 3 / 4 ) 6 - 9 - 12 - 17 km/h
Gross power 360 kW @ 2.100 RPM
Body volume (SAE 2:1) without tailgate 25.7 m³
Maximum payload 41 t
Net weight (SAE 2:1) 30.500 kg

DA45-7 4X4
