Maximum power

115 HP

Operating weight

14.400 kg


0.51 m³


Boost your productivity

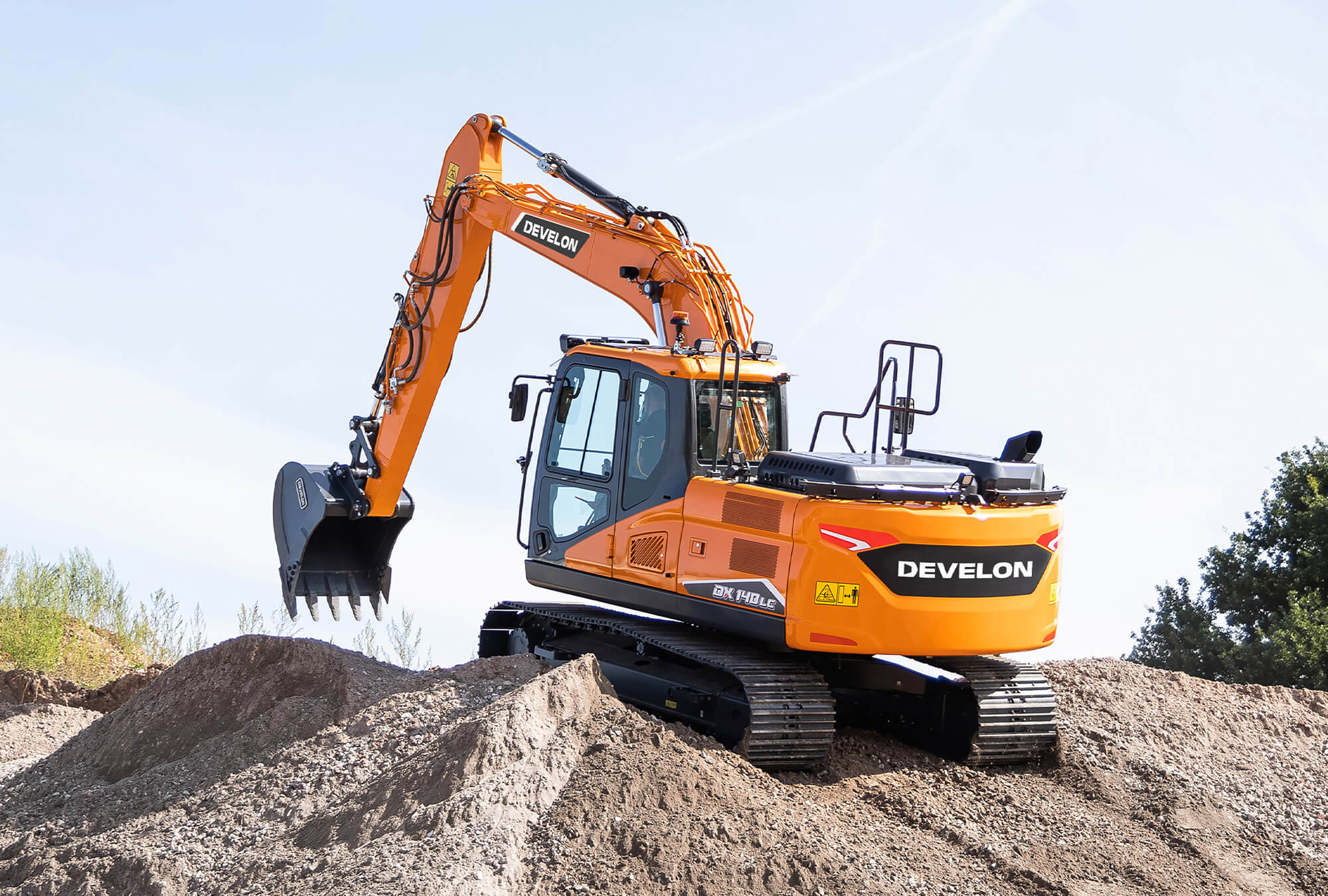

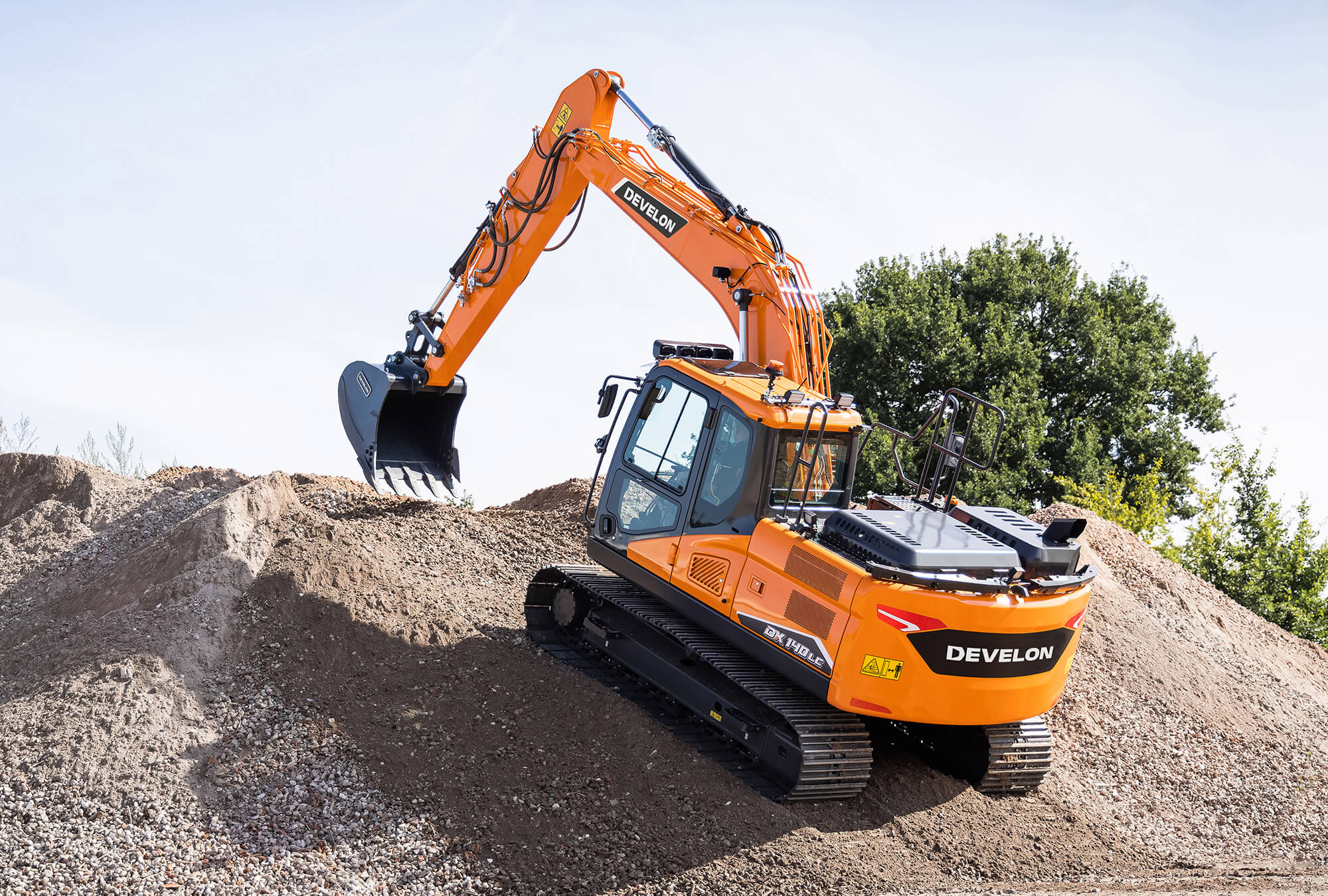

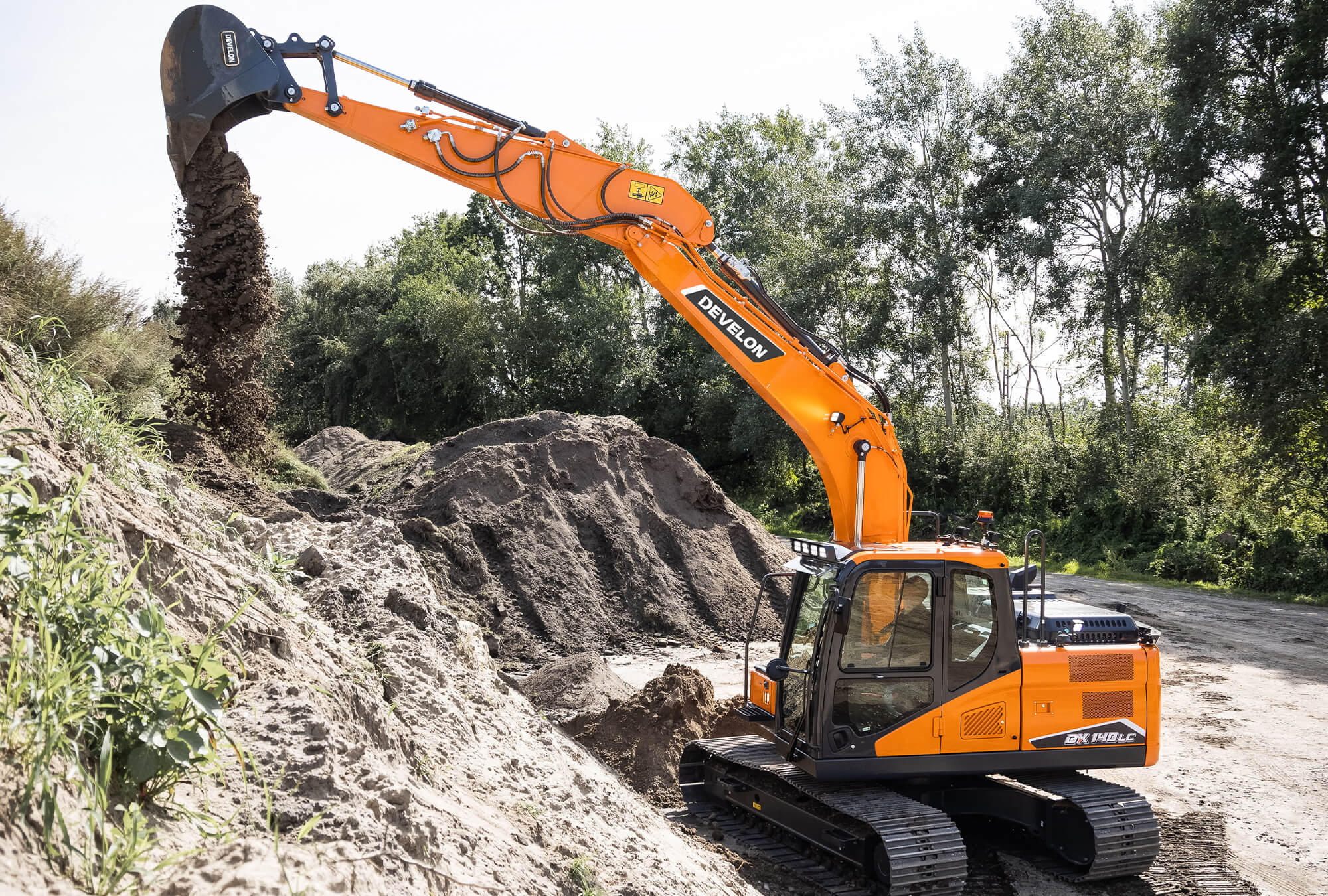

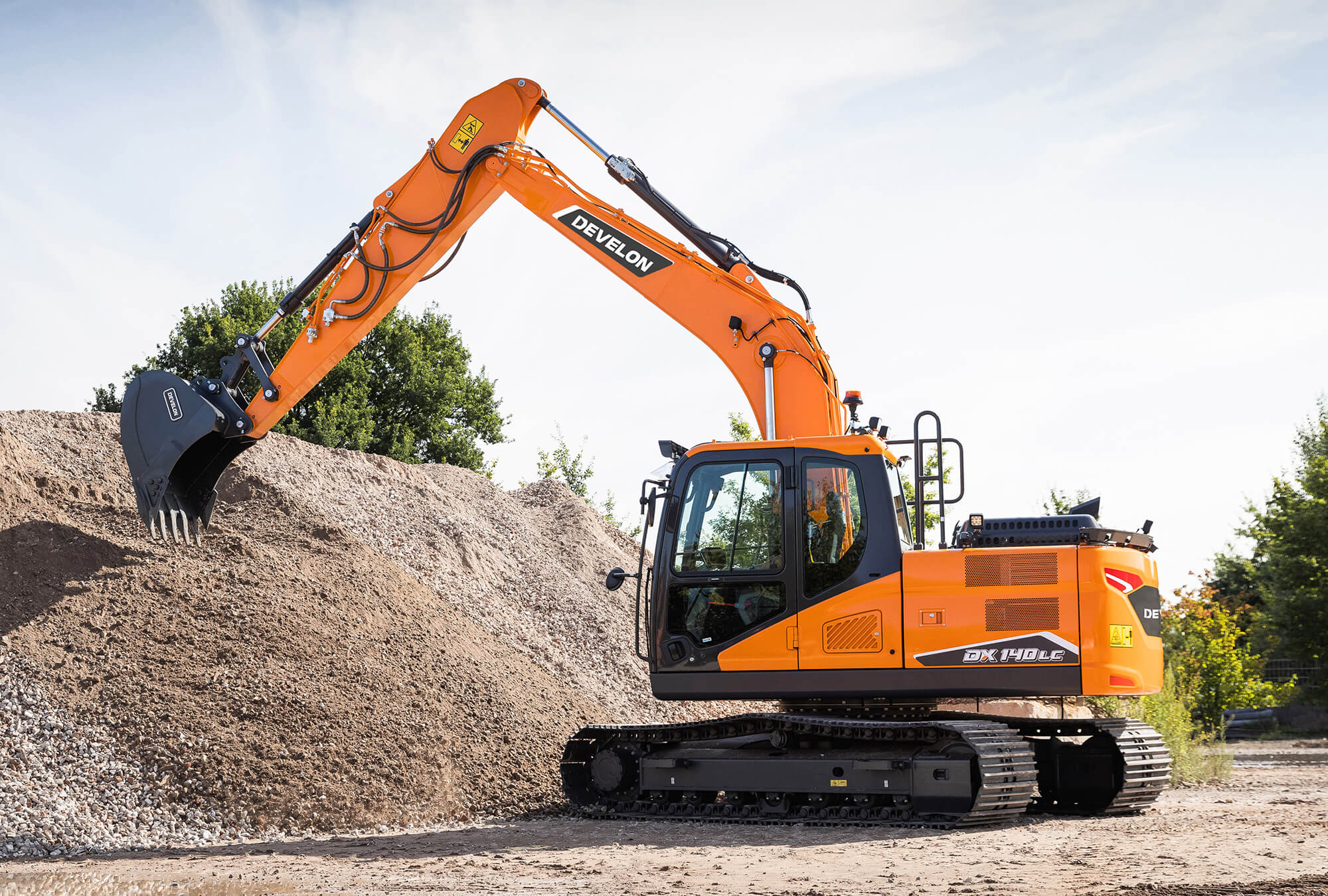

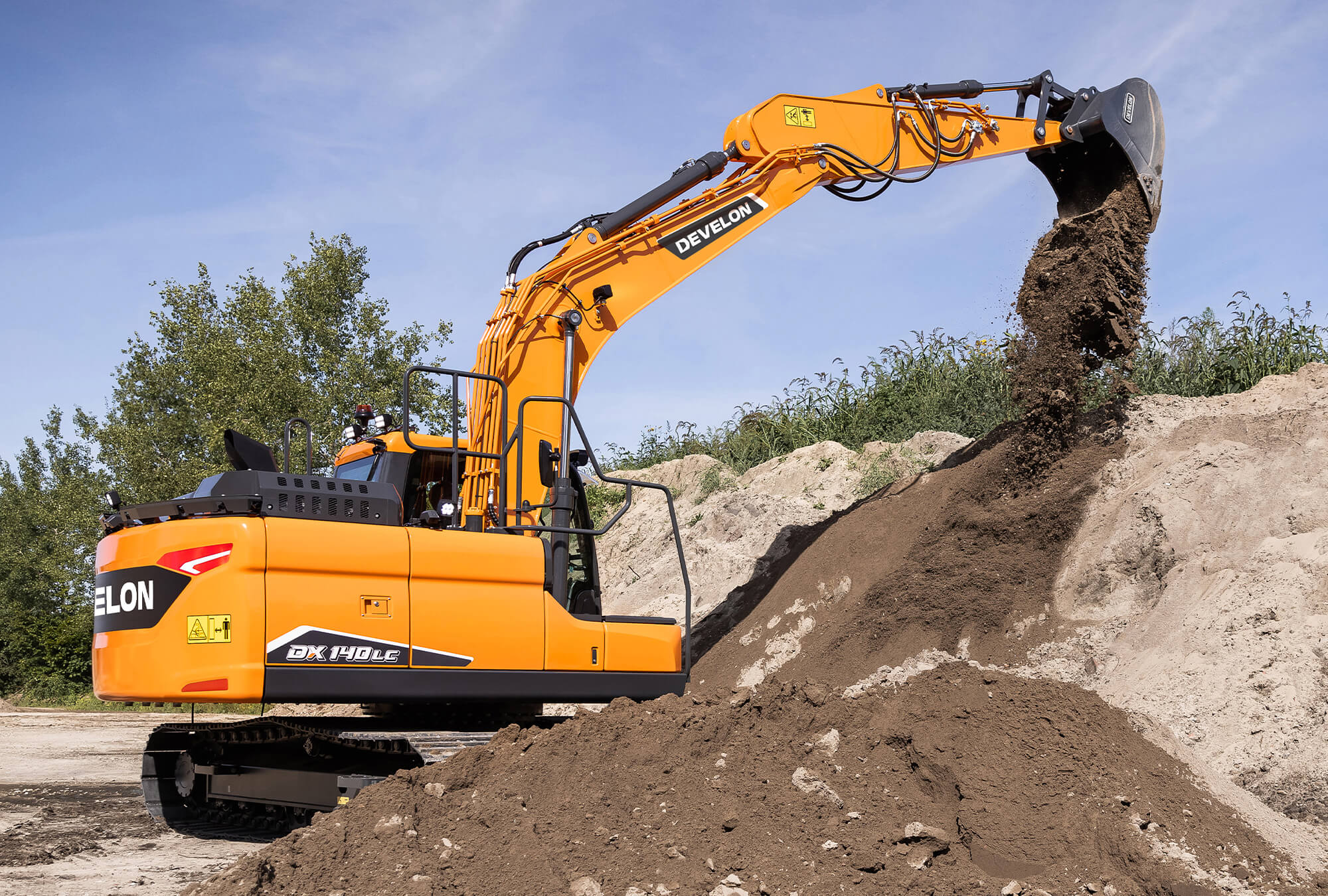

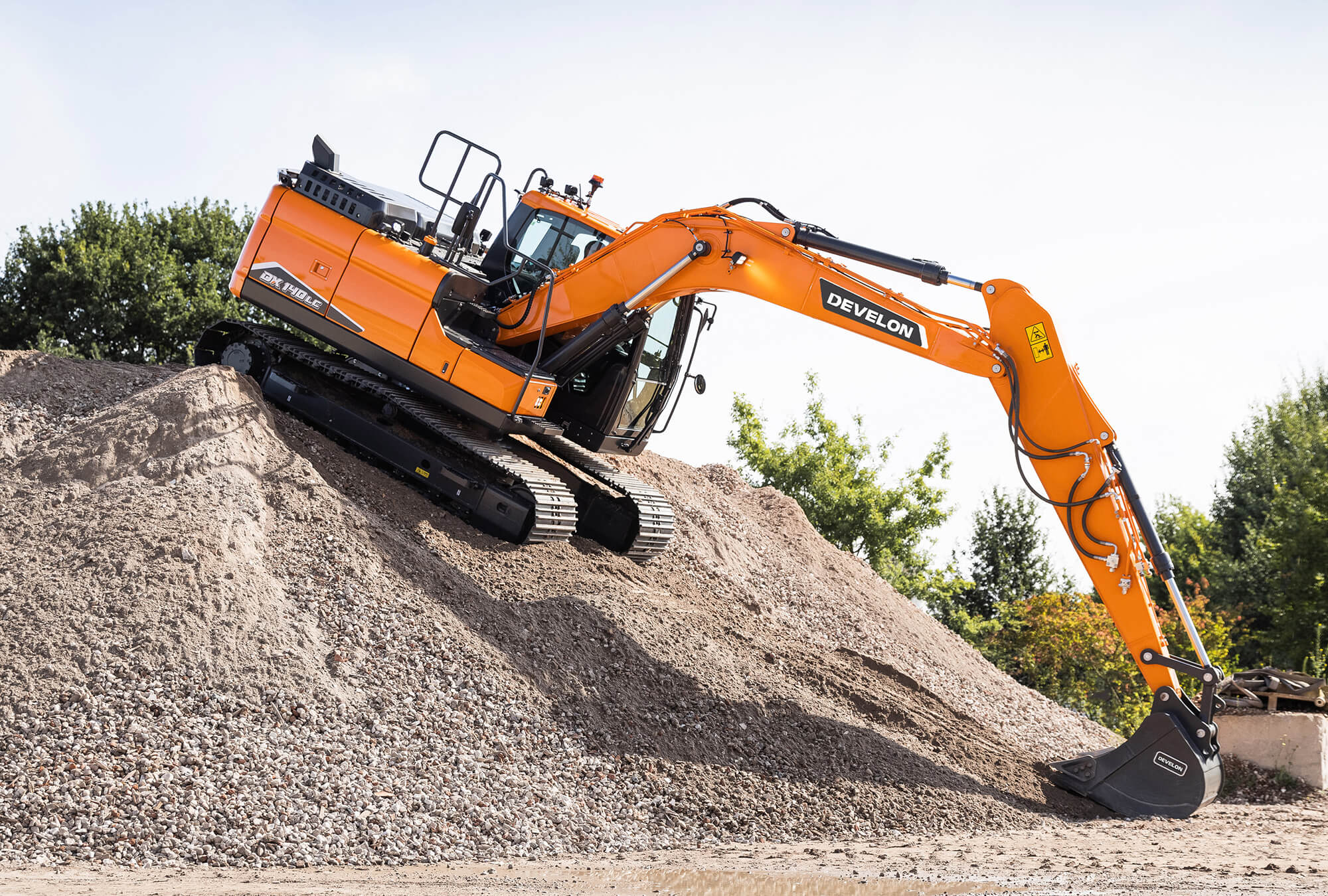

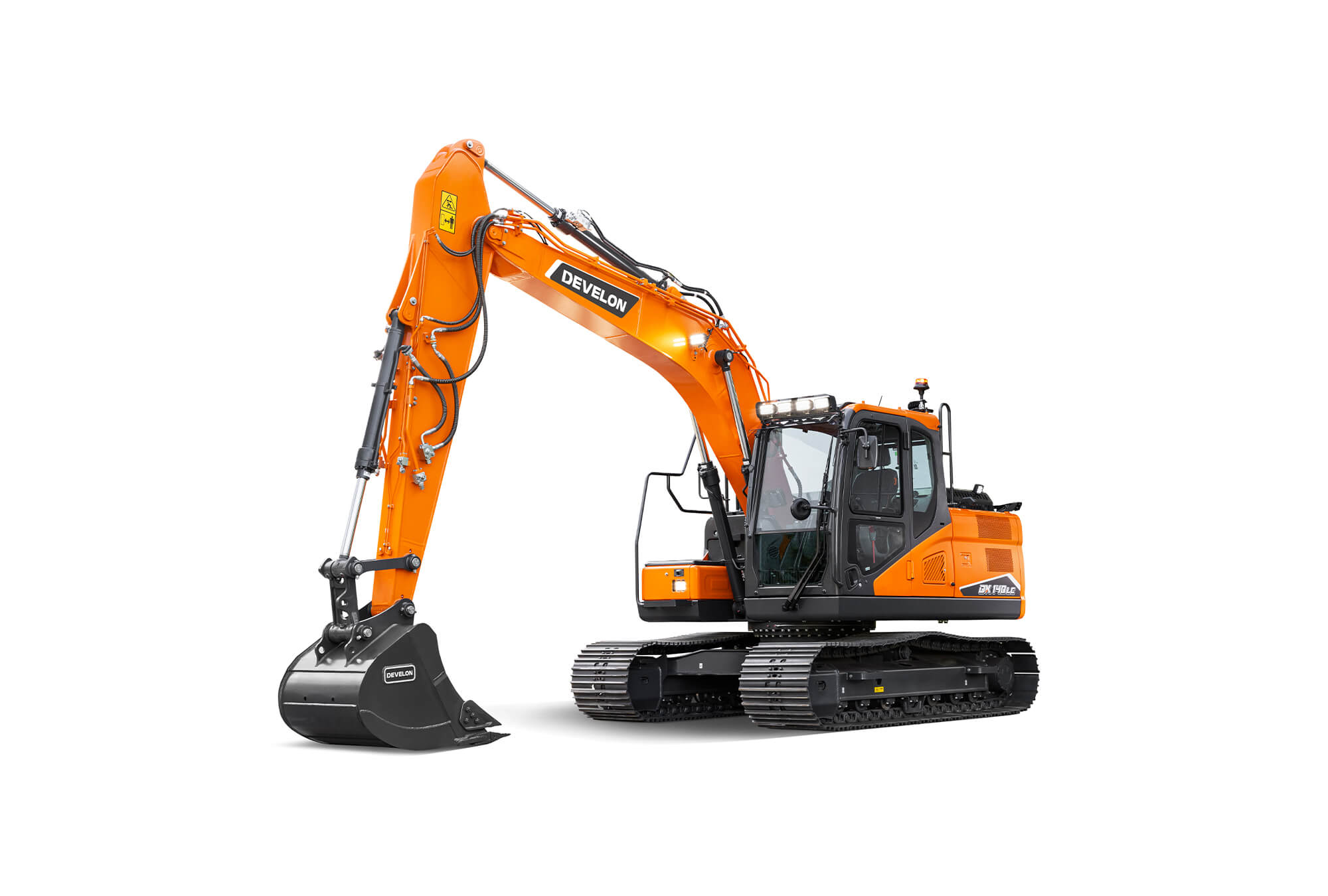

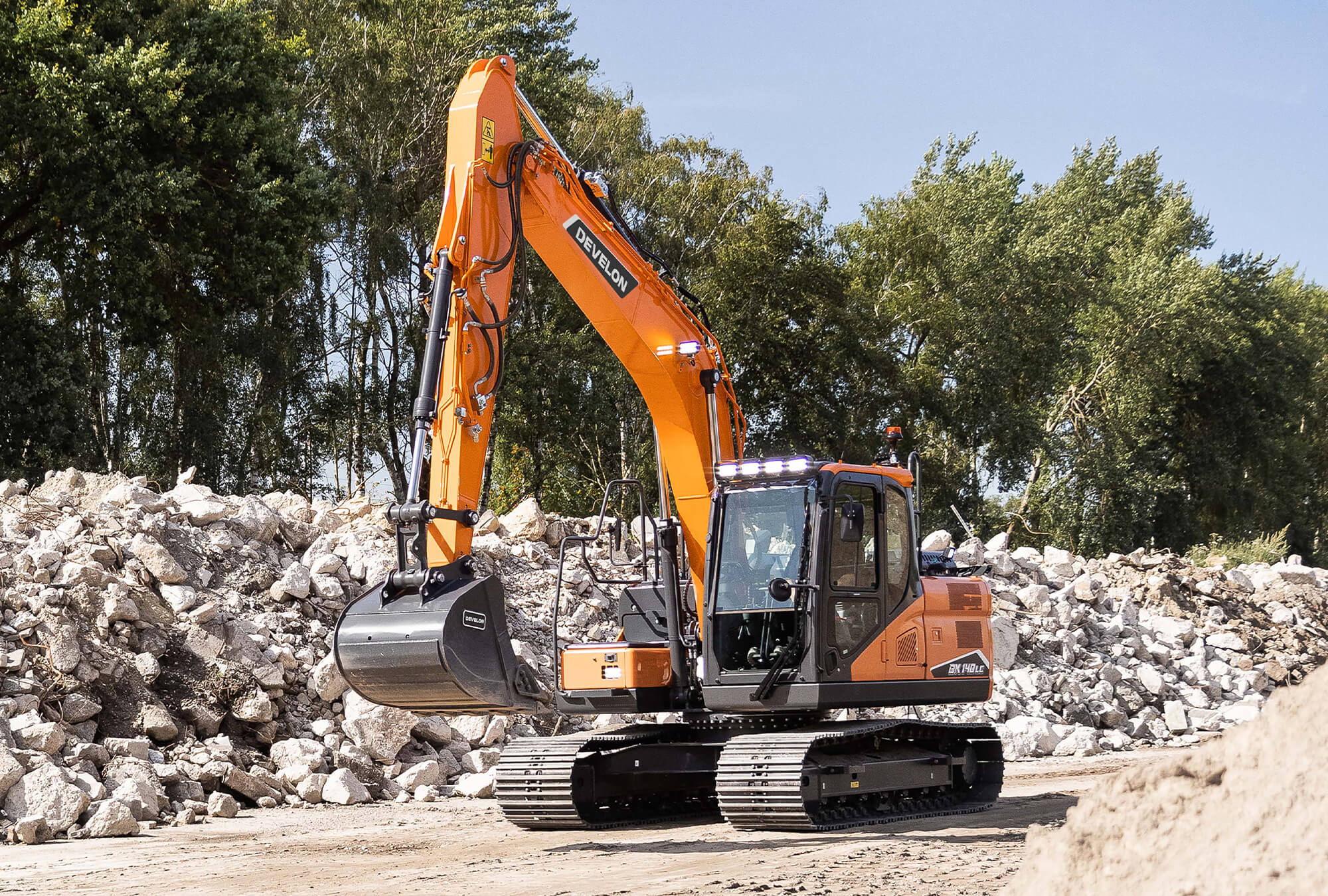

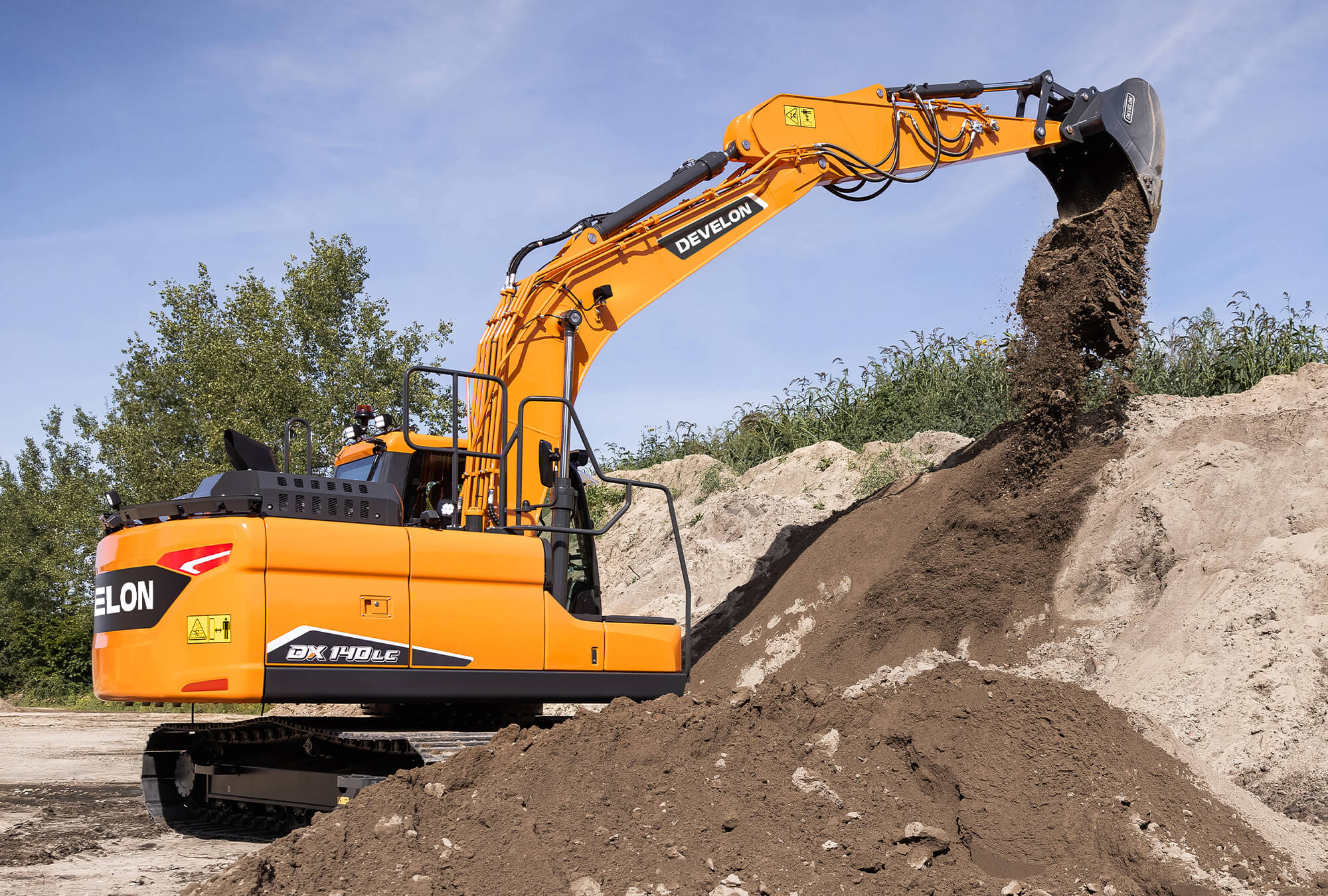

The new DX140LC-7 14.6 tonne and DX140LCR-7 15.9 tonne crawler models. Both excavators are now powered by the Develon D34 4-cylinder Stage V diesel engine providing 87.2 kW (117 HP) of power at 2000 RPM

The D34 engine offers a new solution to exceed Stage V regulations without exhaust gas recirculation (EGR), that boosts the quantity of air available during combustion, increasing the temperature of the process and greatly reducing the amount of particulates produced. The enhanced fuel efficiency of the D34 engine in combination with a new hydraulic main valve and the new generation SPC3 Smart Power Controls, provides increased fuel saving compared to the previous generation machines.

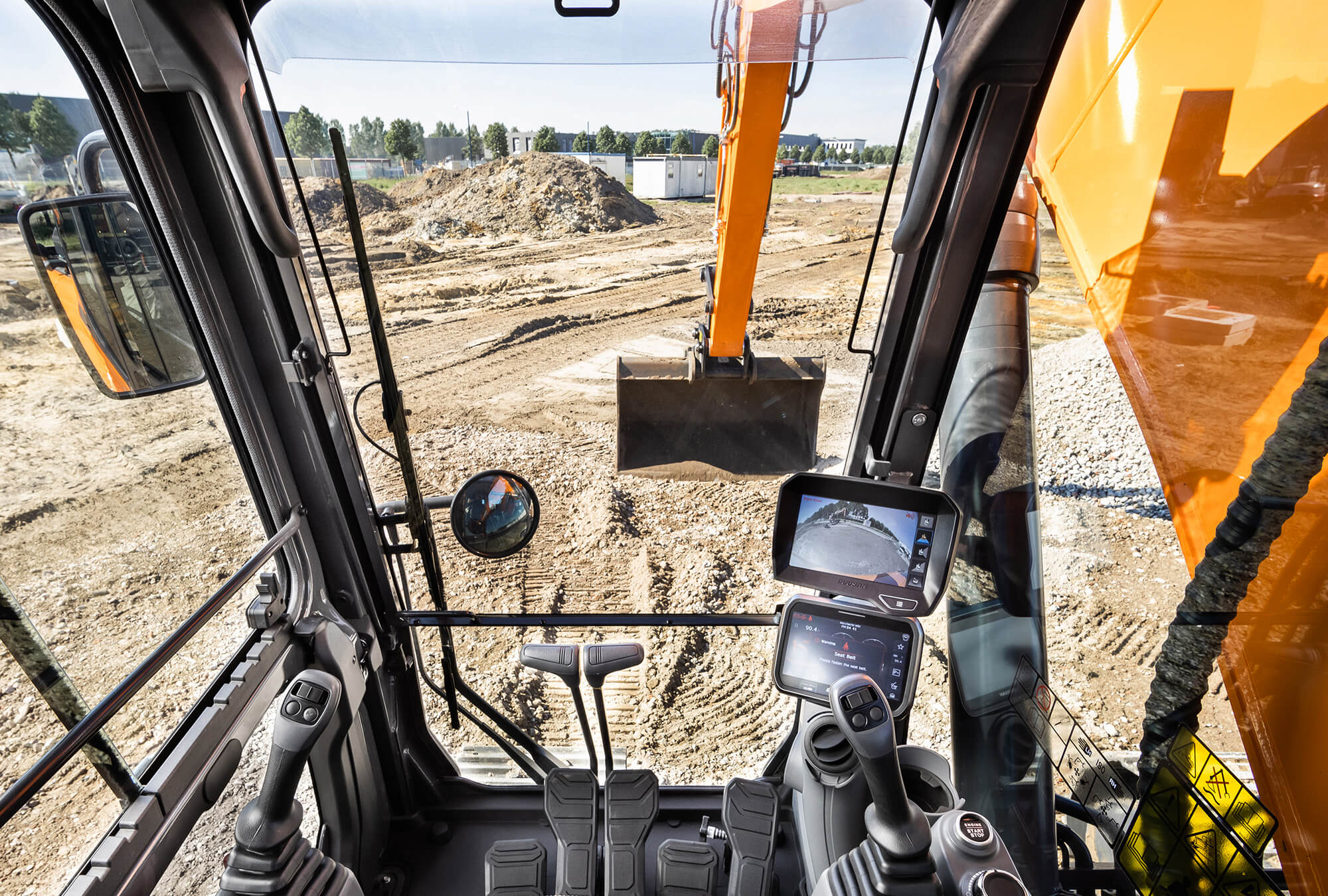

Both new models combine enhanced comfort and controllability together with a range of features to boost fuel efficiency, uptime and return on investment, with a focus on increased power, productivity, robustness and agility. In addition, the DX140LCR-7 is a reduced tail swing model, allowing operators greater flexibility where space is a premium without sacrificing performance. The DX140LCR-7 also has a new counterweight design that offers enhanced service accessibility.


Machine Specs

Maximum power 115 HP
Operating weight 14.400 kg
Buckets 0.51 m³
Emission standard Stage V
Engine Develon G2 D34
Engine power 86 kW / 115 HP @ 1800 RPM


Main pumps max flow 2 × 114 l/min
Maximum swing speed 10.13 rpm
Maximum swing torque 4888 kgf·m
Travel speed (low - high) 2.9 - 4.7 km/h
Maximum traction 15.200 kg
Maximum gradeability 35° / 70%
