DX230WMH-7
DX230WMH-7

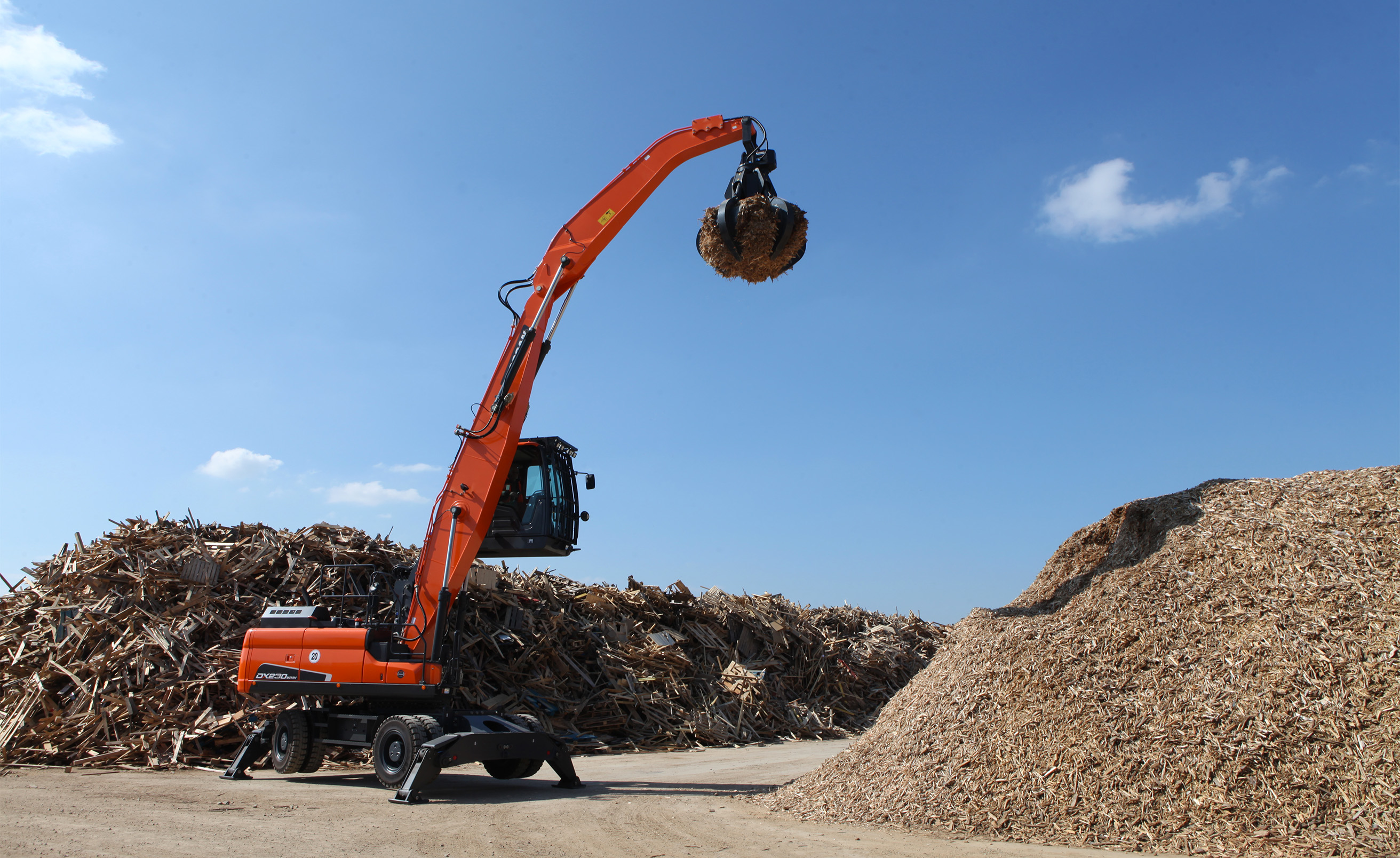

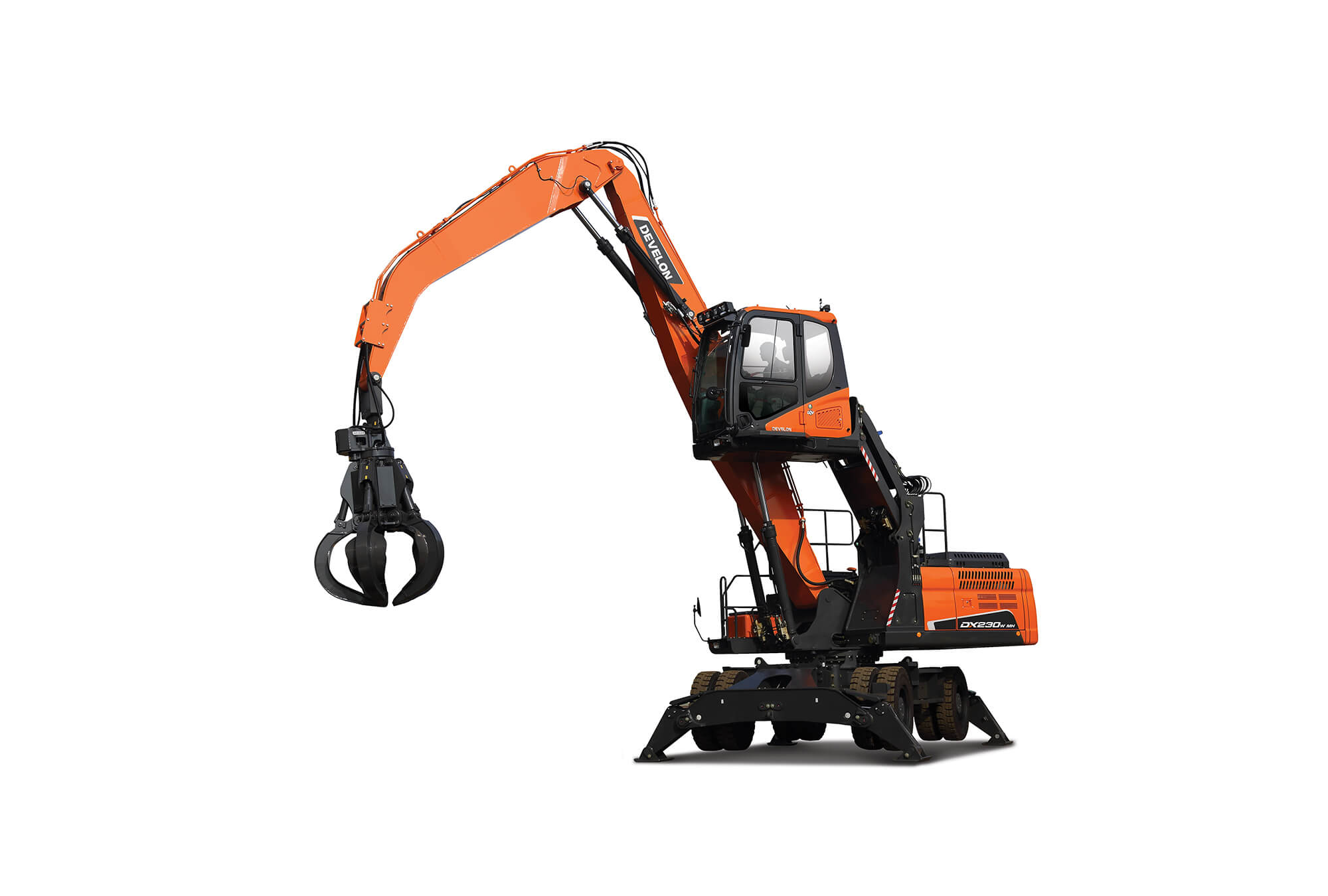

The new DX230WMH-7 is 23-ton Stage V compliant material handler for use in the solid waste, recycling, demolition and forestry industries.
The DX230WMH-7 has two arm cylinders for extra balance and a more stable arm to lessen movement in attachments such as grapples. The maximum pin height is 11.7 m, the maximum operating reach is 10.1 m and the maximum working depth is 4.2 m.
Another special feature is the elevating cab, which provides excellent visibility and high flexibility. Easily accessed from ground level, the cab height can be adjusted by the operator to a maximum of 2.5 m for better visibility during operation. The operator can adjust the elevating cab from their position inside the cab, with an emergency lowering lever installed at the rear of the seat in the cab.
Find a Dealer
Machine Specs
| Operating weight | 24017/24317 kg (Gooseneck Arm/Straight Arm) |
| Travel speed | 4 - 9 - 20 km/h |
| Engine model | Develon DL06V |
| Power (SAE J1995) | 189HP/141kW @1900rpm |
| Emission standard | StageV |
| Max. Pin height | 11400/11600 mm (Gooseneck Arm/Straight Arm) |
| Max. Operation reach | 10000/10000 mm (Gooseneck Arm/Straight Arm) |
| Max. Working depth | 4300/4000 mm (Gooseneck Arm/Straight Arm) |
| Boom Length | 6100/6100 mm (Gooseneck Arm/Straight Arm) |
| Arm Length | 4200/4000 mm (Gooseneck Arm/Straight Arm) |
| Min. Swing radius | 2700 mm |
| Elevating height | 2500 mm |
