Maximum power

115 HP

Operating weight

15.600 kg


0.51 m³


Boost your productivity

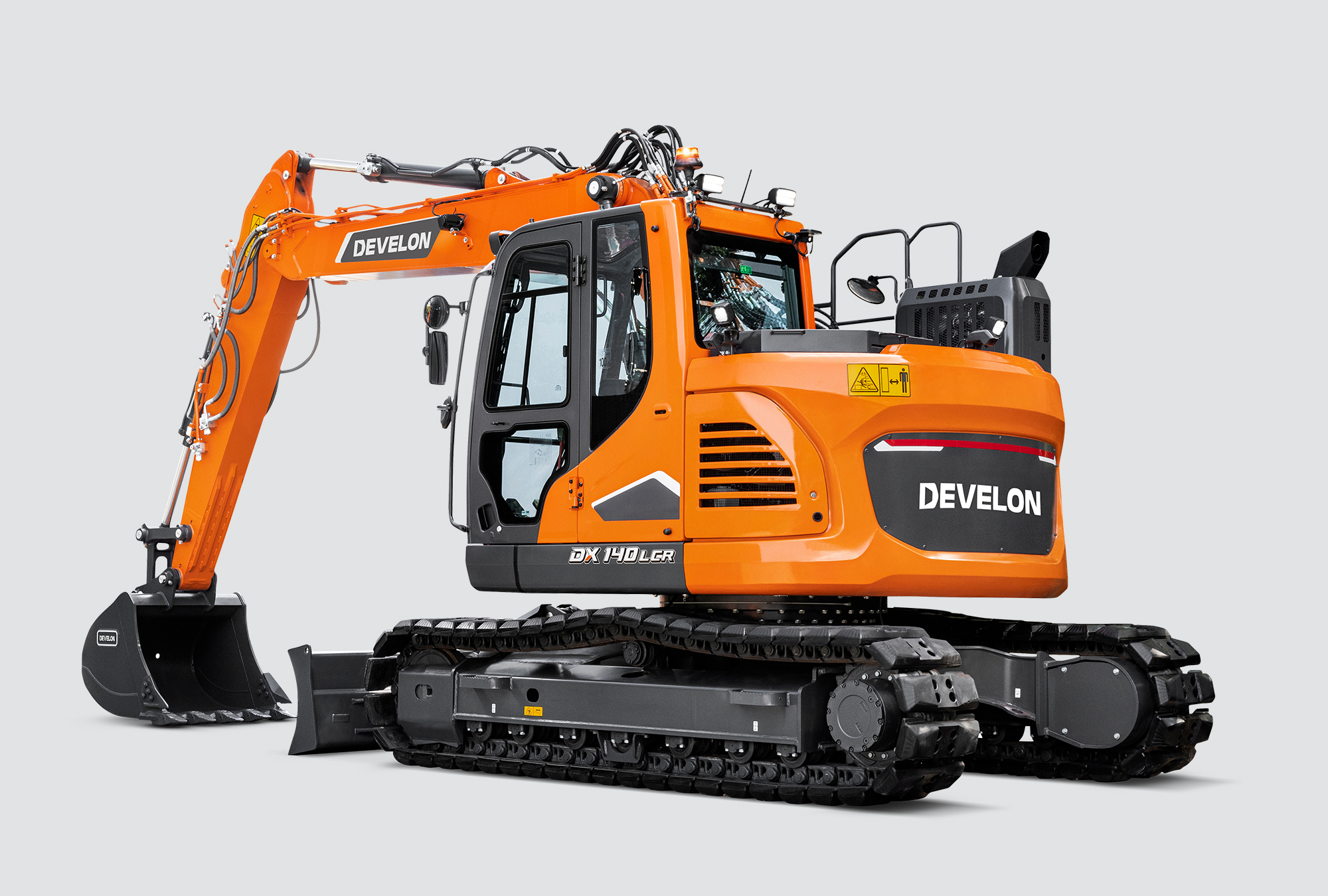

Lift your business to the next level with the DX140LCR-7 Develon excavator. The DX140LCR-7 offers the best equilibrium possible between reduced swing radius and stability. One of the shortest swing radiuses in the market with the stability of a conventional excavator.

The D34 engine offers a new solution to exceed Stage V regulations without exhaust gas recirculation (EGR), that boosts the quantity of air available during combustion, increasing the temperature of the process and greatly reducing the amount of particulates produced. The enhanced fuel efficiency of the D34 engine in combination with a new hydraulic main valve and the new generation SPC3 Smart Power Controls, provides increased fuel saving compared to the previous generation machines.

Model combines enhanced comfort and controllability together with a range of features to boost fuel efficiency, uptime and return on investment, with a focus on increased power, productivity, robustness and agility. In addition, the DX140LCR-7 is a reduced tail swing model, allowing operators greater flexibility where space is a premium without sacrificing performance. The DX140LCR-7 also has a new counterweight design that offers enhanced service accessibility.


Machine Specs

Maximum power 115 HP
Operating weight 15.600 kg
Buckets 0.51 m³
Emission standard Stage V
Engine Develon G2 D34
Engine power 86 kW / 115 HP @ 2000 RPM


Main pumps max flow 2 × 114 l/min
Maximum swing speed 10.13 rpm
Maximum swing torque 4888 kgf·m
Travel speed (low - high) 2.9 - 4.7 km/h
Maximum traction 15.200 kg
Maximum gradeability 35° / 70%
