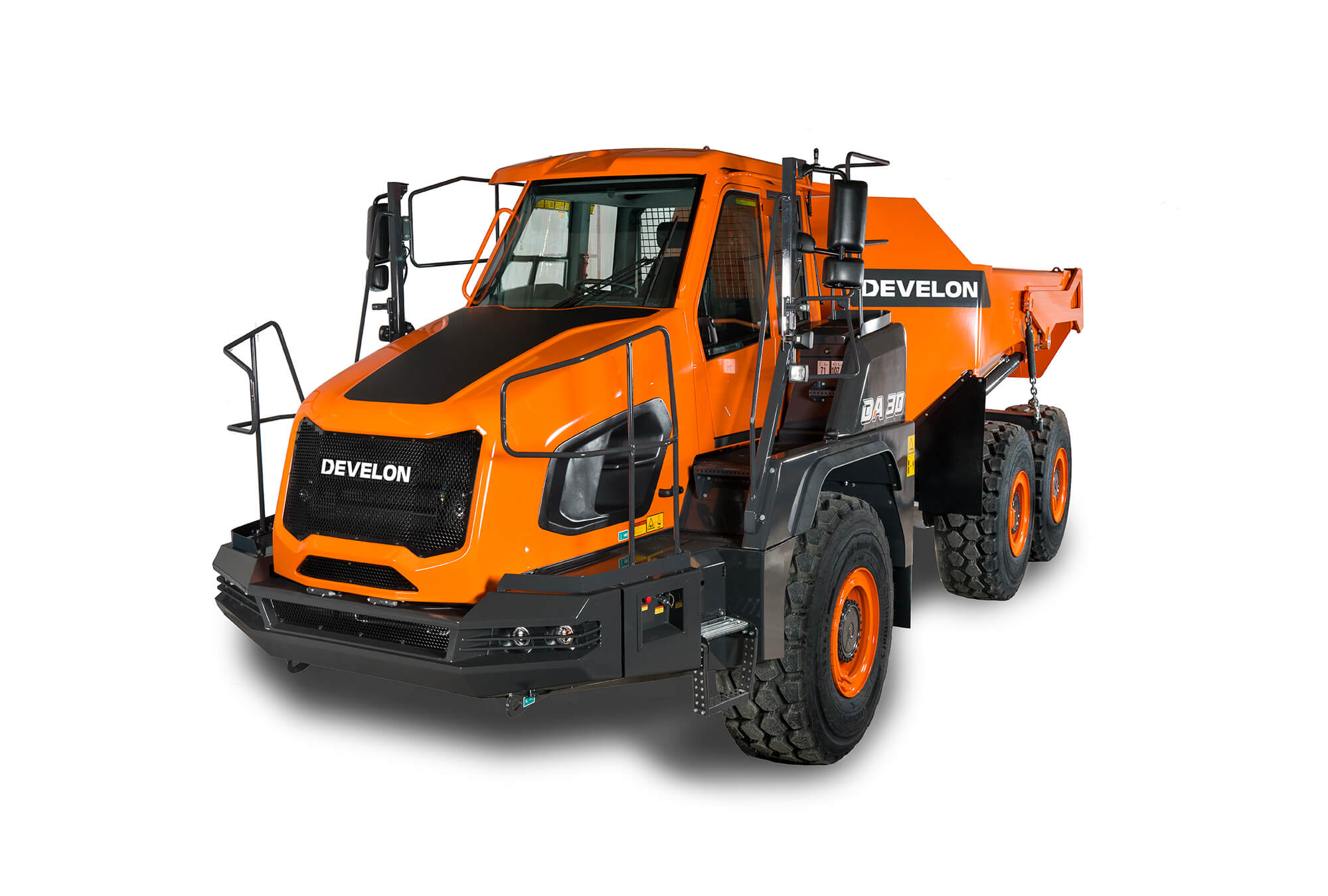

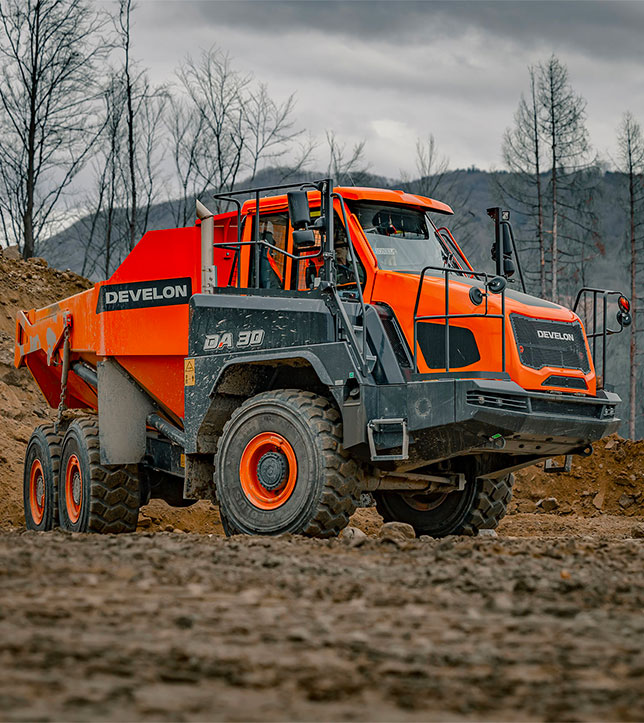

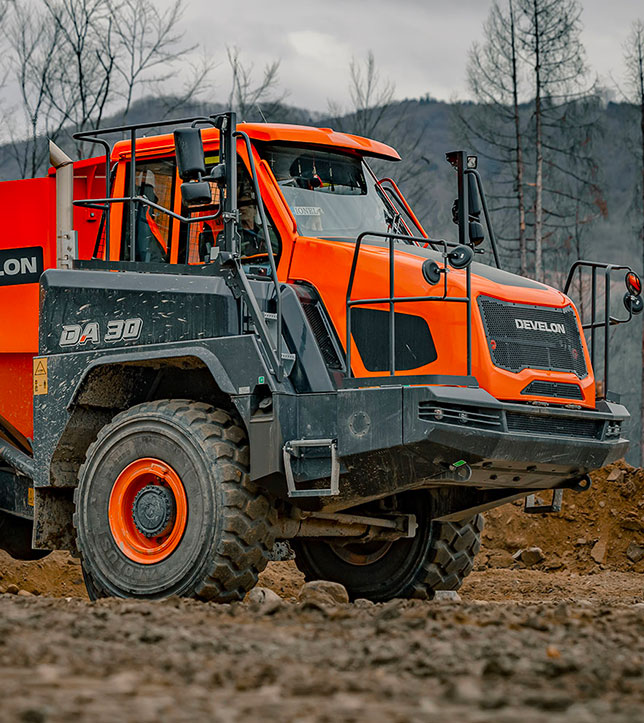

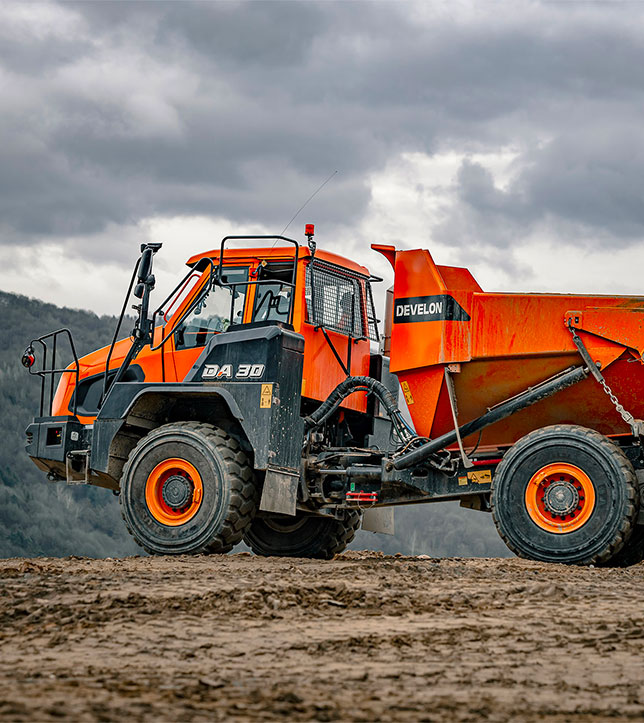

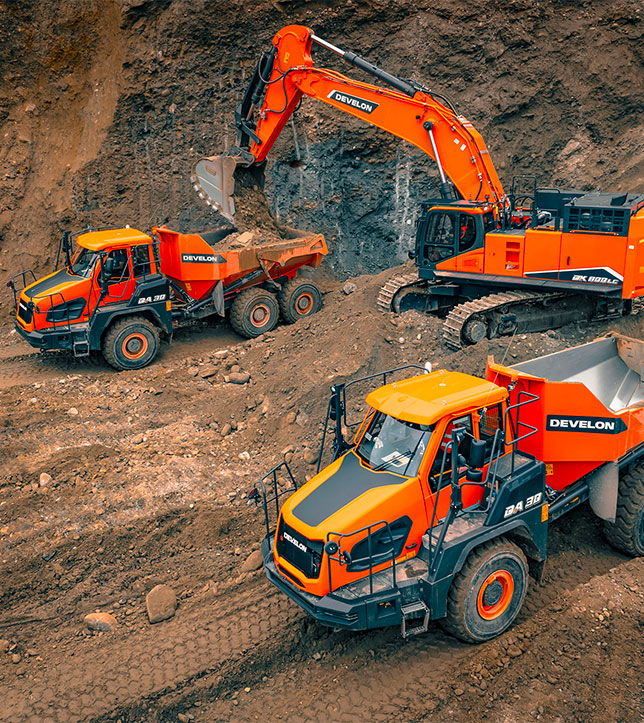

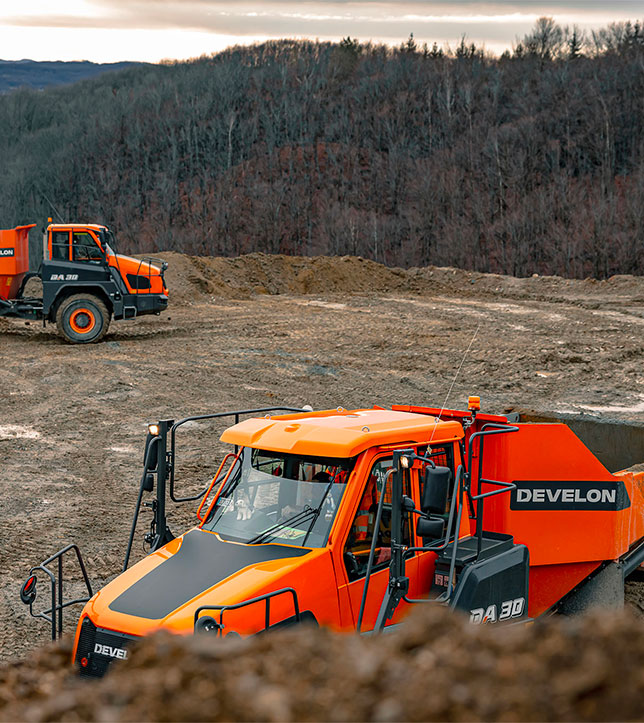

DA30-7

The DA30 offers best-in-class ground clearance & ground bearing pressure. Combined with superior torque at low engine RPM, and superior power and traction, we offer you the best productivity.


Scania DC 09 engine: 276 kW (370 HP) at 2100 rpm. Unique design of rear frame, body, and front-mounted differential on transmission make the Develon machine the most compact ADT in its class, which results in smallest turning radius and outstanding stability.
Download Brochure Find a Dealer

Machine Specs

Engine Scania DC 09
Transmission ZF 8 EP320
Configuration 5 in line cyl / 9.3 l
Gross power 375HP (276 kW) @ 2.100 RPM
Net power 362HP (270 kW) @ 2.100 RPM
Gross torque 1873 Nm @ 1.300 RPM
Body volume (SAE 2:1) without tailgate 16.8 m³
Power to weight, empty 11.9 kW/t
Power to weight, loaded 5.04 kW/t
Max. travel speed forward (1 / 2 / 3 / 4 / 5 / 6 / 7 / 8) 6 / 8 / 11 / 16 / 23 / 32 / 45 / 55 km/h
Total lenght 9534 mm
Width 3208 mm
Maximum payload 28 t
Net weight (SAE 2:1) 23.100 kg
