DL200-7

Bucket capacity

2.0 m³

Tipping load

10.124 kg

Static tipping load, at 40°

8.933 kg

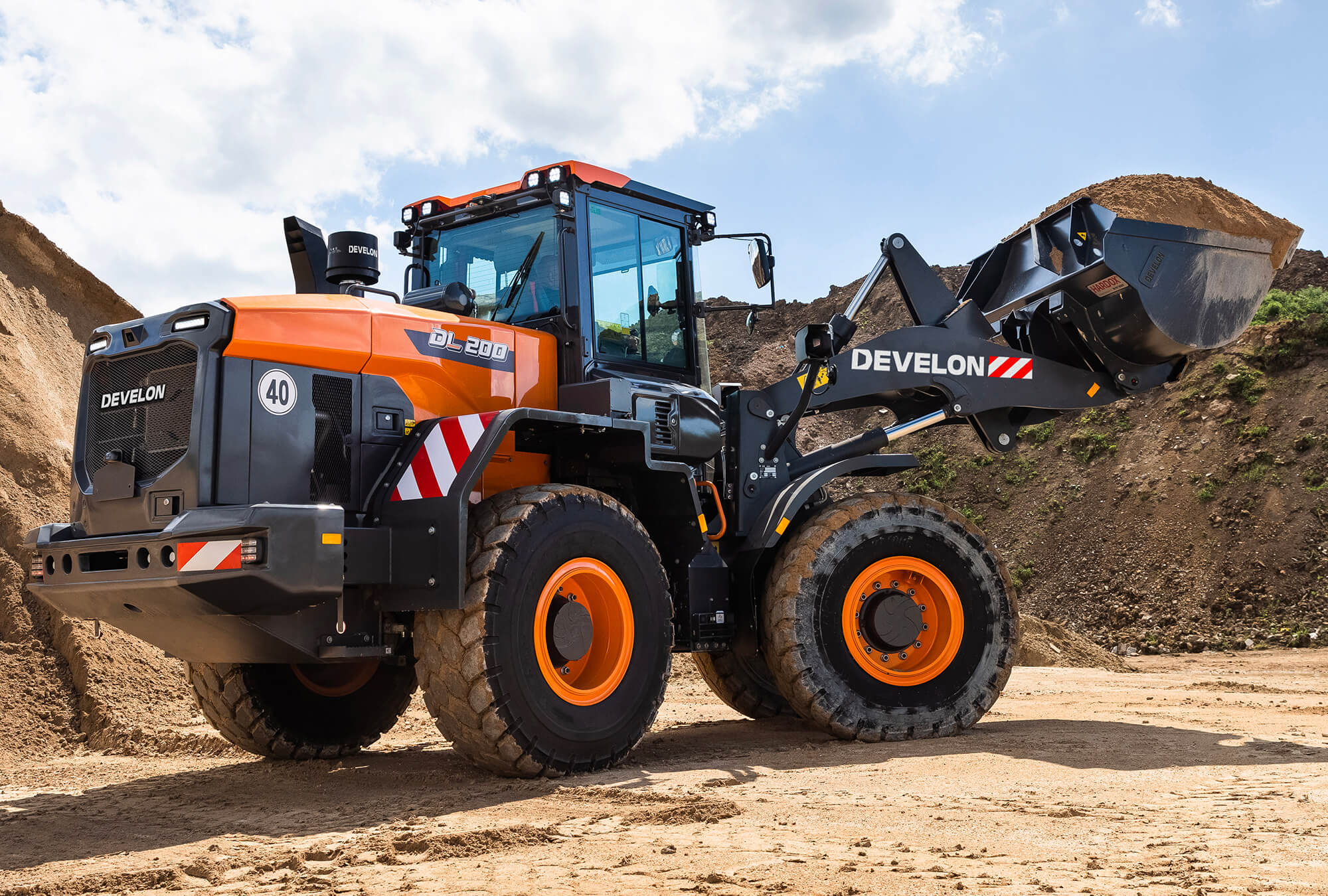

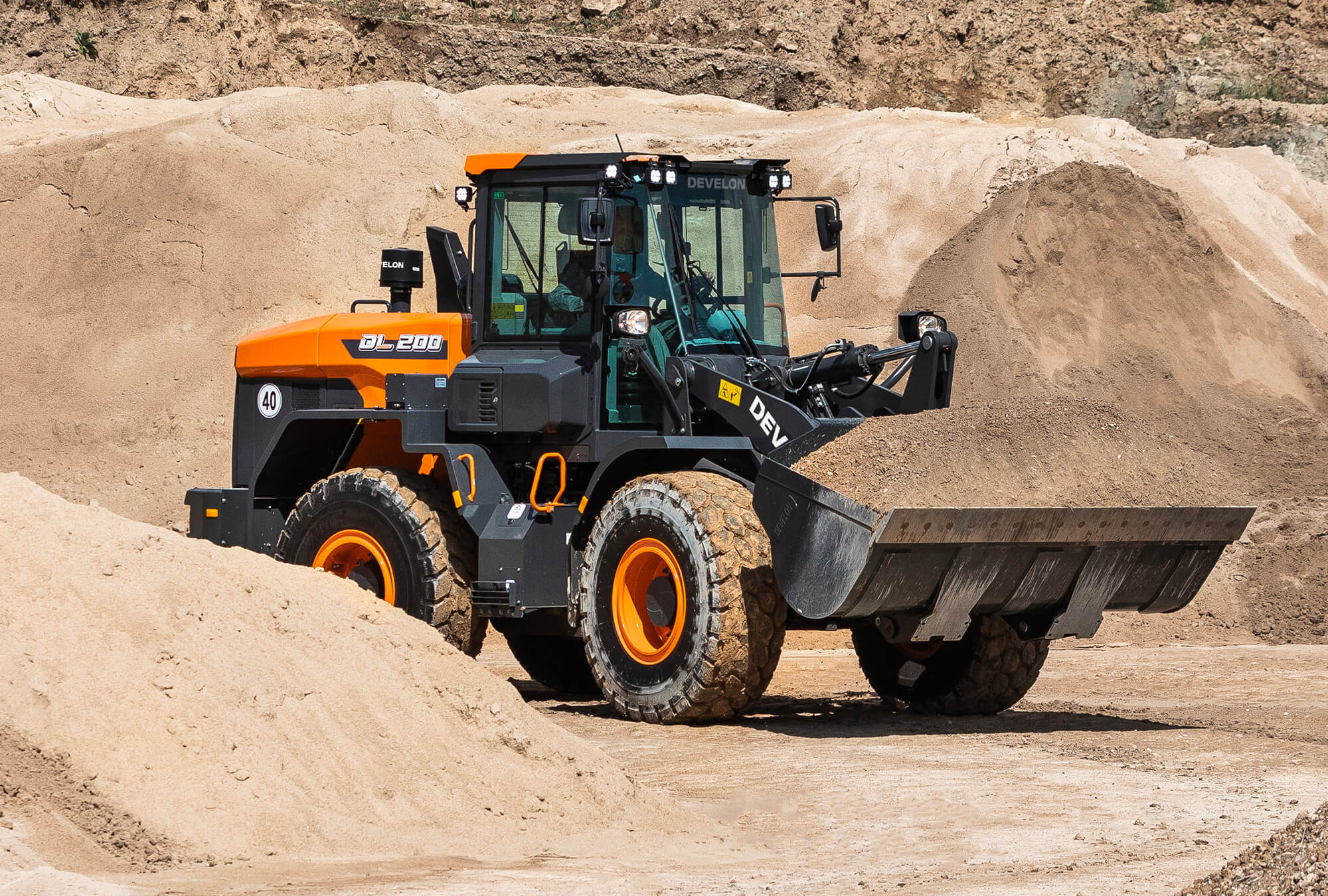

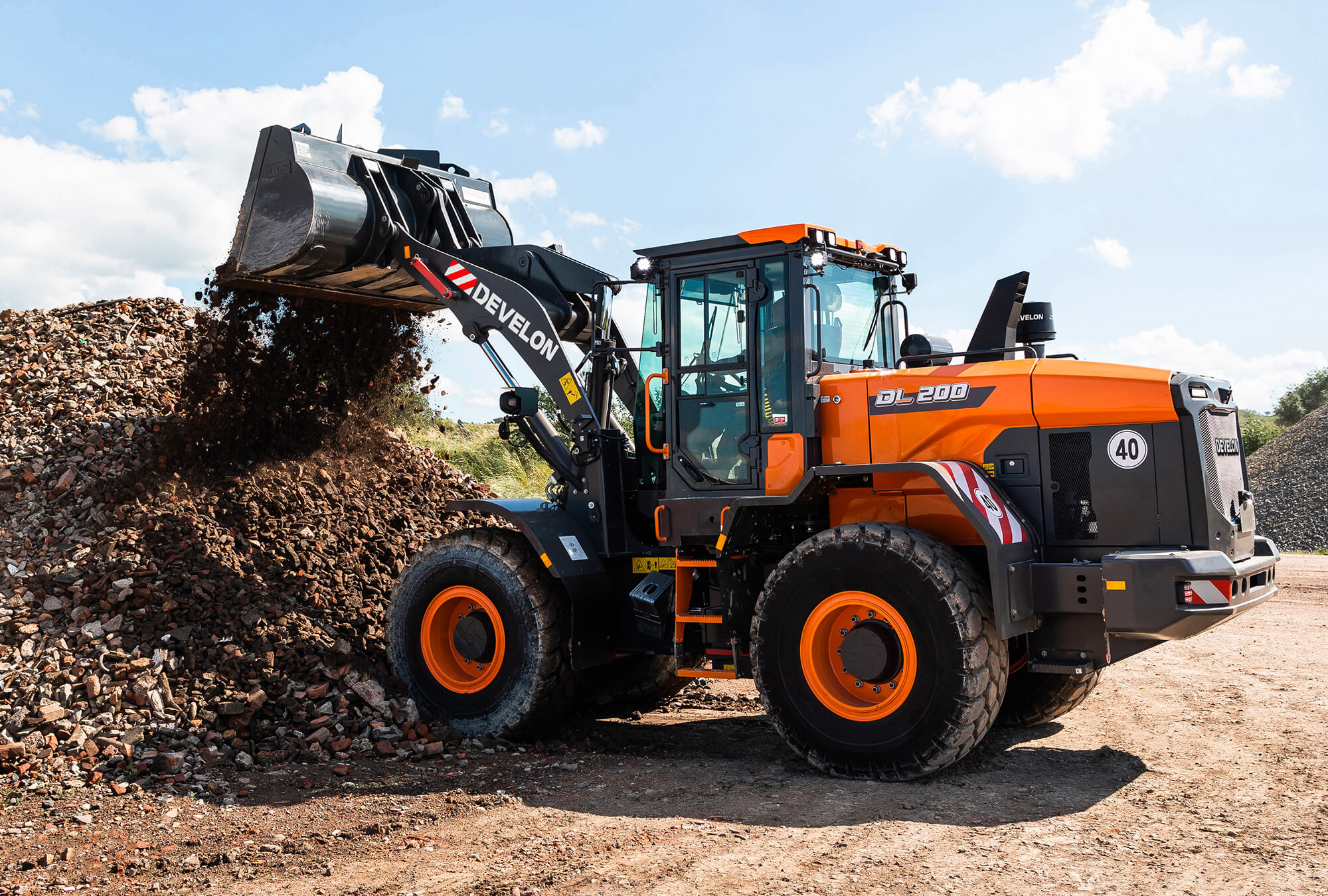

DL200-7

Boost your productivity

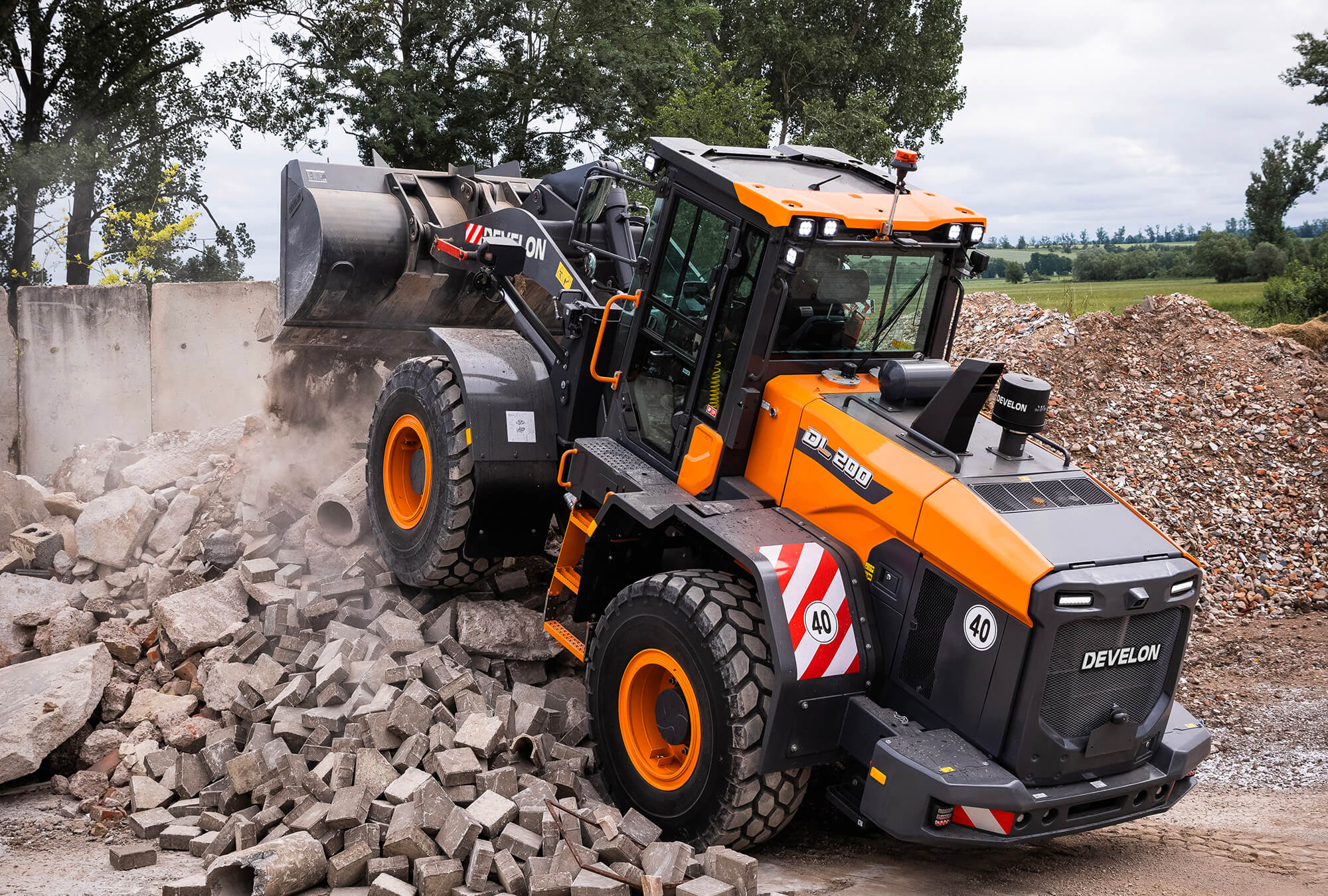

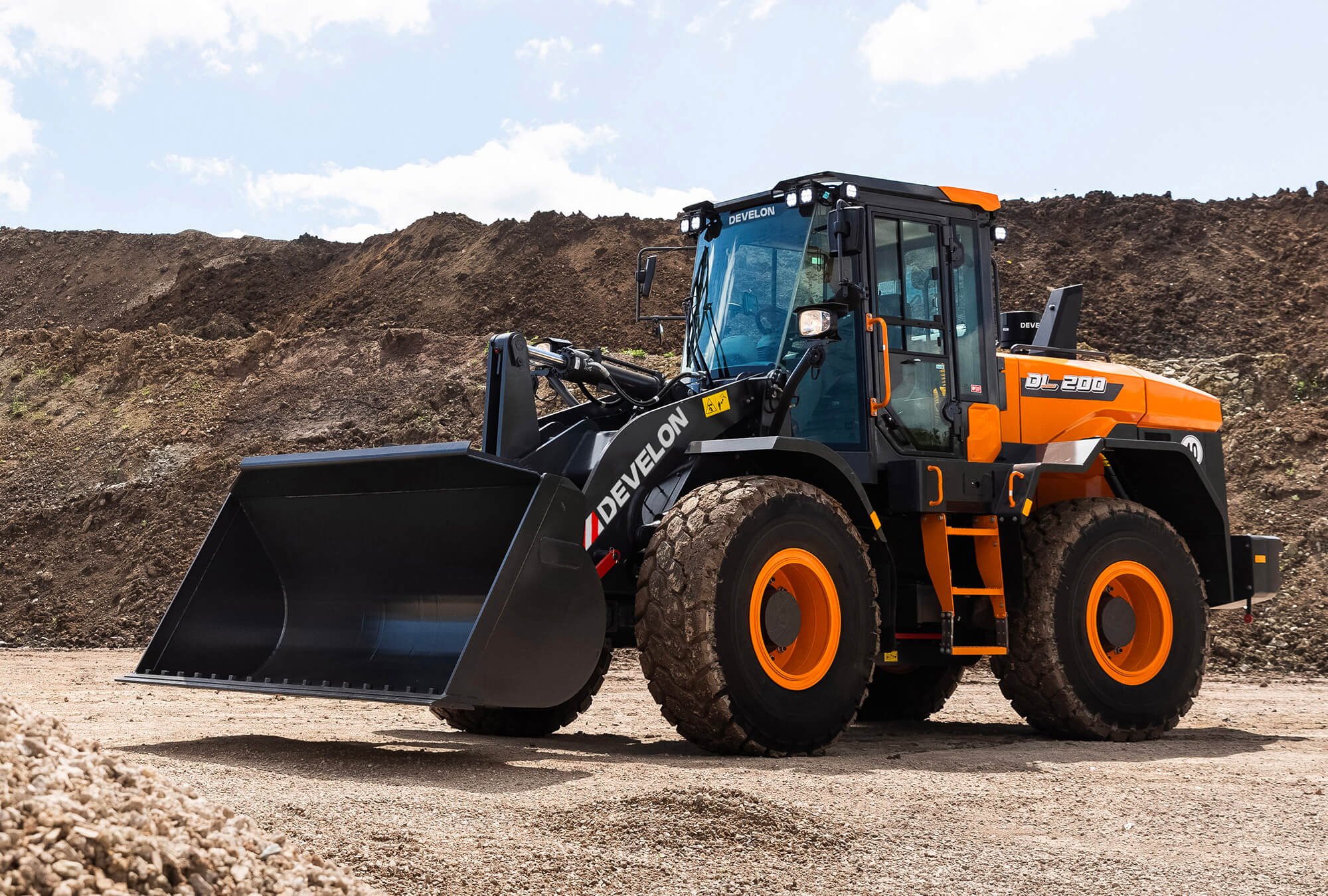

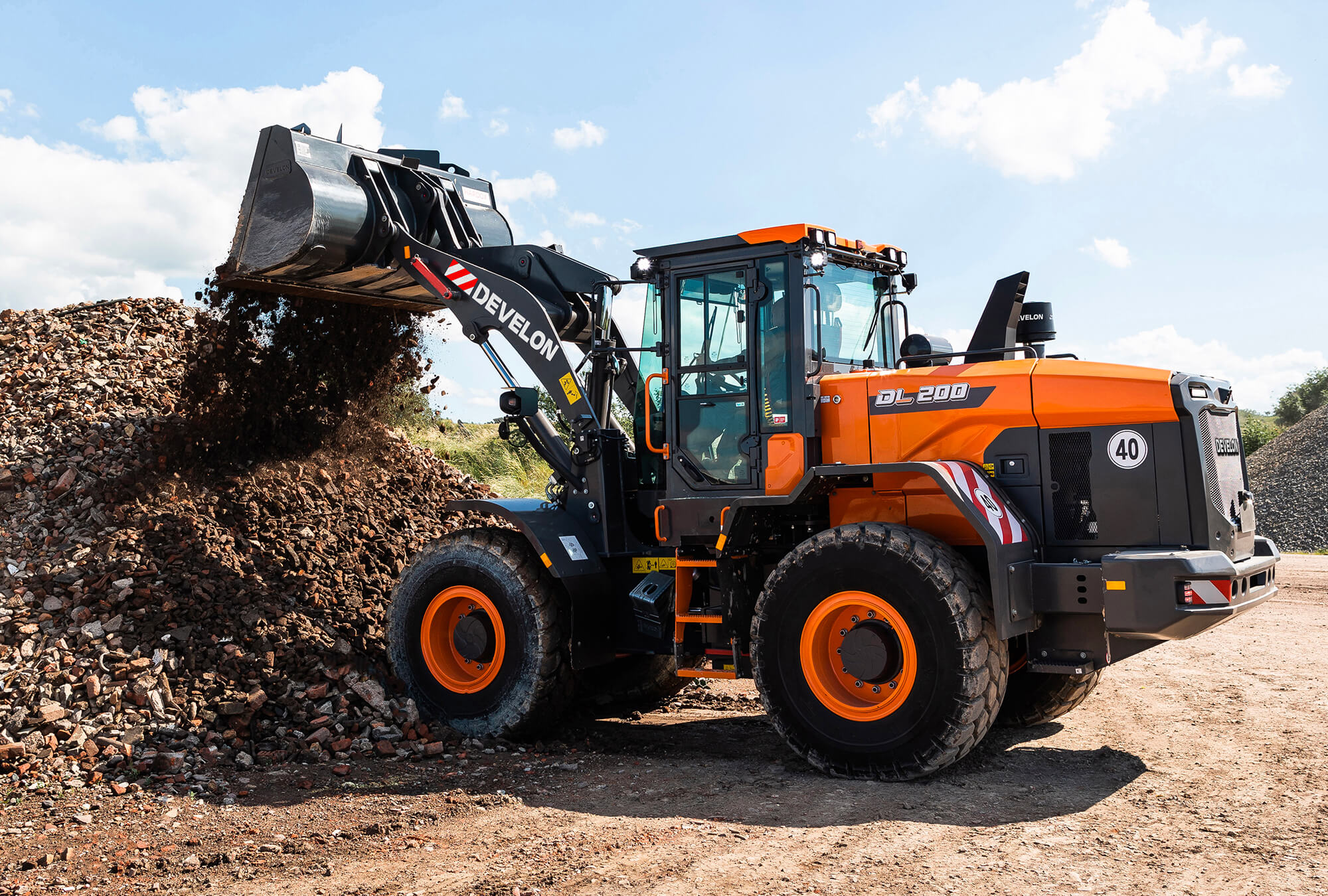

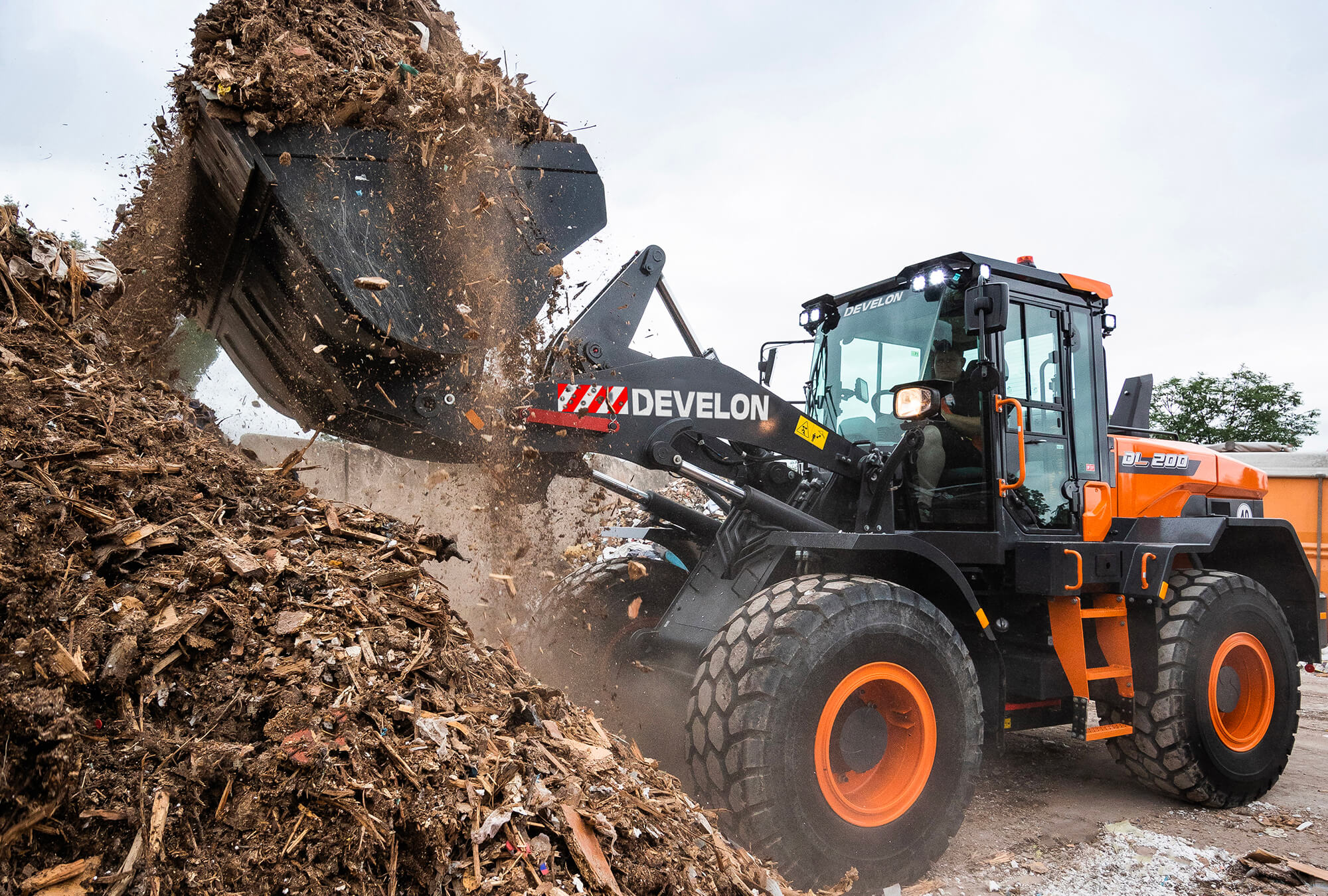

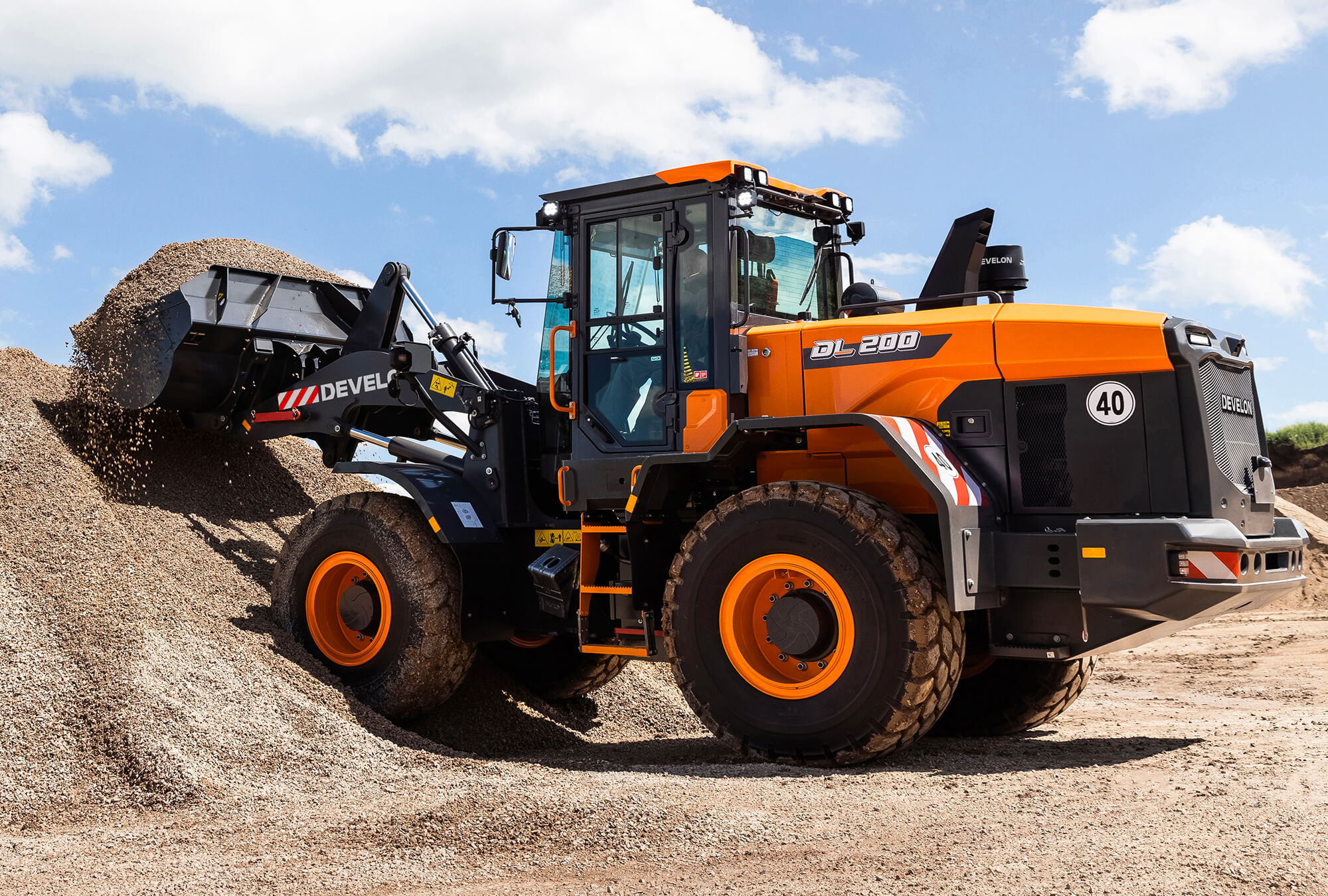

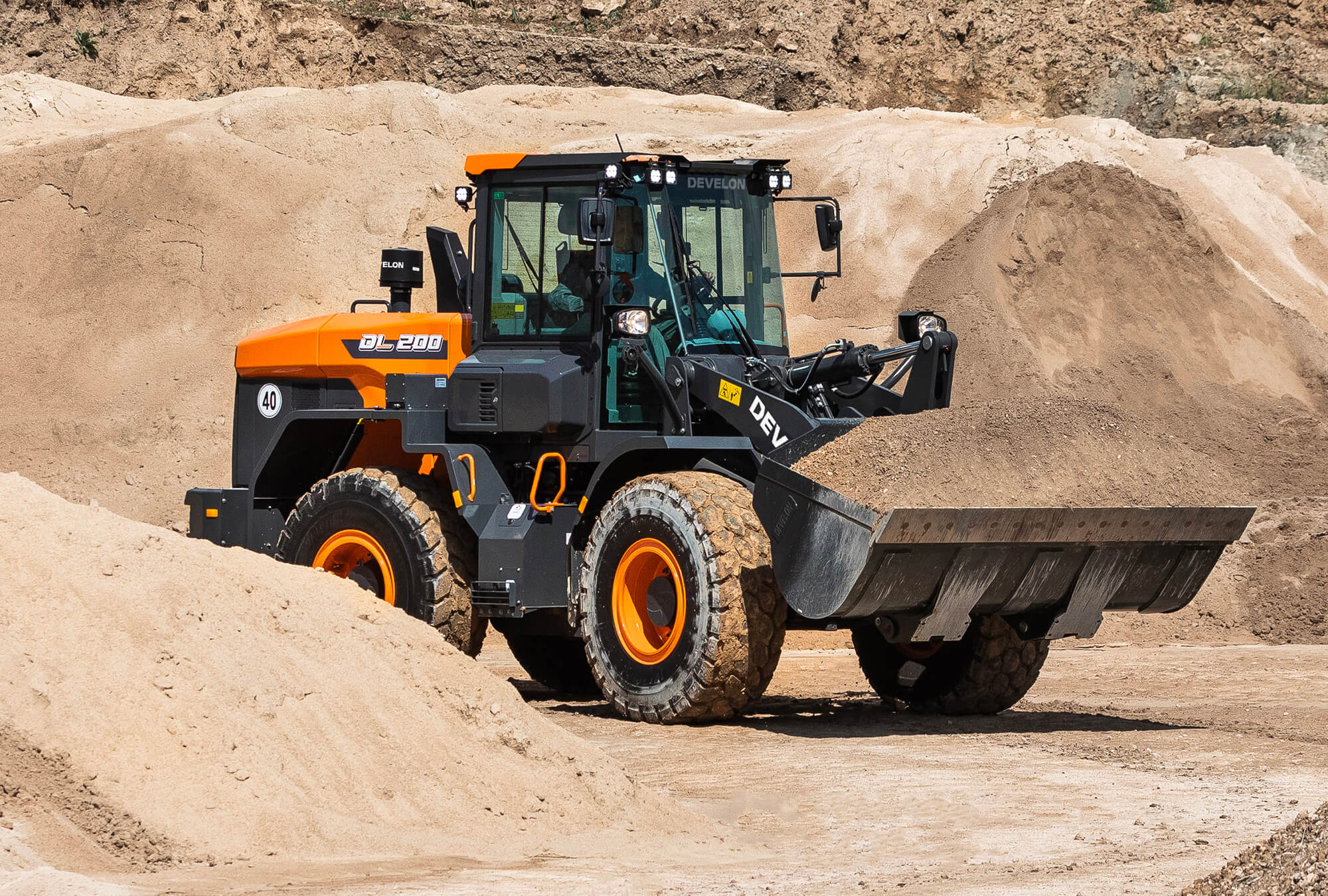

Boost your productivity with the new DL200-7 Develon wheel loader. Exceptional power – combined with the finest workmanship – results in a machine that performs at the highest level.


The DL200-7 enhances your output from every angle. Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials. Powerful hydraulic system makes work quick and efficient. Perkins 1204J engine provides the power you need while meeting Stage V environmental regulations. The combination of these features gives Develon wheel loaders excellent penetration power, ensuring optimum bucket load in each cycle.

General Purpose Buckets

General purpose

Straight side cutter, teeth, width 2550 mm 1.9 m³
Straight side cutter, Bolt-on cutting edge, width 2550 mm 2.0 m³
Performance bucket - straight side cutter, teeth, width 2550 mm 2.2 m³
Performance bucket - straight side cutter, Bolt-on cutting edge, width 2550 mm 2.2 m³

Material handling

Convex side cutter, teeth, width 2550 mm 2.2 m³
Convex side cutter, Bolt-on cutting edge, width 2550 mm 2.2 m³

Transparent Bucket System

Owing to blind spots caused by the buckets on wheel loaders, the area in front of the machine has been considered an area of major concern in terms of safety. The system records images at the front of the wheel loader with two cameras mounted on the top and bottom of the machine and displays the combined images in real time on the monitor in the cab using a curved projection method.



See more information about our Transparent Bucket System.



Specifications

Machine Specs

Bucket capacity 2.0 m³
Tipping load 10.124 kg
Static tipping load, at 40° 8.933 kg
Length with bucket 7.208 mm
Width with bucket 2.539 mm
Height 3.313 mm
Dump height (at 45°) with bolt-on cutting edge 2.718 mm



Dump reach (at 45°) with bolt-on cutting edge 961 mm
Wheelbase 2.980 mm
Engine Perkins 1204J Stage V (4-cylinder)
Operating weight 12.047 kg
Engine power 106 kW (144 CV) @ 2000 giri/min
Breakout force 98 kN
