DL550-7

Bucket capacity

5.4 m³

Tipping load

24.830 kg

Static tipping load, at 40°

21.897 kg

Request a Quote Download Brochure

Find a Dealer

DL550-7

Smart Productivity

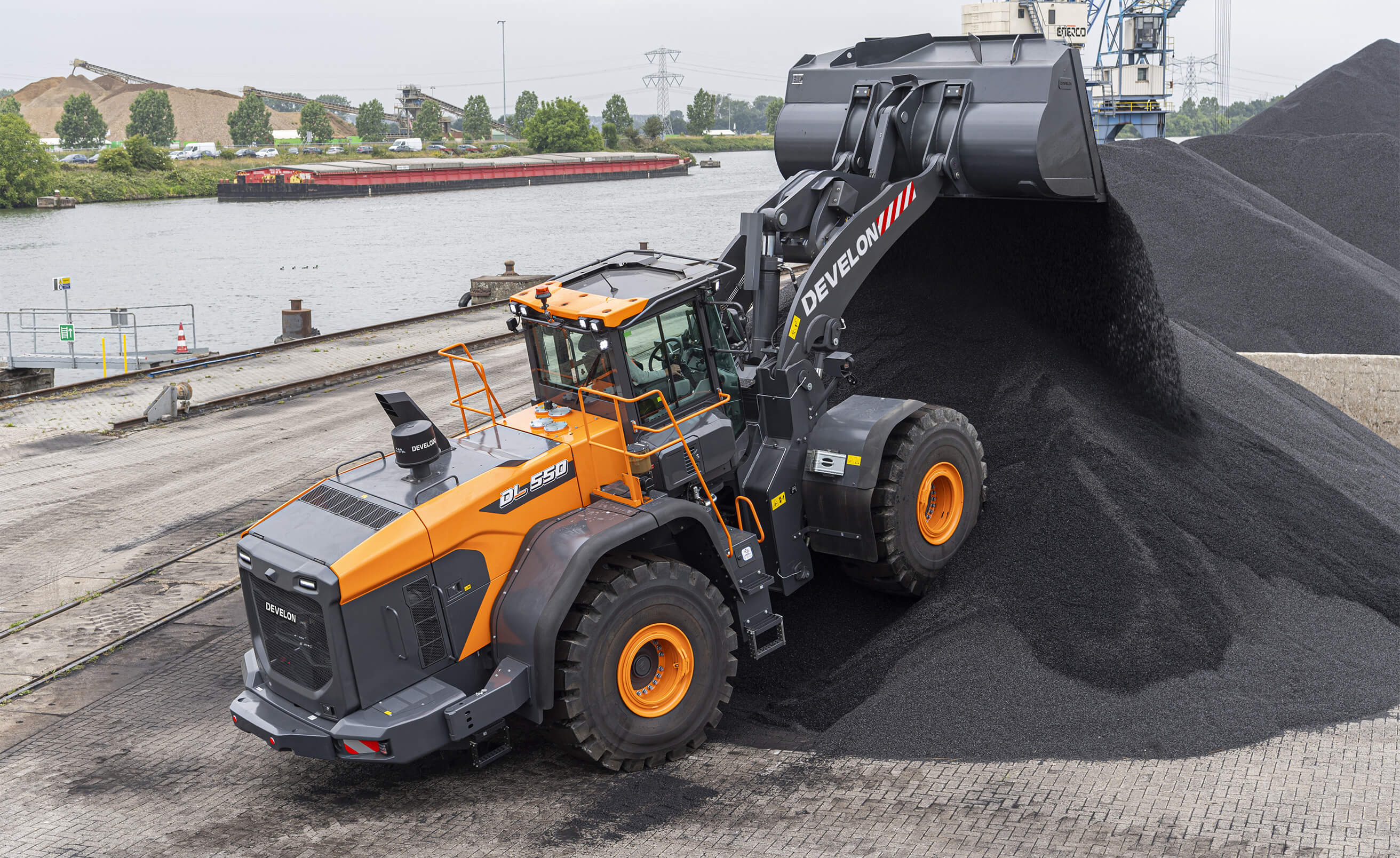

The new DL550-7 Stage V wheel loader, featuring a completely new design, providing higher performance, increased fuel efficiency and a much enhanced environment for the operator compared to the previous Stage IV model.

More information

Exceptional power – combined with the finest workmanship – results in machines that perform at the highest level. The DL550-7 enhance your output from every angle. Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials. Powerful hydraulic system makes work quick and efficient.Scania DC13 engine provides the power you need while meeting Stage V environmental regulations. The combination of these features gives Develon wheel loaders excellent penetration power, ensuring optimum bucket load in each cycle.

General purpose buckets

General purpose
Straight side cutter, teeth, width 3404 mm	5.4 m³
Straight side cutter, Bolt-on cutting edge, width 3404 mm	5.7 m³
Performance bucket - straight side cutter, teeth, width 3400 mm	5.7 m³
Performance bucket - straight side cutter, Bolt-on cutting edge, width 3400 mm	5.9 m³

Material handling
Convex side cutter, teeth, width 3400 mm	5.9 m³
Convex side cutter, Bolt-on cutting edge, width 3400 mm	6.1 m³

Transparent Bucket System

Owing to blind spots caused by the buckets on wheel loaders, the area in front of the machine has been considered an area of major concern in terms of safety. The system records images at the front of the wheel loader with two cameras mounted on the top and bottom of the machine and displays the combined images in real time on the monitor in the cab using a curved projection method.

See more information about our Transparent Bucket System.

Specifications

Machine Specs

Bucket capacity	5.4 m³
Tipping load	24.830 kg
Static tipping load, at 40°	21.897 kg
Length with bucket	9.885 mm
Width with bucket	3.400 mm
Height	3.863 mm
Dump height (at 45°) with bolt-on cutting edge	3.228 mm

Dump reach (at 45°) with bolt-on cutting edge	1.504 mm
Wheel Base	3.700 mm
Engine	Scania DC13 Stage V (6-cylinder )
Operating weight	33.209 kg
Engine power	283 kW (380 HP) at 1800 rpm
Breakout force	230 kN
