152 HP
17.000 kg
0.59 m³

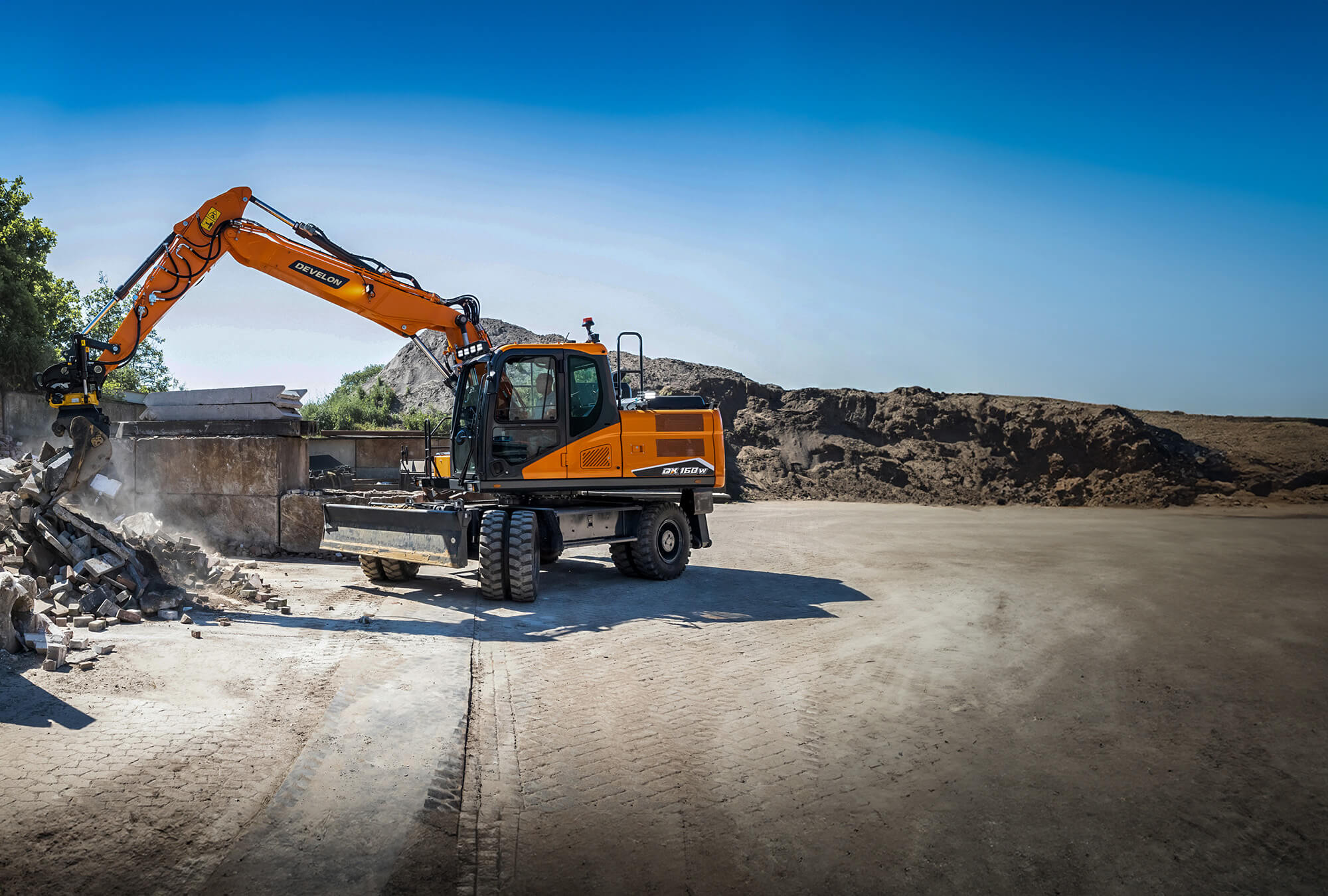

DX160W-7K
New WEX-7K Series Wheeled Excavators offers a host of redesigned features and new technologies to ensure smooth operation, superior productivity and stability, top-class operator comfort and improved fuel efficiency.These powerful machines will give your job site a huge boost.
Rock-solid in every moment. Thanks to optimized weight distribution, longer wheelbase cast counterweight and optional heavier counterweights for the biggest attachments, the DX-7 Series offers excellent stability for confidence and peace of mind in all situations. Rear and right side cameras as standard, anti-slip steps and platforms, as well as guard rails on upper structure. Optional: a 360° all-around view camera (AVM) can be linked with unique ultrasonic detection for maximum safety while working with people around. Large side mirrors, 7 powerful LED work lights (4 additional lights possible as an option), travel alarm.
| Maximum power | 152 HP |
| Operating weight | 17.000 kg |
| Buckets | 0.59 m³ |
| Emission standard | Stage V |
| Engine | Develon DL06V |
| Engine power | 113 kW / 152 hp at 2000 rpm |
| Overall width | 2495 mm |
| Wheel base | 2800 mm |
| Tread width | 1944 mm |
| Travel speed (creep / low / high) | 2.7/ 9.2 / 37 km/h |
| Maximum traction force | 8100 kg |
| Minimum turning radius | 65 m |
| Maximum swing speed | 11.8 rpm |
| Maximum swing torque | 3744 kgf·m |
| Max. digging reach (Mono / Arti boom) | 7585 mm / 8700 mm |
| Max. digging depth (Mono / Arti boom) | 4490 mm / 5455 mm |
| Max. digging height (Mono / Arti boom) | 8195 mm / 9655 mm |
| Main pumps max flow | 2 × 167 l/min |
