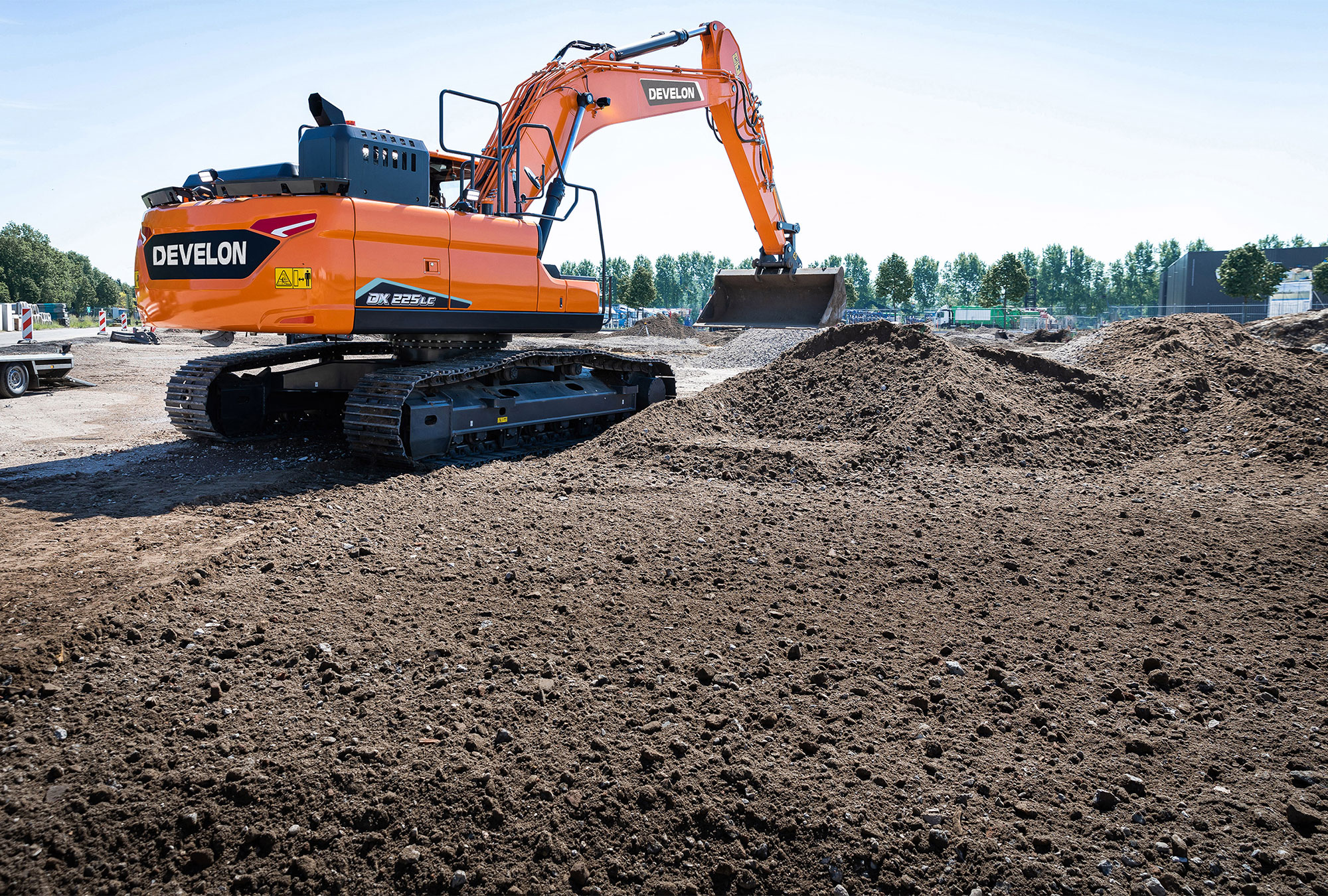

DX225LC-7

Maximum power

174 hp

Operating weight

23.300 kg

Bucket capacity

1.28 m3

DX225LC-7

Boost your productivity

Lift your business to the next level with the DX225LC-7 Develon excavator. Exceptionally powerful, yet environmentally friendly, the DX225LC-7 excavator features extraordinary fuel efficiency.

The new generation medium-sized Stage V compliant excavators - the new DX225LC-7 23 tonne crawler model. The DX225LC-7 is also the first Develon excavator of this size to feature Develon innovative D-ECOPOWER virtual bleed off (VBO) technology, providing operators with higher productivity and around 7% lower fuel consumption per hour than the previous Stage IV model, as well as smoother controls.


Specifications

Machine Specs

Maximum power 174 hp
Operating weight 23.300 kg
Bucket capacity 1.28 m3
Emission standard Stage V
Engine Develon DL06V
Number of cylinders 6
Engine power 129 kW / 174 hp @ 1800 rpm



Bucket capacity 0.81 – 1.05 m³
Arm lenght 2400 – 3500 mm
Boom lenght 5700 – 5850 mm
BUCKET (Normal/Press. Up) 15.6 - 16.5 t
ARM (Normal/Press. Up) 9.7 - 13.4 t
Main pumps max flow 2 × 210.6 l/min

DX225LC-7

Options & Attachments

Quick Coupler

Part name Part # Pin Diameter (mm) Min - Max Centers (x - y )mm) Base Width  (mm) Weight  (kg (lbs))
16 - 29t Quick Coupler QC80 (H) (M) 80 385 - 530 280/300 628 (285)

Bucket

Part name Part # Width (mm) Capacity (m3) Weight (kg)
Bucket H25-1500 H25-1500 1500 1,09 1031

DX225LC-7
