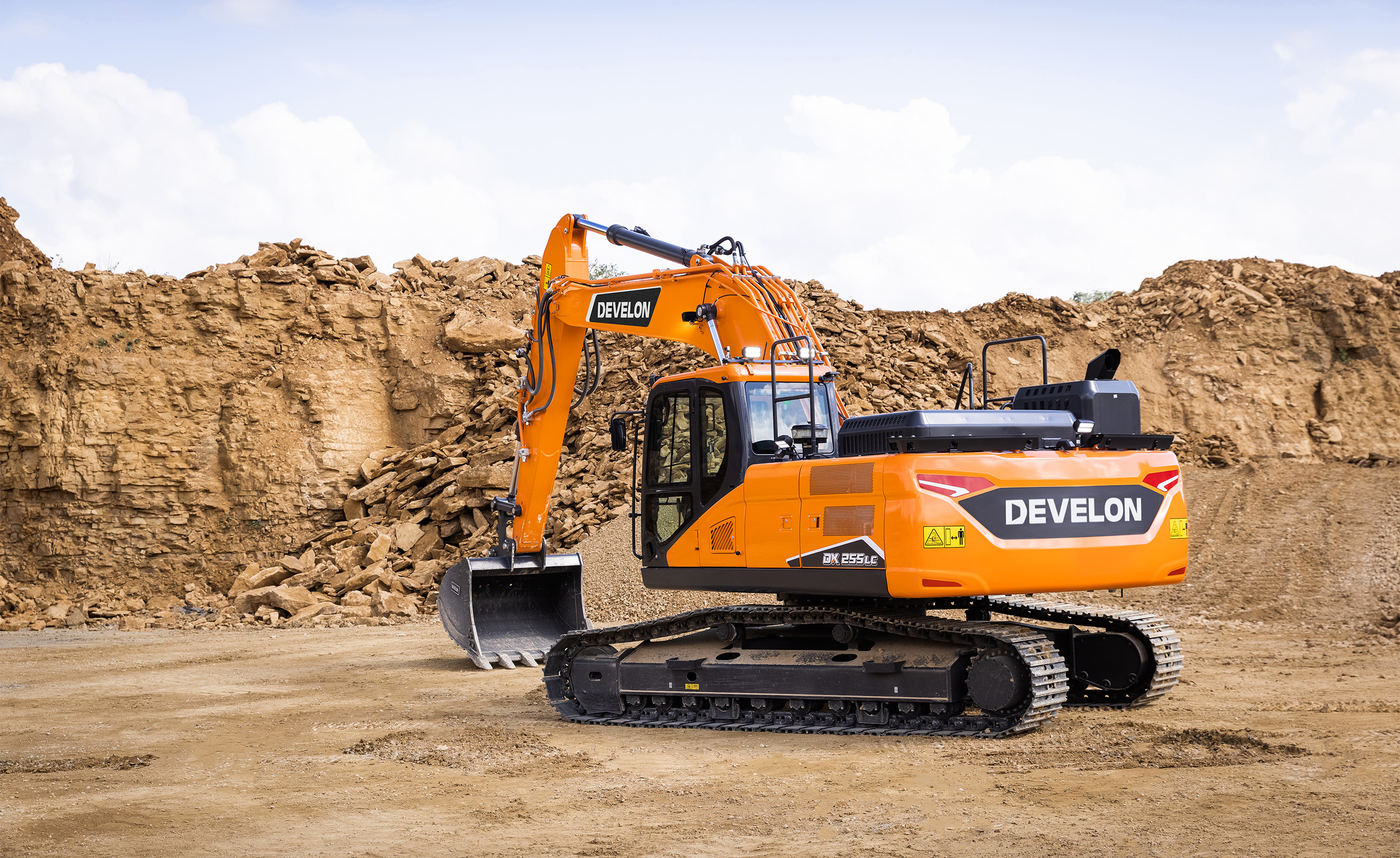

DX255LC-7

Lift your business to the next level with the DX255LC-7 Develon excavator. Exceptionally powerful, yet environmentally friendly, the DX255LC-7 excavator features extraordinary fuel efficiency.


Reinforced castings and forged steel pivot points and reinforced heavy-duty arm and boom to withstand high-impact materials. Monoboom or articulated boom for added versatility. Improved hydraulic line routing to protect your investment. One of the most spacious cabs in the market, with low noise & vibration levels and excellent all-round visibility. Thanks to the heating and even an optional cooling functionality of the premium seat and improved air ventilation in the DX255LC-7, you can focus on the job at hand in any situation. The latest evolution of the legendary Stage V Develon DL06V engine achieves greater fuel savings thanks to D-Eco Power and the 3rd generation of Smart Power Control (SPC3) Take full control over your fuel consumption with the settable engine shut off.


Download Brochure Find a Dealer

Machine Specs

Maximum power 189 hp
Operating weight 25.700 kg
Bucket capacity 1.4 m³
Emission standard Stage V
Engine Develon DL06V
Number of cylinders 6
Engine power 141.3 kW / 189 hp @1900 rpm
Buckets 0.92 – 1.17 m³
Arm lenght 2500 – 3500 mm
Boom lenght 5900 – 6090 mm
Bucket digging force 17.0 - 17.9 t
Arm digging force 11.7 - 15.4 t
Main pumps max flow 2 × 210.6 l/min

Options & Attachments

Quick Coupler

Part name Part # Pin Diameter (mm) Min - Max Centers (x - y )mm) Base Width  (mm) Weight  (kg (lbs))
16 - 29t Quick Coupler QC80 (H) (M) 80 385 - 530 280/300 628 (285)

Bucket

Part name Part # Width (mm) Capacity (m3) Weight (kg)
Bucket H25-1500 H25-1500 1500 1,09 1031
