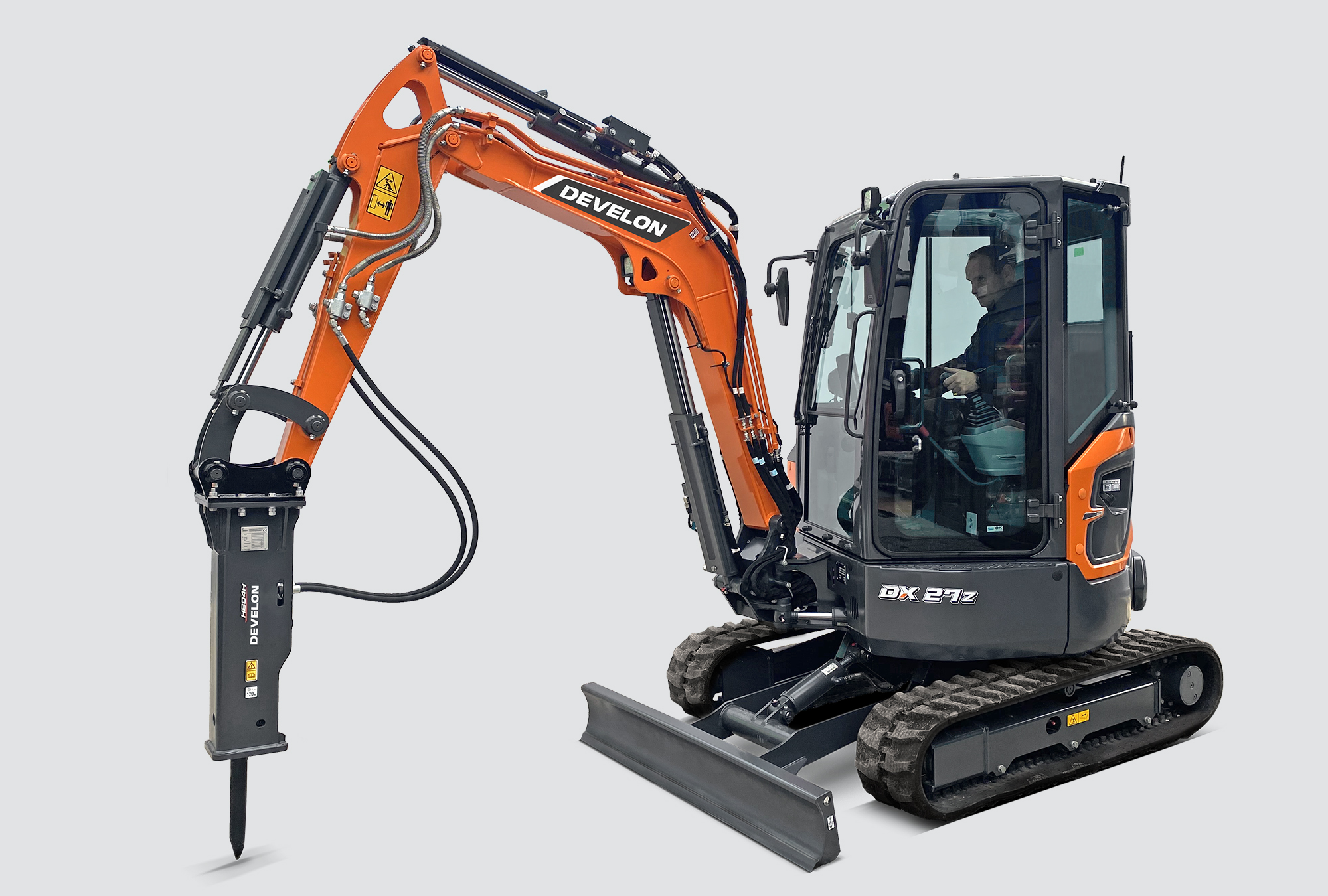

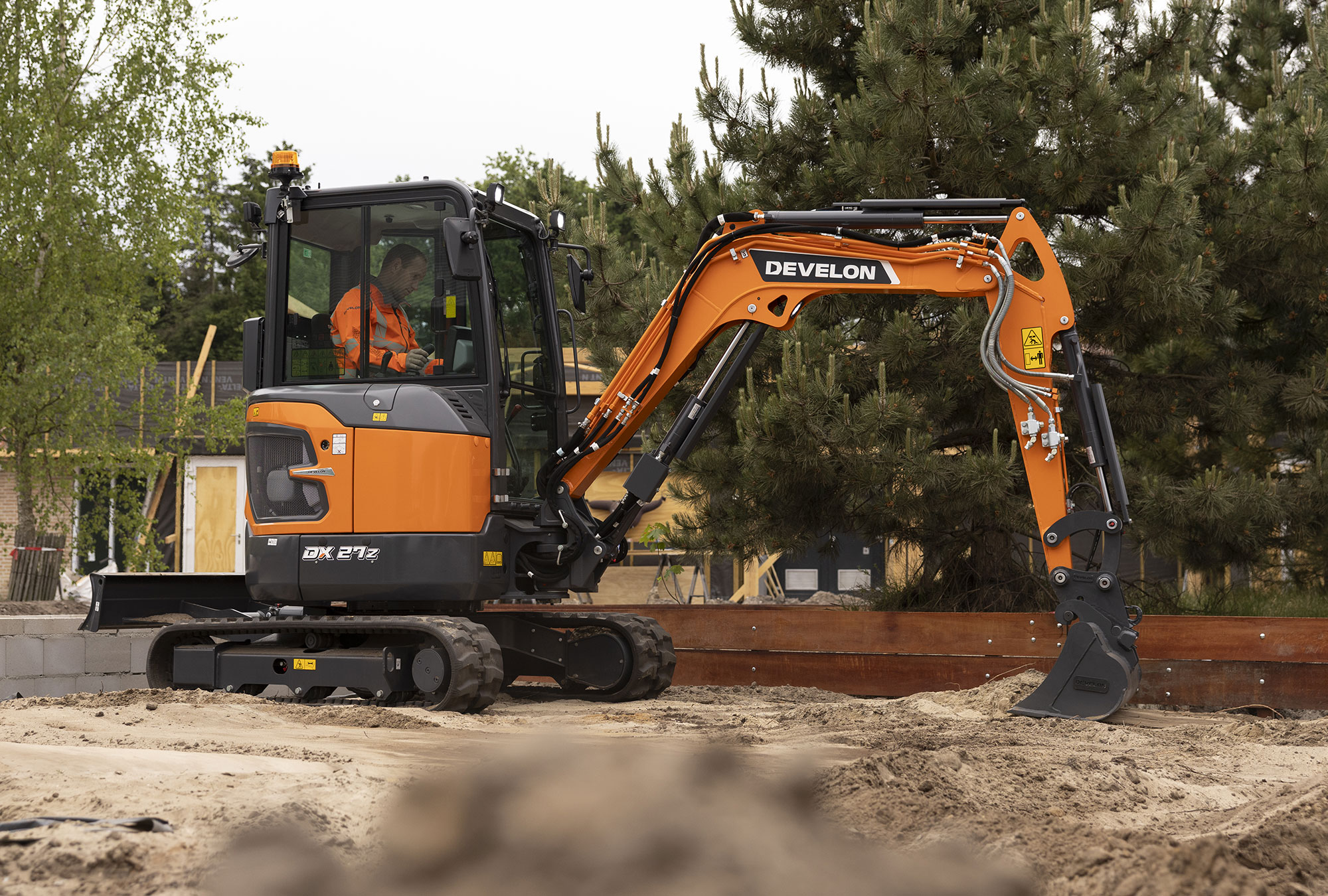

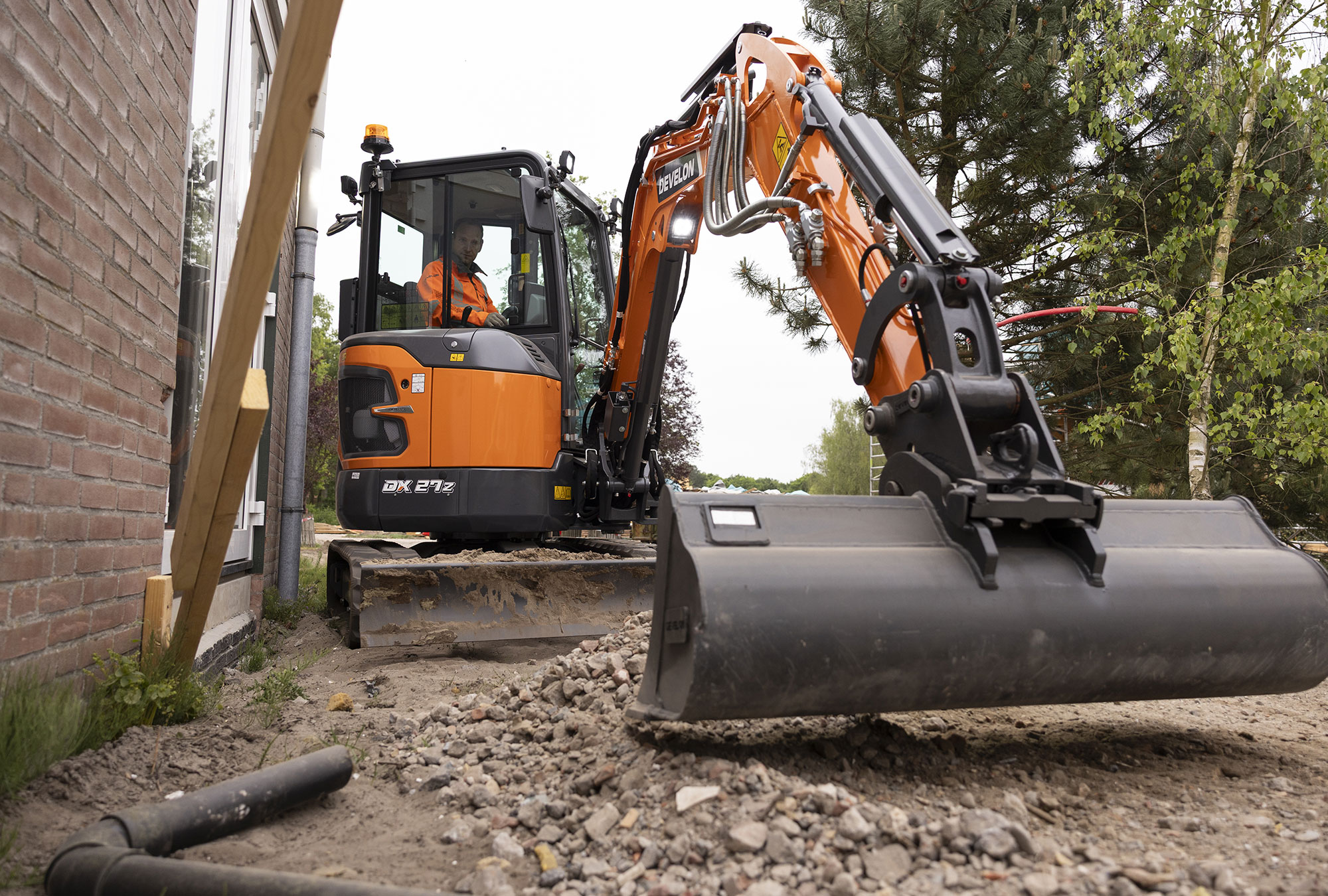

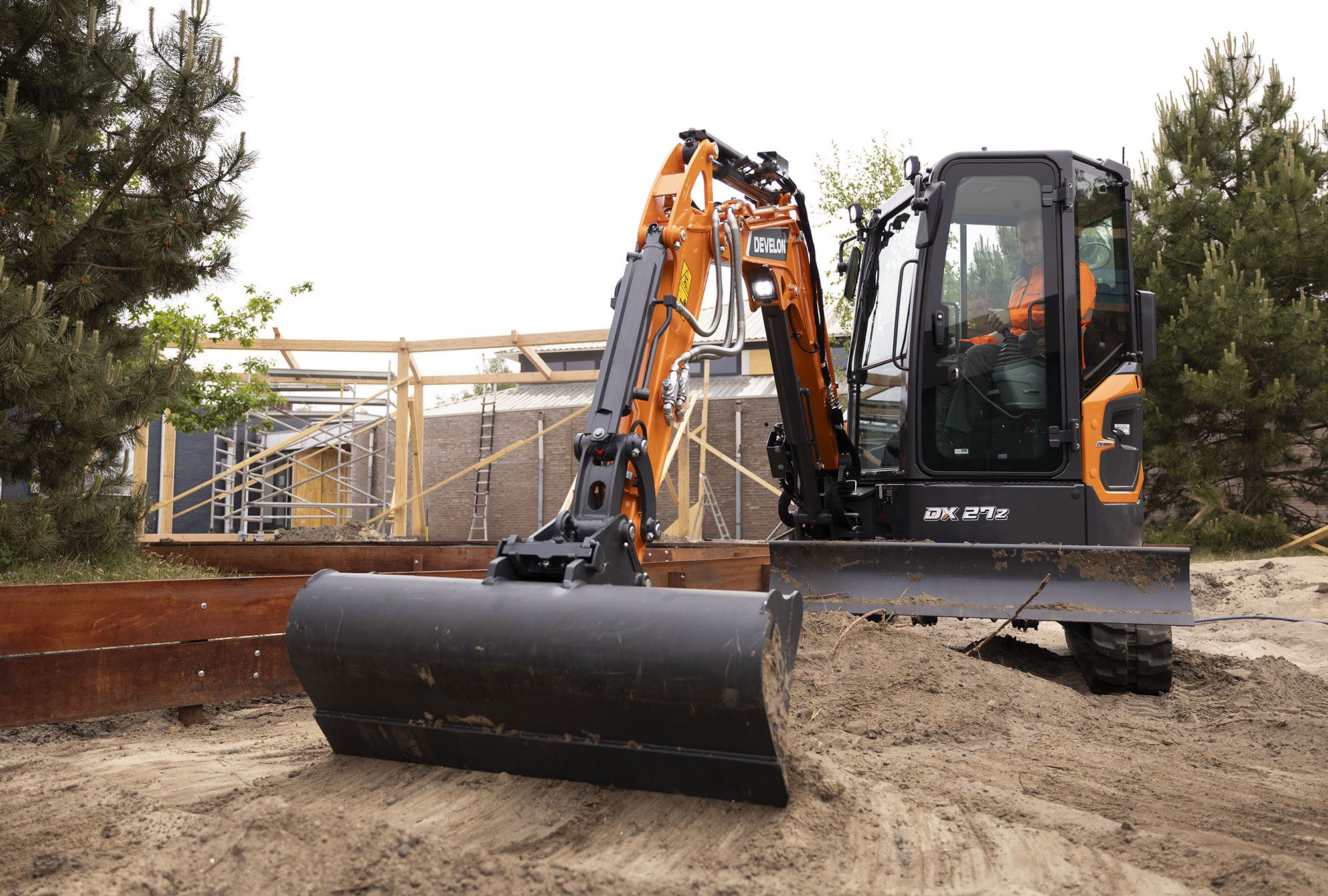

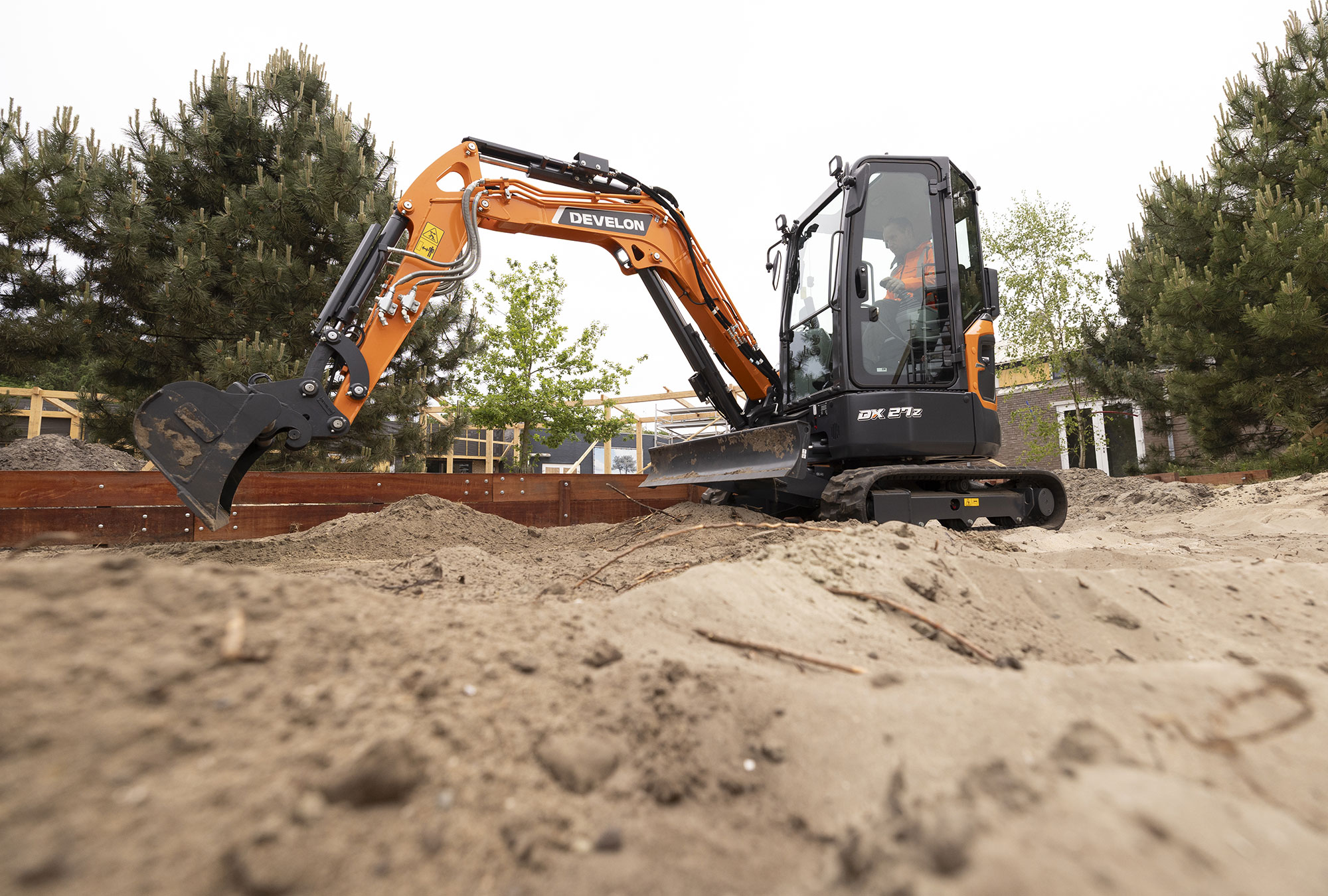

DX27Z-7

Offers a host of redesigned features and new technologies to ensure smooth operation, superior productivity and stability, top-class operator comfort and improved fuel efficiency. This powerful machine will give your job site a huge boost.

The new DX27Z-7 offers really high level of efficiency, in any application, thanks to a brand new design and the best compactness in the market.

Download Brochure

Find a Dealer

Maximum power	18.4 KW
Operating weight	2798 kg
Max. bucket capacity	0,06 m³
Engine	Develon D17
Maximum power	18.4kW / 2400 RPM
Max. digging reach (standard / long arm)	4520/4720 mm

Max. dumping height (standard / long arm)	2935/3065 mm
Max. digging depth (standard / long arm)	2645/2845 mm
Digging force - bucket	21.8 kN
Travel speed	2.4/4.2 km/h
Width	1550

Quick Coupler

Part name	Part #	Pin Diameter (mm)	Min - Max Centers (x - y )mm)	Base Width (mm)	Weight (kg (lbs))
2-4t Quick Coupler	QC35-40 (H)	35 / 40	130 - 225	122	77 (35)

Bucket

Part name	Part #	Width (mm)	Capacity (m3)	Weight (kg)
Bucket H03-0300	H03-0300	300	0,032	40
Bucket H03-0450	H03-0450	450	0,055	52
Bucket H03-0600	H03-0600	600	0,078	67
Bucket G03-1200	G03-1200	1200	0,104	79
