DX35Z-7K

Engine power

25 hp (18.4 kW) at 2 200 rpm

Operating weight

4 040 kg

Engine

Develon DW01

Request a Quote Find a Dealer

DX35Z-7K

Get Power, Efficiency, and Versatility
in One Compact Excavator

Engineered for heavy-duty applications, this machine is built to maximize job site productivity and stability. Driven by an advanced new engine and an improved cooling system, it delivers hours of low-cost, efficient operation while staying mindful of your bottom line and the environment. Along with a compact, easy-to-transport design that enhances comfort and visibility, the DX35Z-7K takes your business to the next level with unmatched reliability, power, and versatility.

Big Performance
in Small Spaces

The Develon DX35Z-7K may be compact, but it's built to handle big challenges. With a shifted boom for better visibility, a two-piece counterweight for solid stability, and cylinder covers for added protection, it's ready to work smart in tight spaces.

Easy
Care

The redesigned cab keeps operators more comfortable and focused, thanks to improved airflow and better visibility from the shifted boom center and repositioned radio.

Confidence
on the Move

Enjoy enhanced comfort and visibility with wider wiper coverage, bright LED lights, a sun visor, and an easy-to-spot orange seatbelt. Convenient tie-down points, including a new tie-down point on the side frame, ensure hassle-free transport.

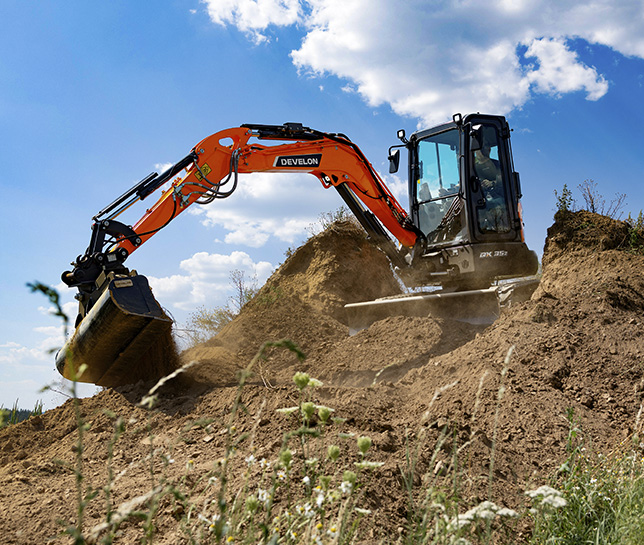

The heavy-duty cast counterweight ensures exceptional stability, allowing you to handle challenging tasks without hesitation. With options for a counterweight weighing either 205 kg or 245 kg, the machine maintains optimal balance, giving you the freedom to focus fully on the job at hand

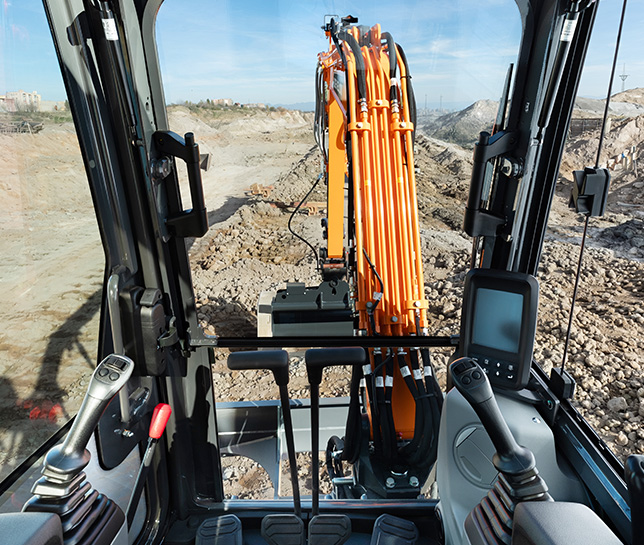

Equipped with advanced safety features, theDX35Z-7 is designed to keep you protected on every job. The safety lever locks the system when not in use, preventing accidental operation, while the Roll Over Protective Structure (ROPS) and emergency engine stop switch add extra peace of mind. The overload warning system alerts you before lifting beyond safe limits, helping to avoid accidents. And with automatic travel speed shifting, the machine adapts between low and high speeds on its own—so you can move safely across any terrain, no extra effort needed.

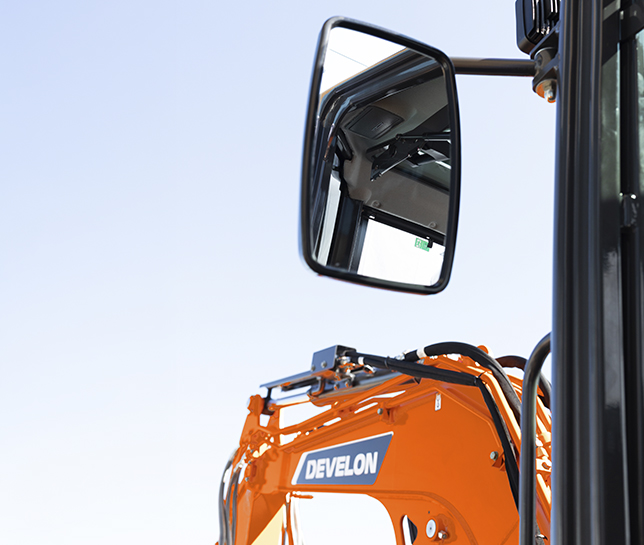

Stay in command of your surroundings with improved visibility and control. A wider cab entry point, an added sun visor, a maintenance window, and a shifted boom center help improve visibility. Combined with powerful LED lights on the boom and cab, large glass doors, and an all-around view camera, these features contribute to a safer working environment. For added security, the machine comes with a rotating beacon and reinforced cast steel pivot, ensuring safe operation no matter the conditions.

Driven by the new Develon DW01 engine and an improved cooling system, the DX35Z-7 excels in heavy-duty applications with a 1 647 cm3 displacement and 102 Nm of torque. Thanks to an upgraded intake and exhaust system featuring a two-stage air cleaner and dual insulators, this efficient engine runs much more quietly, benefiting both the operator and the environment.

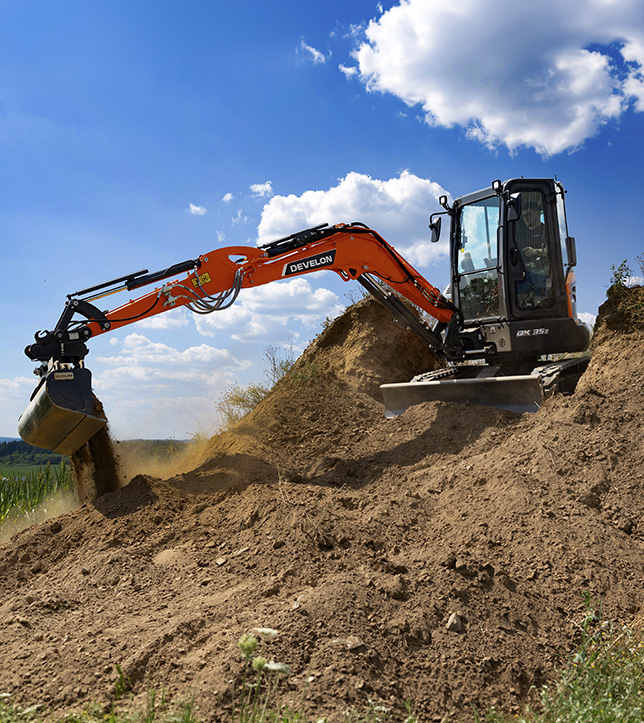

Maximize efficiency in confined areas with the machine's zero tail swing and ultra-compact design. The innovative boom swing function allows for smooth operation in the tightest spaces, with no rear overhang, ensuring safer operation and reducing the risk of damage to surrounding structures.

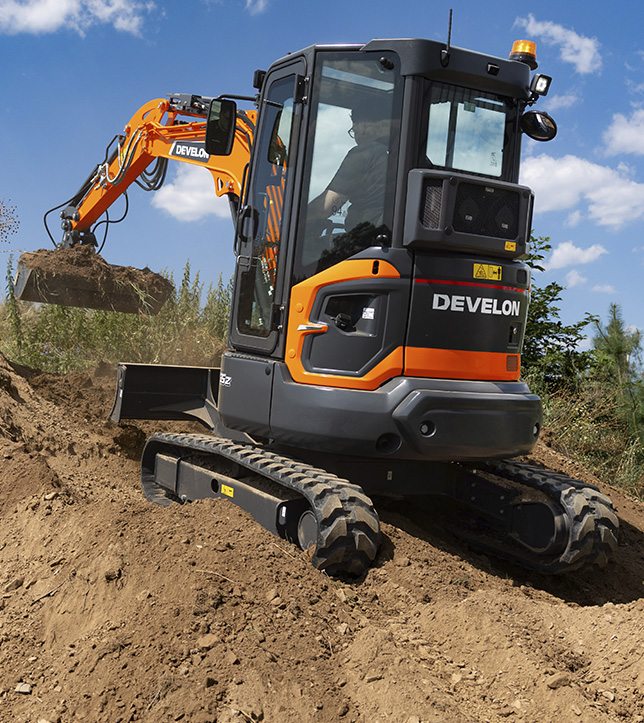

Experience the hydraulic power of the DX35Z-7. With generous flow capacity, precise controls, and a proportional flow rate, every move feels effortless. Add the optional quick coupler for fast attachment changes and keep productivity moving. With the DX35Z-7's improved arm speed, you can complete cycles even faster and tackle demanding tasks with maximum efficiency.

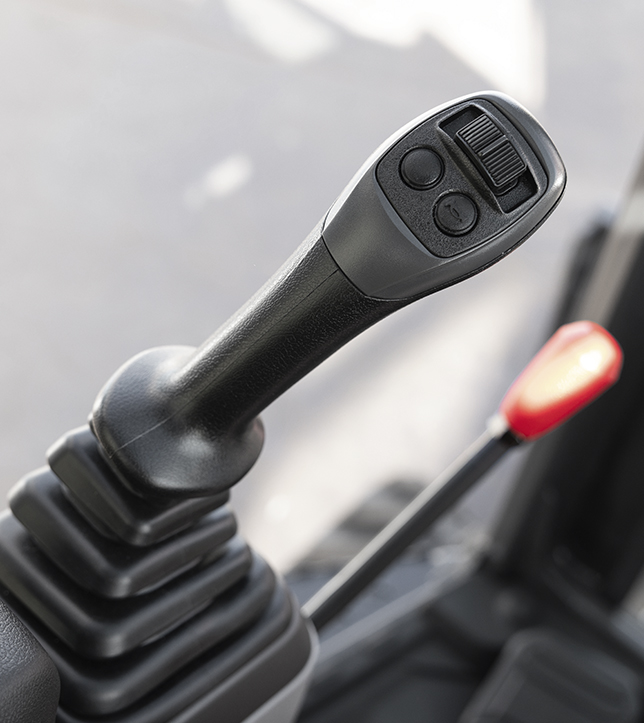

The DX35Z-7 is engineered to tackle demanding tasks while keeping operating costs low. With two travel speeds and autoshift, it smoothly adapts to various terrains.

This system continuously adjusts the hydraulic fluid flow to match the load demands. It helps improve fuel efficiency, reduce wear on hydraulic components, and prevent issues like overloading or leaks. The result? Lower operating costs and a more reliable machine.

The cylinder guards are designed with a hose-through-workgroup setup, plus additional protective elements on the arm and boom. A newly added dozer blade cylinder cover adds extra protection, reducing wear and ensuring durability in tough conditions.

A better boom position, increased arm speed, smarter weight distribution, and tougher materials mean less wear and tear and a machine you can count on.

The arm assembly is reinforced with cast elements and extra support around key connection points. This design boosts strength and extends the life of the arm, ensuring it stands up to even the hardest jobs.

Specifications

Machine Specs

Engine power	25 hp (18.4 kW) at 2 200 rpm
Operating weight	4 040 kg
Engine	Develon DW01
Max. bucket capacity	0.11 m3
Max. digging depth (std / long arm)	3275 / 3445 mm

Max. reach ground level (standard/long arm)	5235 / 5400 mm
Max. dumping height (standard / long arm)	3580 / 3700 mm
Travel speed	2.5 / 4.3 km/h
Width	1700 mm
