DX380DM-7

Operating weight

47400/44800 kg (Demolition Arm/Digging Arm)

Travel speed

3.0 - 5.4 km/h

Engine model

Scania DC9

DX380DM-7

Boost your productivity

In common with the other models in the High Reach range, the DX380DM-7 model is designed with the power to tear down the toughest structures, and the power and stability to keep the operator completely safe.

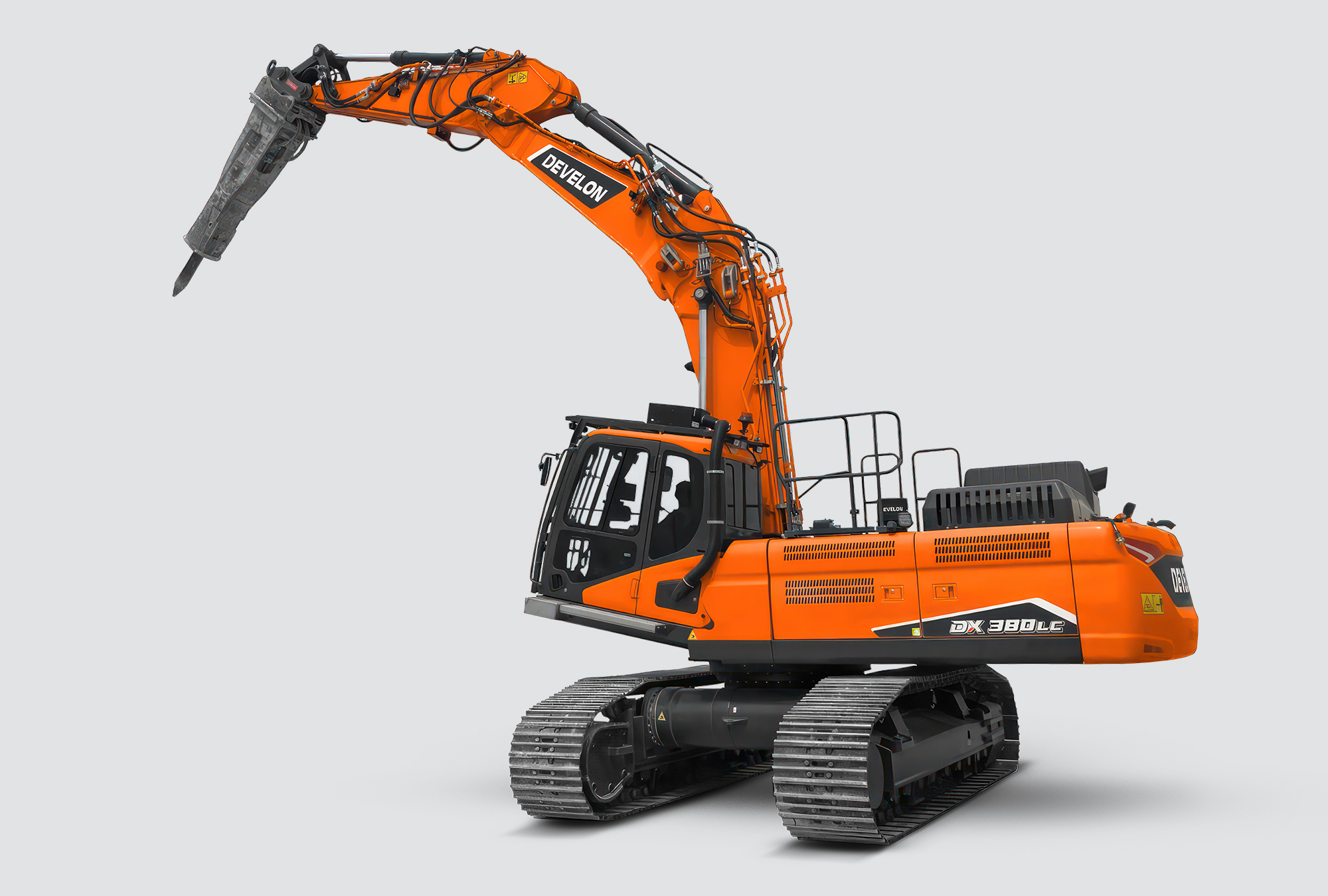

The Develon DX380DM-7 demolition excavator offers operator an excellent environment particularly suited to high-reach demolition applications, with a 30-degree tilting angle.

The multi-boom design on the DX380DM-7 model increases overall flexibility. This innovative design facilitates an easy change between a demolition boom and an earthmoving boom to accomplish different types of work on the same project, using the same machine. The DX380DM-7 also retains a hydraulically adjustable undercarriage, which extends to a maximum width of 4.37 m to provide optimum stability when working on demolition sites. The width of the undercarriage can be retracted hydraulically to 2.97 m in the narrow width position, for ideal transportation.

The 30° tilting cab also provides better visibility and reduces operator fatigue during high elevation demolition work.



Specifications

Machine Specs

Operating weight 47400/44800 kg (Demolition Arm/Digging Arm)
Travel speed 3.0 - 5.4 km/h
Engine model Scania DC9
Power (SAE J1995) 327 hp/240 kW at 1800 rpm
Pin reach  14500/ 10200 mm (Demolition Arm/Digging Arm)
Pin depth  -/ 5500 mm (Demolition Arm/Digging Arm)



Pin height  23000/ 9200 mm (Demolition Arm/Digging Arm)
Overall Length  15200/ 11285 mm (Demolition Arm/Digging Arm)
Width superstructure 2990 mm
Variable undercarriage width 2970 - 4370 mm
Overall Height (Incl.FOG) 3148 mm
