5438 kg
0.16 m3
Stage V
DX50Z-7

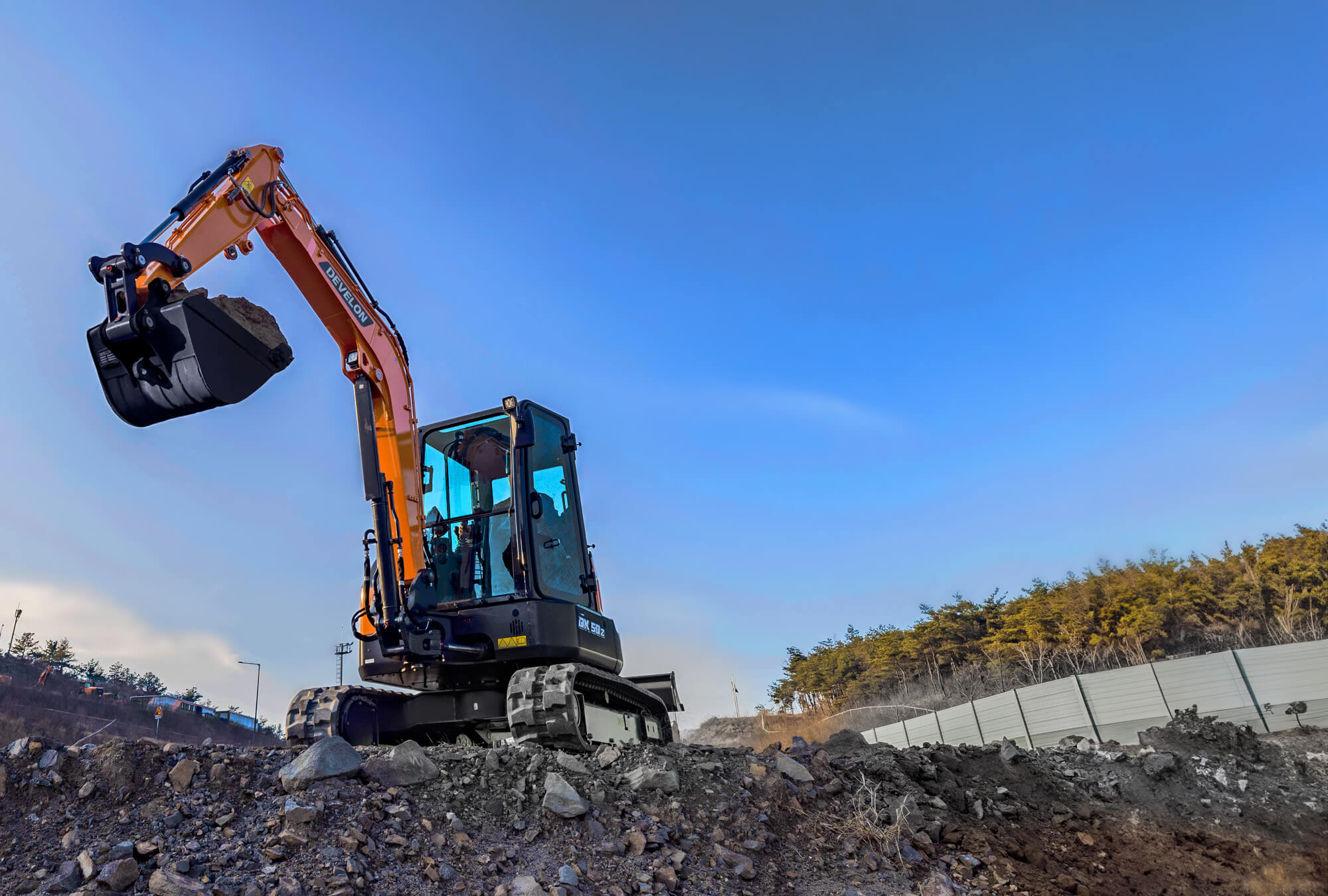

Achieve more with the DX50Z-7 excavator from Develon. Exceptionally powerful and productive yet environmentally friendly, the DX50Z-7 offers extraordinary fuel efficiency to help you keep operating costs to a minimum.
The air-conditioning and heating systems are integrated for optimal climate control. An automatically-controlled fan supplies the pressurized and filtered cab air, which is distributed throughout the cab from multiple vents. The heated air suspension, adjustable operator’s seat includes a seat belt. The operator can adjust the ergonomic seat and joystick console separately according to his preferences.
| Operating weight | 5438 kg |
| Bucket capacity | 0.16 m3 |
| Emission standard | Stage V |
| Engine | Develon D18 |
| Engine power | 36.4 kW / 48.8 hp at 2000 rpm |
| Maximum swing speed | 9.8 rpm |
| Maximum swing torque | 1380 kgf·m |
| Maximum traction | 4580 kg |
| Maximum gradeability | 35° / 70% |
| Width | 1980 mm |
| Max. reach ground level (standard/long arm) | 5800 mm |
| Max. digging depth (std / long arm) | 3480 mm |
DX50Z-7
