DX55R-7

Operating weight

5740 kg

Bucket capacity

0.16 m3

Emission standard

Stage V

DX55R-7

Reliable Power in
a Compact Form

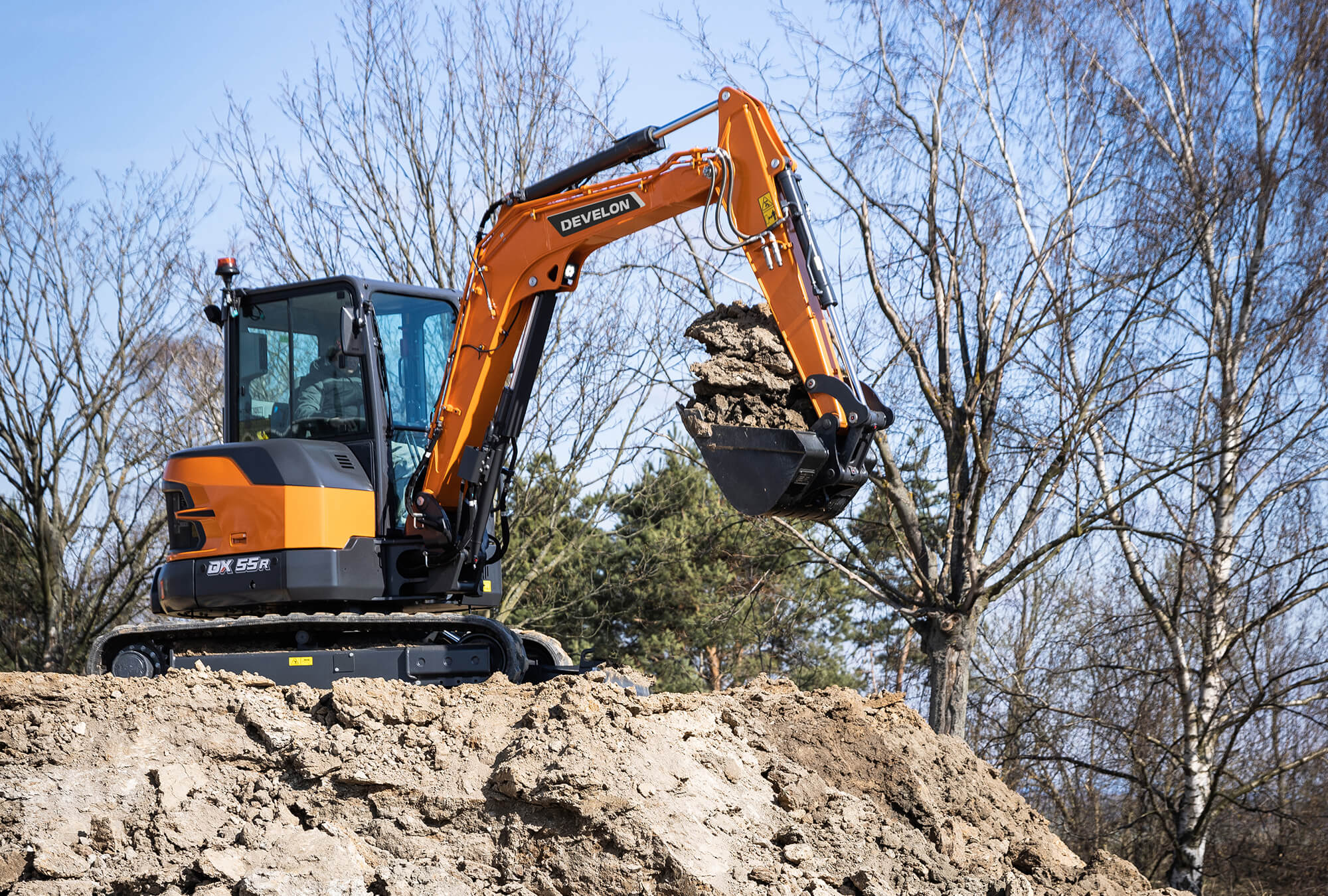

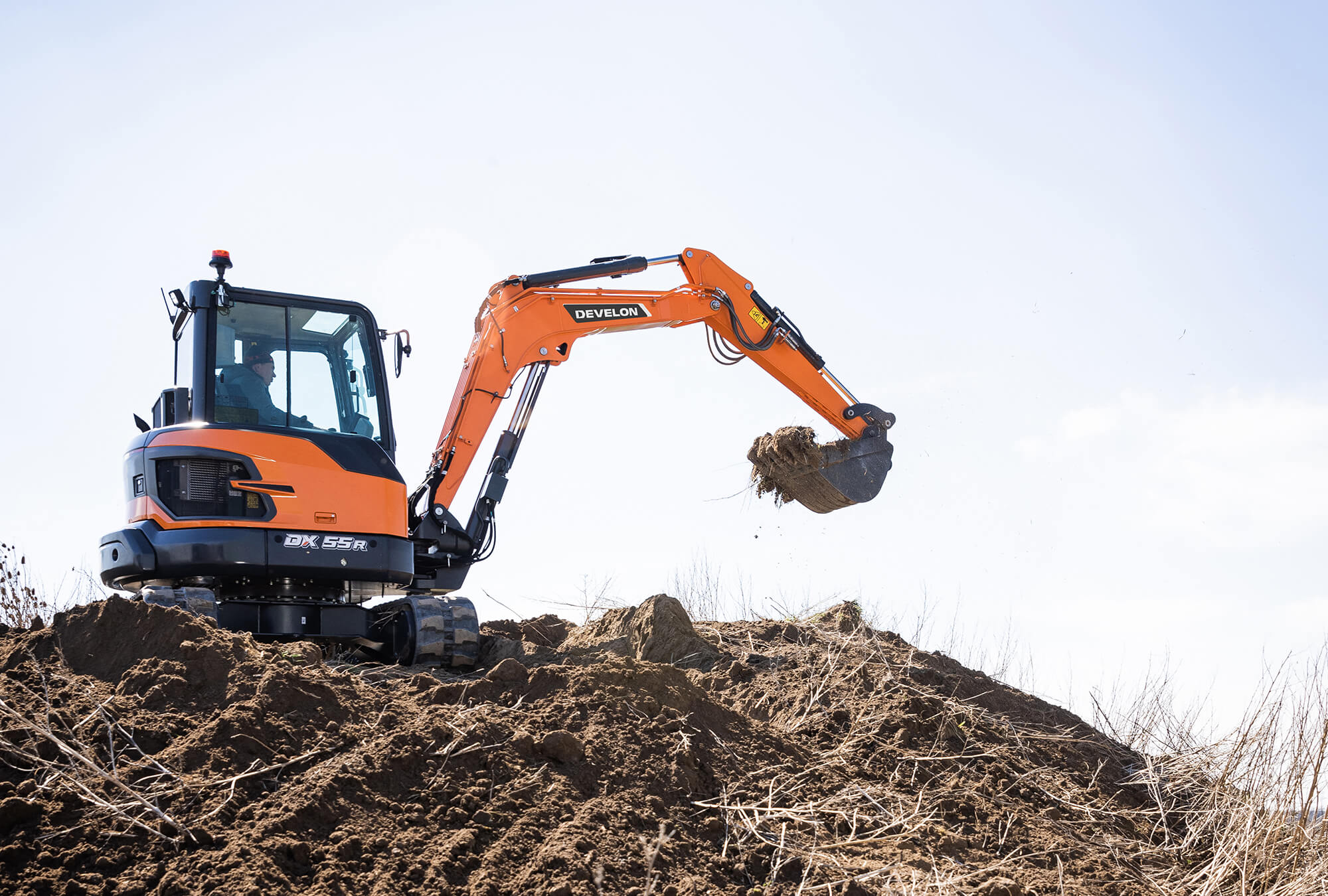

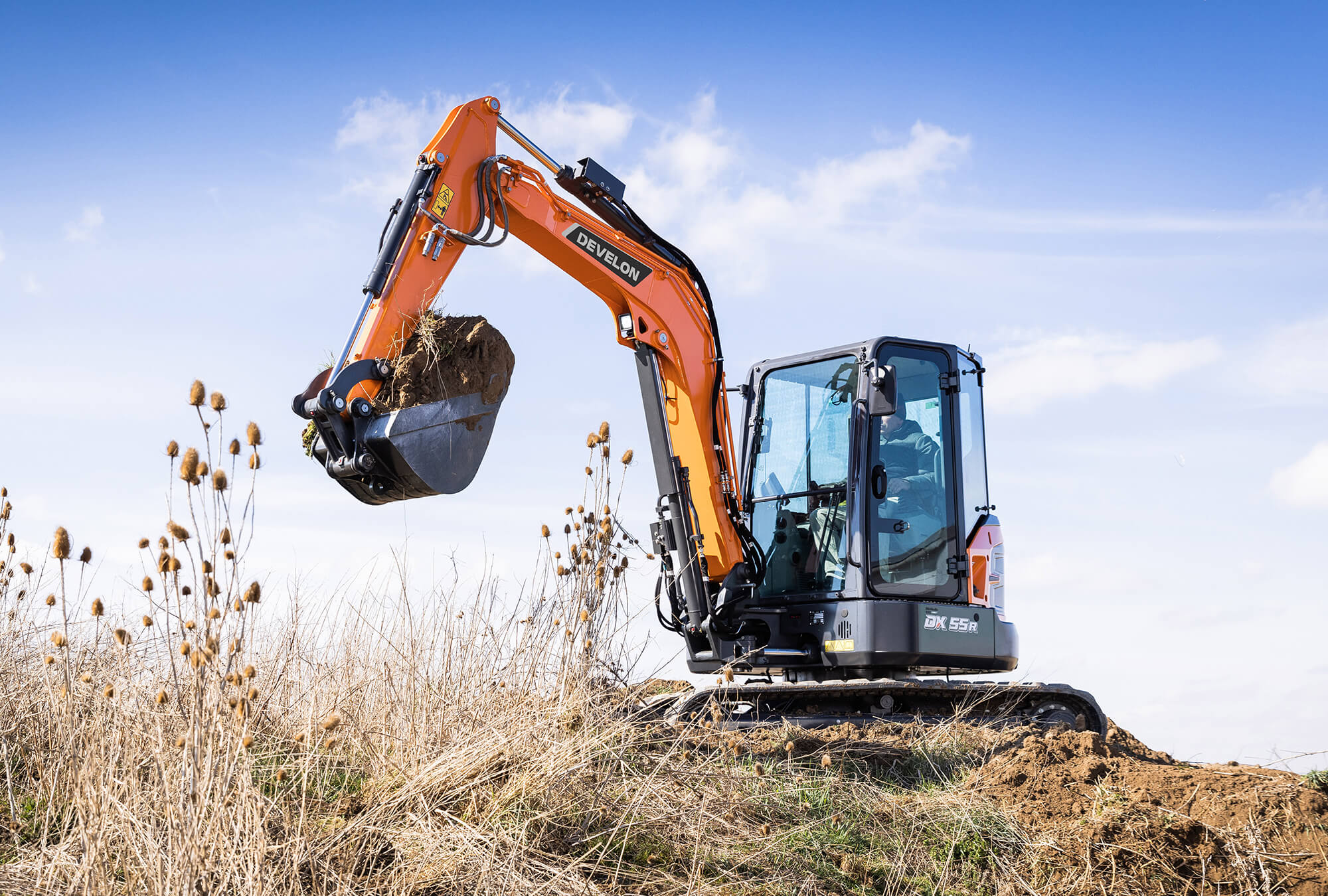

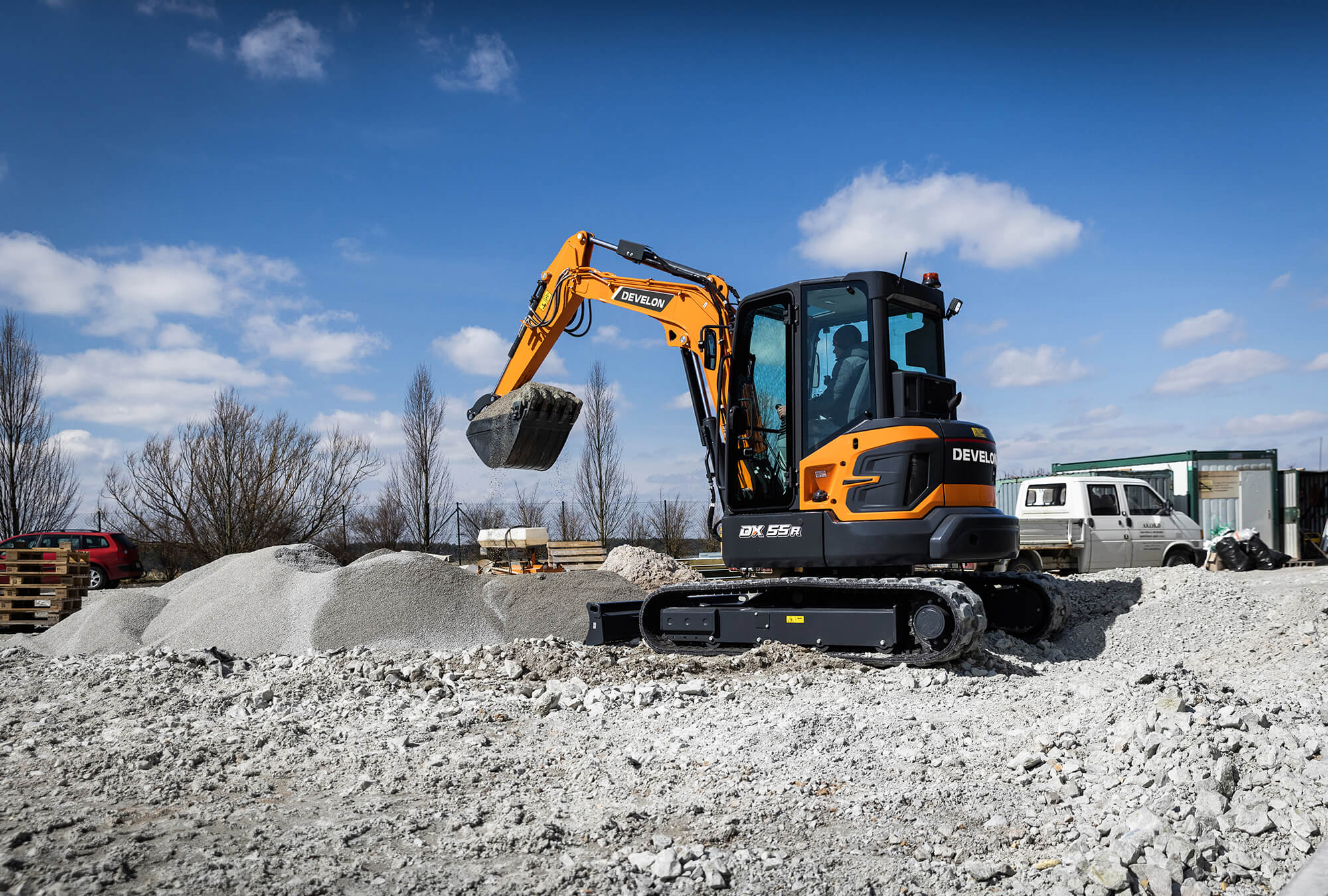

Take your business to the next level with the DX55R-7 excavator from Develon. Exceptionally powerful and productive yet environmentally friendly, the DX55R-7 excavator features extraordinary fuel efficiency.

More information

The air-conditioning and heating systems are integrated for optimal climate control. An automatically-controlled fan supplies the pressurized and filtered cab air, which is distributed throughout the cab from multiple vents. The heated air suspension, adjustable operator’s seat includes a seat belt. The operator can adjust the ergonomic seat and joystick console separately according to his preferences.

Specifications

Machine Specs

Operating weight 5740 kg
Bucket capacity 0.16 m3
Emission standard Stage V
Engine Develon D18
Engine power 36.4 kW / 48.8 hp at 2000 rpm
Maximum swing speed 9.8 rpm



Maximum swing torque 1380 kgf·m
Maximum traction 4580 kg
Maximum gradeability 35° / 70%
Width 1980 mm
Max. reach ground level (standard/long arm) 5950 mm
Max. digging depth (std / long arm) 3630 mm
