DX85R-7

Engine

Develon D24

Engine power

48.5 kW (65 hp) @ 2100 rpm

Operating weight

9528 kg

DX85R-7

Reliable Power in
a Compact Form

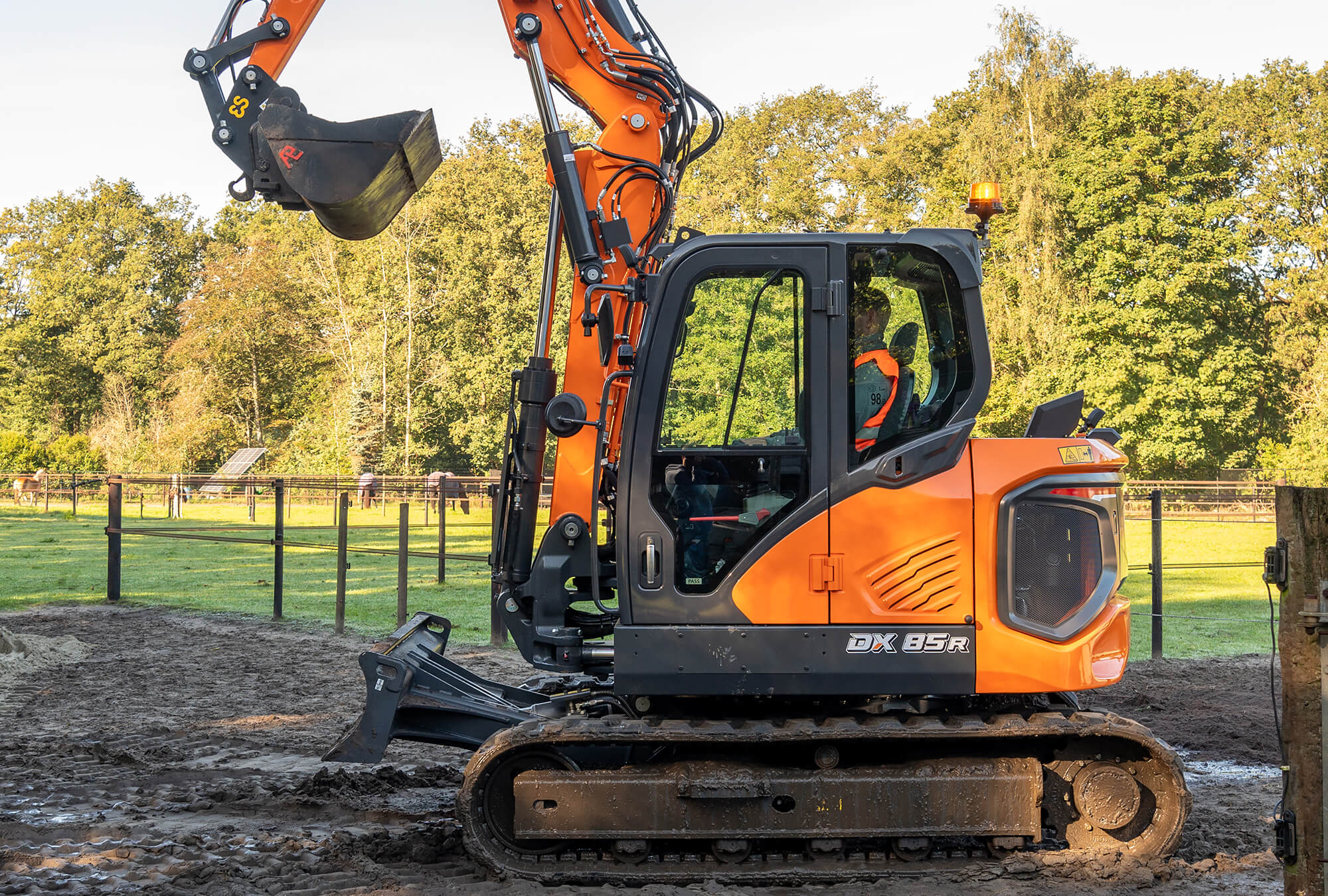

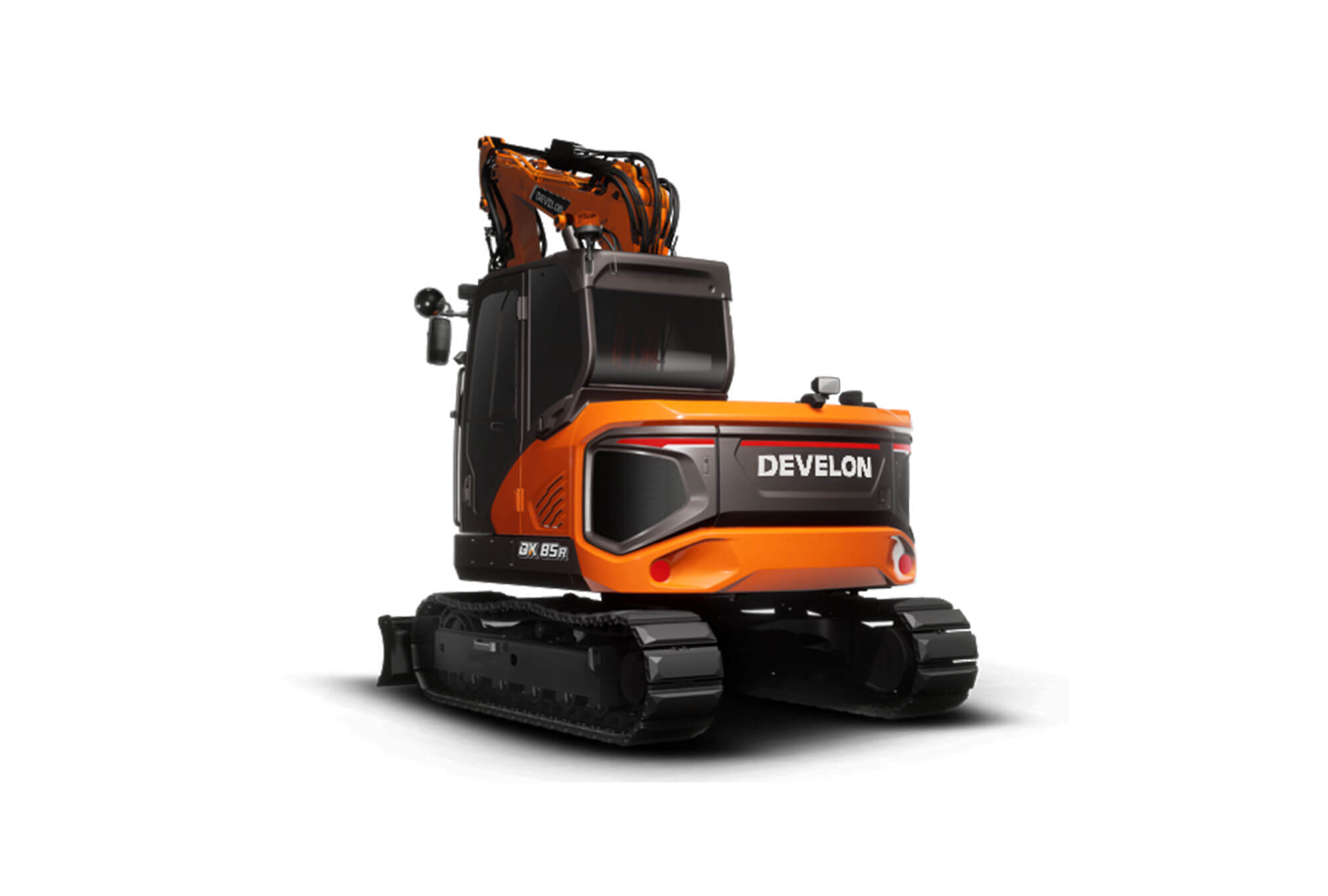

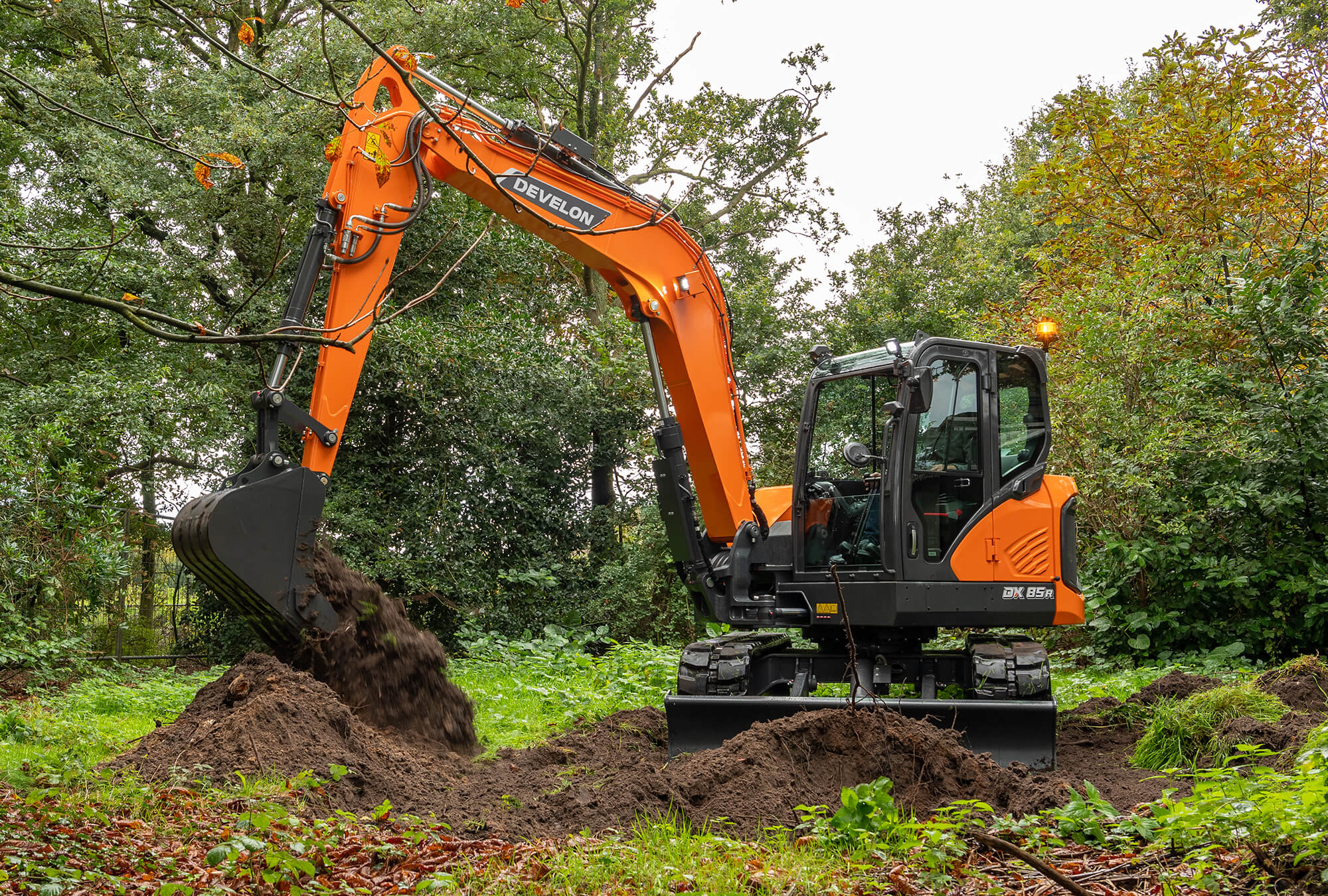

Develon DX85R-7 high performance hydraulic excavator Offers a host of redesigned features and new technologies to ensure smooth operation, superior productivity and stability, top-class operator comfort and improved fuel efficiency. This powerful machine will give your job site a huge boost.

Thanks to new Main Control Valve, the machine can be precisely controlled in single and complex operations with the improved performance by reducing the internal pressure loss and the front hydraulic flow matched to the workload. This contributes to great fuel economy and smooth operation.

Specifications

Machine Specs

Engine Develon D24
Engine power 48.5 kW (65 hp) @ 2100 rpm
Operating weight 9528 kg
Bucket capacity 0.28 m3
Standard arm 1700 mm
Long arm 2250 mm



Max. digging reach 7015/7530 mm
Max. digging depth (std / long arm) 4110/4670 mm
Travel speed 2.9/4.8 km/h
Width 2250 mm
Max. reach ground level (standard/long arm) 6850 / 7380 mm
