DL280-7

Bucket capacity

2.8 m³

Tipping load

12.303 kg

Static tipping load, at 40°

10.822 kg

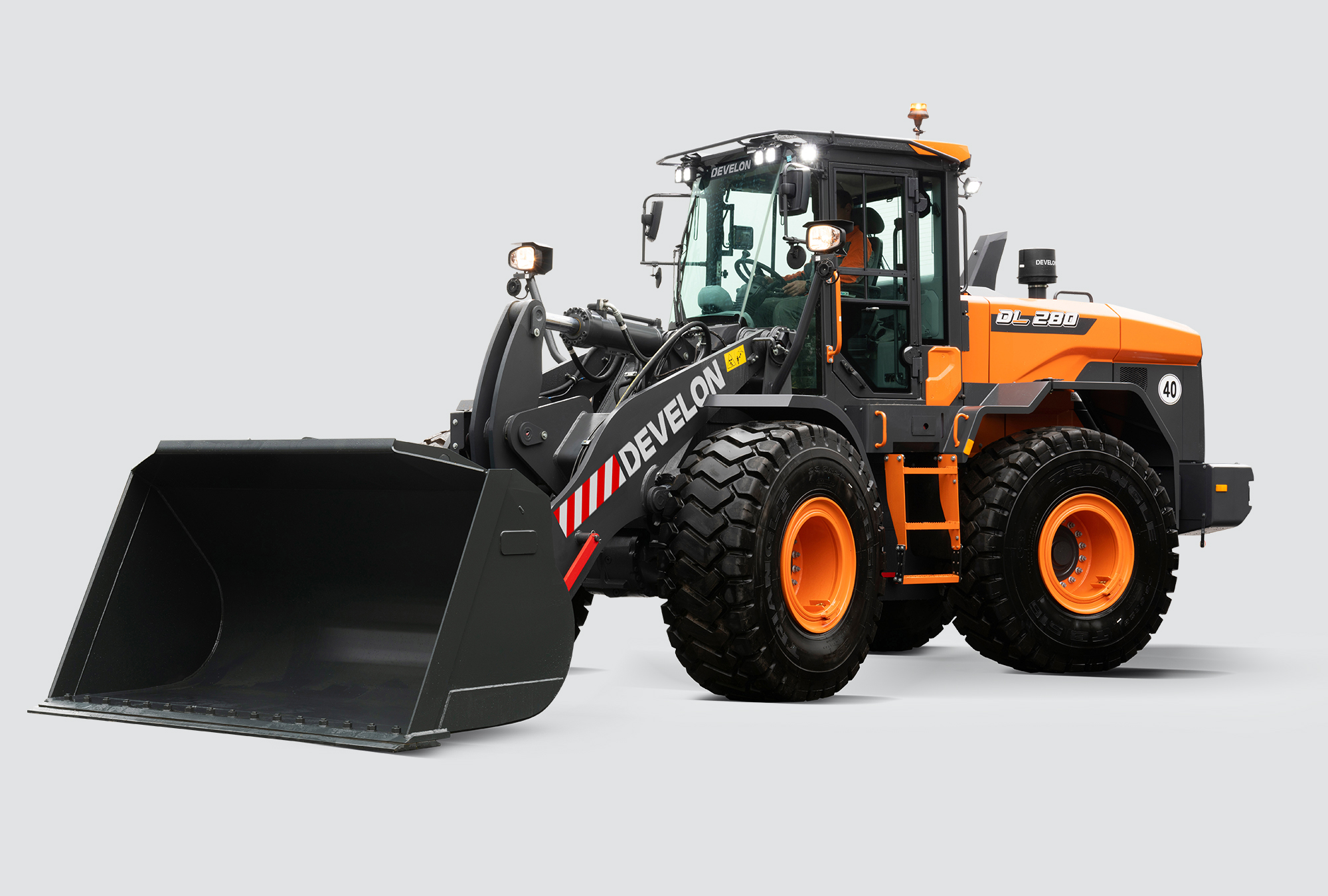

DL280-7

Boost your productivity

Boost your productivity with the new DL280-7 Develon wheel loader. Exceptional power – combined with the finest workmanship – results in a machine that performs at the highest level.


The DL280-7 enhances your output from every angle Impressive breakout force and high traction make penetration easy and allow you to tackle the hardest materials.

General Purpose Buckets

General purpose

Straight side cutter, teeth, width 2740 mm 2.7 m³
Straight side cutter, Bolt-on cutting edge, width 2740 mm 2.8 m³
Performance bucket - straight side cutter, teeth, width 2550 mm 2.8 m³
Performance bucket - straight side cutter, Bolt-on cutting edge, width 2550 mm 2.9 m³

Material handling

Convex side cutter, teeth, width 2550 mm 2.8 m³
Convex side cutter, Bolt-on cutting edge, width 2550 mm 2.9 m³

Transparent Bucket System

Owing to blind spots caused by the buckets on wheel loaders, the area in front of the machine has been considered an area of major concern in terms of safety. The system records images at the front of the wheel loader with two cameras mounted on the top and bottom of the machine and displays the combined images in real time on the monitor in the cab using a curved projection method.



See more information about our Transparent Bucket System.



Specifications

Machine Specs

Bucket capacity 2.8 m³
Tipping load 12.303 kg
Static tipping load, at 40° 10.822 kg
Length with bucket 7.804 mm
Width with bucket 2550 mm
Height 3.360 mm
Dump height (at 45°) with bolt-on cutting edge 2.734 mm



Dump reach (at 45°) with bolt-on cutting edge 1.255 mm
Wheelbase 3.050 mm
Engine Develon DL06 Stage V (6-cylinder)
Operating weight 15.759 kg
Engine power 141 kW (190 HP) at 2000 rpm
Breakout force 147 kN
