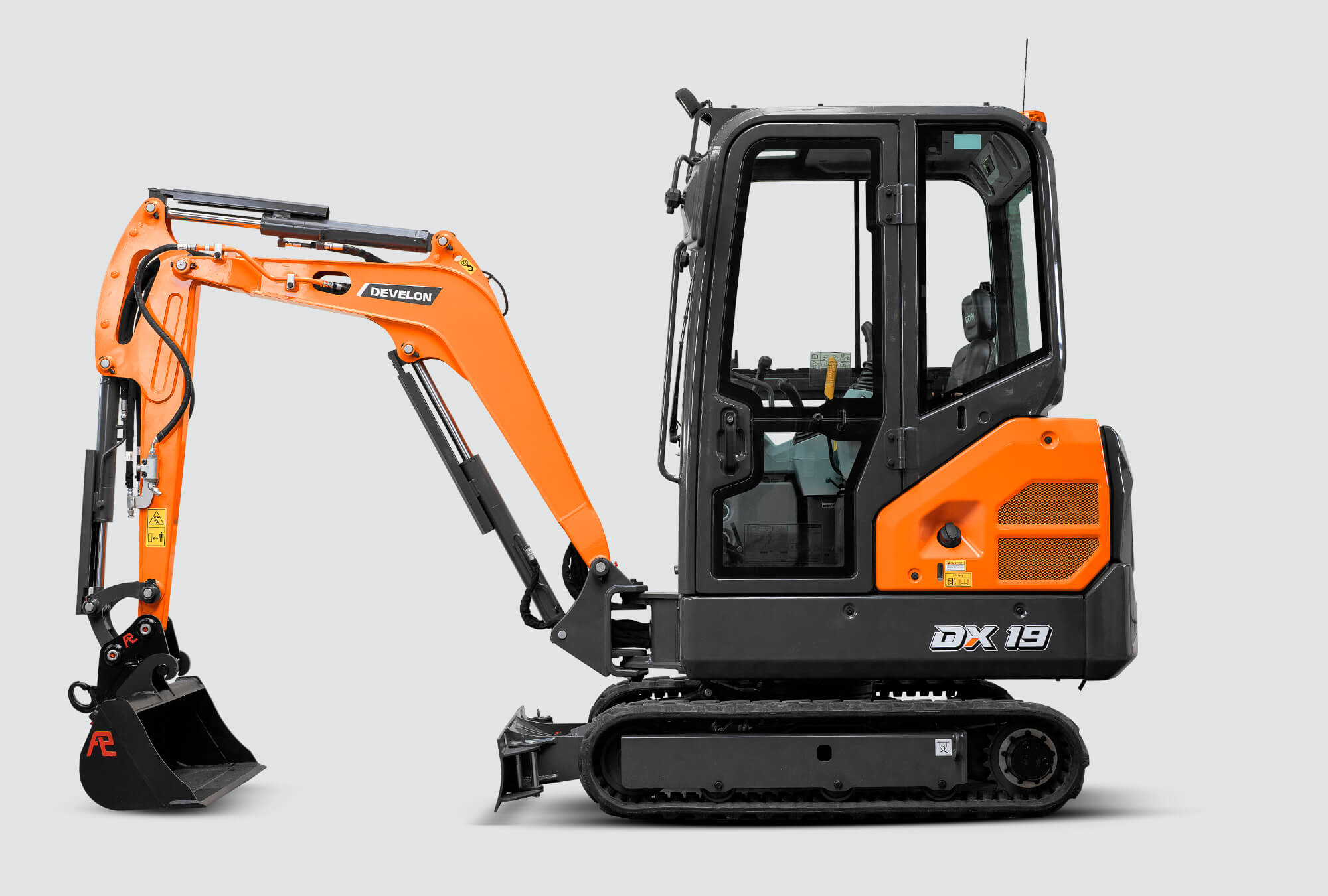

DX19-7

Operating weight

1885 kg

Engine

12.1 kW (16.5 hp) @ 2400 rpm

Buckets

0.04 m3

DX19-7

Lift beyond
the limits

Safe. Reliable. Compact. The DX19-7 is your trusty companion on any job site. With optimized stability and lifting capacity, it effortlessly handles a wide range of attachments, making every maneuver smooth and powerful.
Compact Build, Colossal Power
Equipped with a 16.2 hp engine, these machines are compact yet powerful, designed to boost efficiency and reliability on your construction projects.
Fast cycle times, combined with class-leading breakout forces, guarantee maximum productivity. Plus, with higher lifting capabilities and extended reach, the DX17z-7 and DX19-7 mini excavators make light work of heavier loads while keeping things steady.

From Every Task to Every Challenge

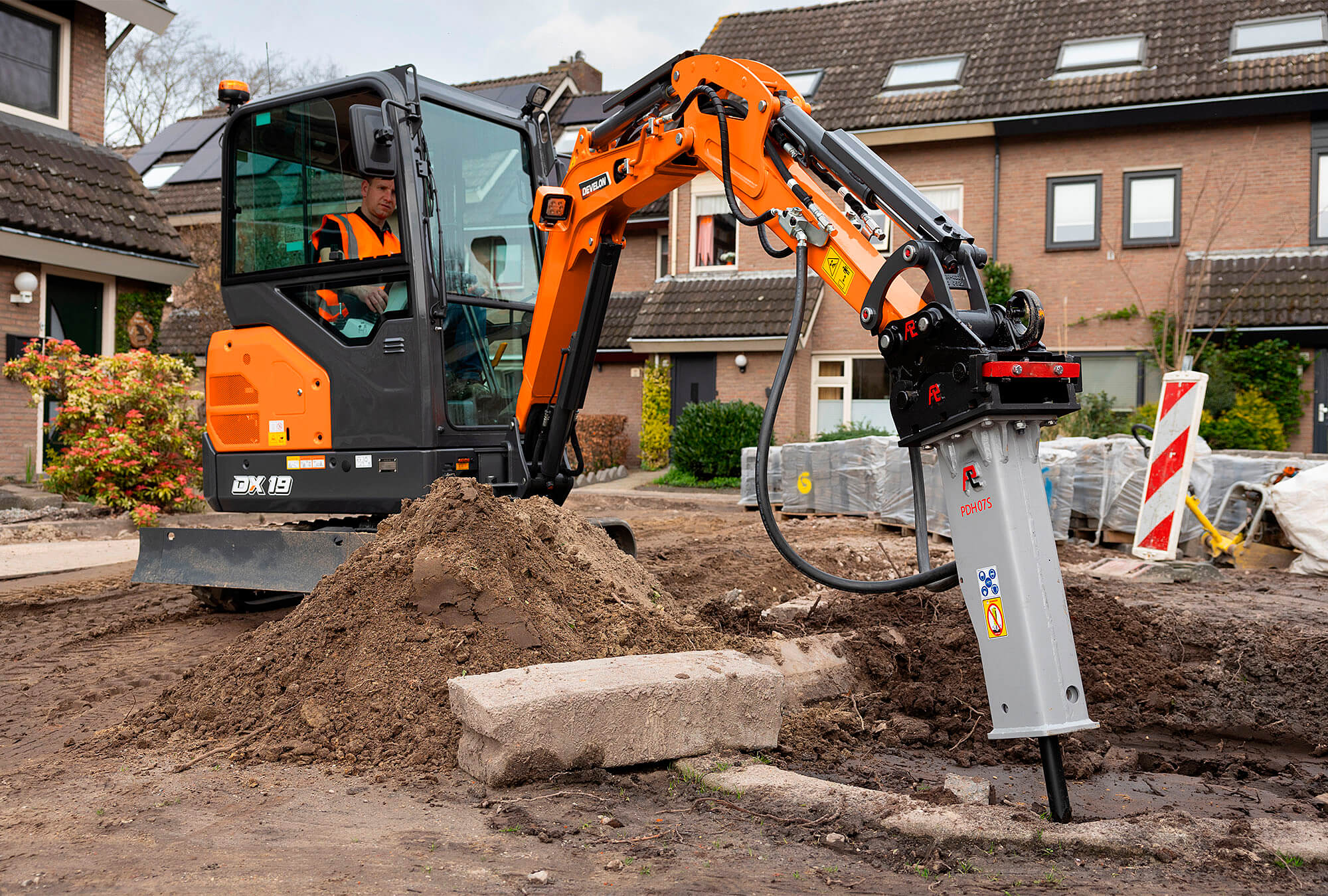

With optimized stability and lifting capacity, the DX19 offers you the highest versatility in operating a wide range of attachments.
The retractable undercarriage facilitates access to tight spaces, while the proportional auxiliary flow ensures powerful yet smooth maneuvers. Sit comfortably, with a clear, all-round view of the work site, and finish the job confidently.

Lift High, Reach Far, Stay Grounded
The DX17z-7 and DX19-7 prioritize operator comfort and safety with optimal ergonomics for operators of all sizes. Featuring a spacious canopy and ISO-certified TOPS/ROPS/FOPS, along with excellent visibility, they provide unmatched comfort and safety. Enjoy efficient operation with sensitive joysticks for minimal effort and enhanced confidence. Additionally, noise and vibration levels have been minimized for a more comfortable working experience.

Specifications

Machine Specs

Operating weight 1885 kg
Engine 12.1 kW (16.5 hp) @ 2400 rpm
Buckets 0.04 m3
Max. digging depth (std / long arm) 2340 / 2540 mm
Max. reach ground level (short / long arm) 3850 / 4040 mm
Digging height 3585 mm
Digging force over bucket (ISO) 14.1 kN
Digging force over arm (ISO) 8.8 kN



Boom swing (L/R) 55°/59°
Rear swing radius 1760 mm
Track shoe width 230 mm
Travel speed - low range 2.06 km/h
Travel speed - high range 3.73 km/h
Hydraulic flow 34.6 l/min
Width 994 (1290) mm
