DX20ZE

Operating weight

1941 kg

Travel speed

2 - 3.7 km/h

Battery Voltage

51 V

DX20ZE

Reliable Power in
a Compact Form

BE PART OF A LOW NOISE FUTURE

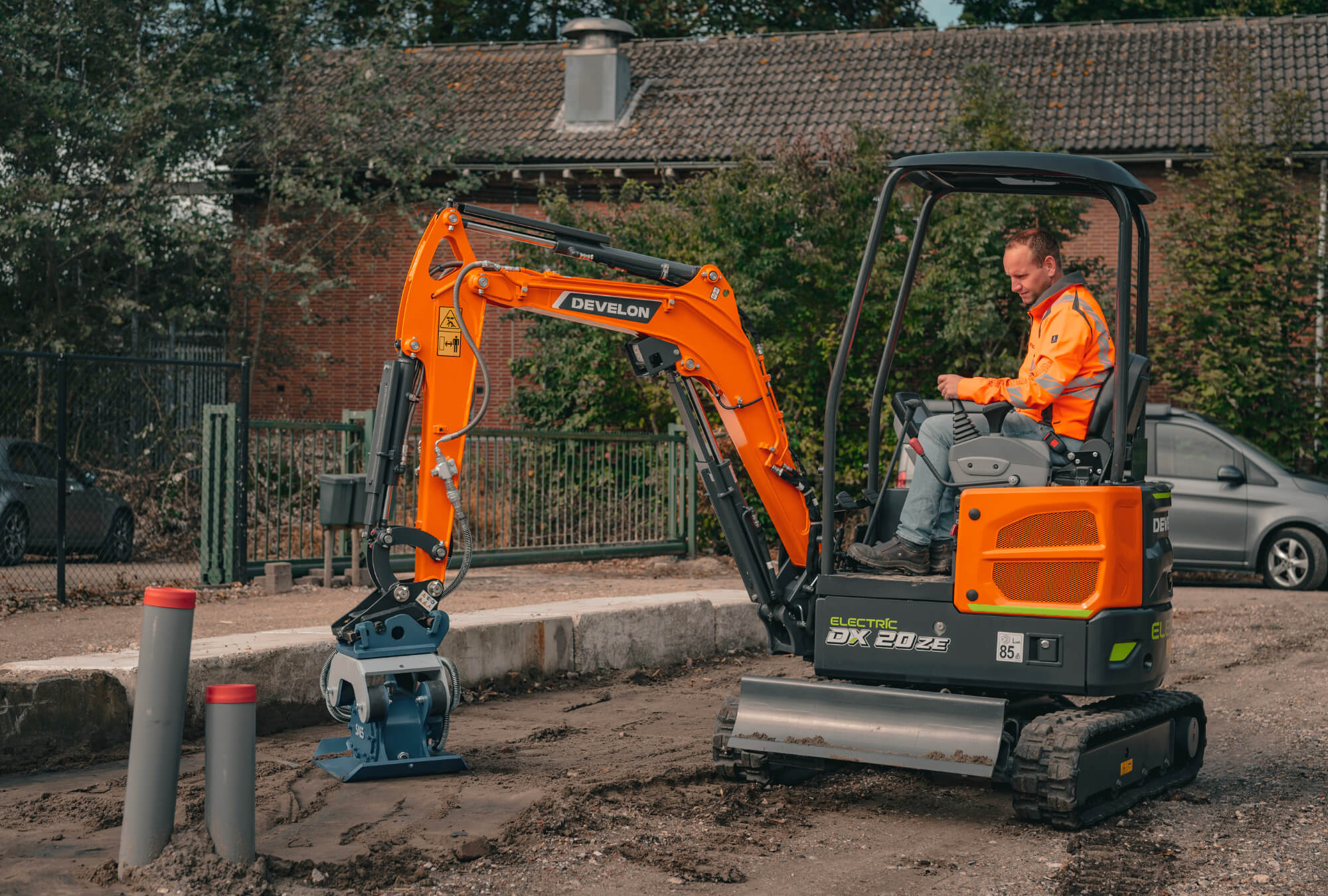

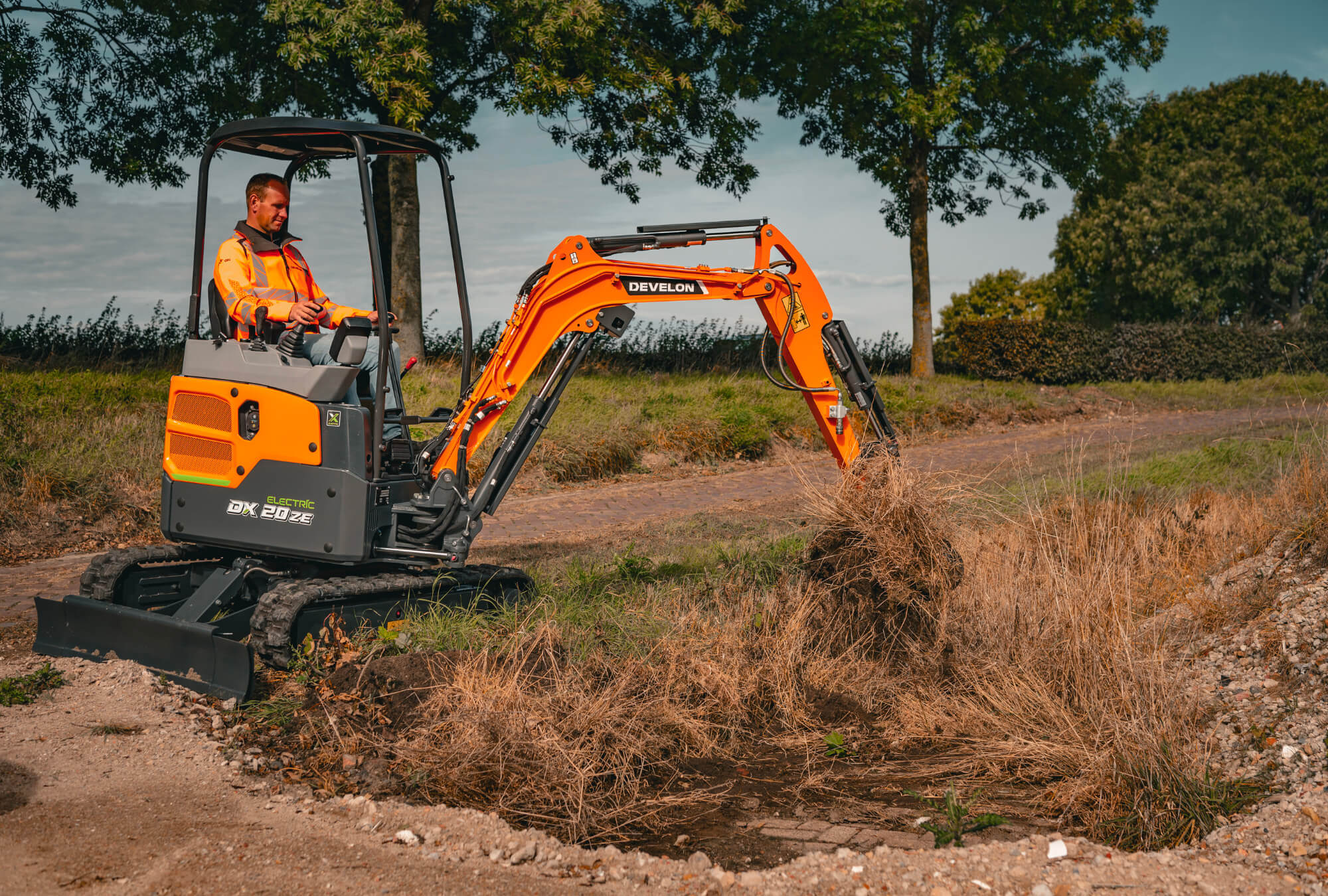

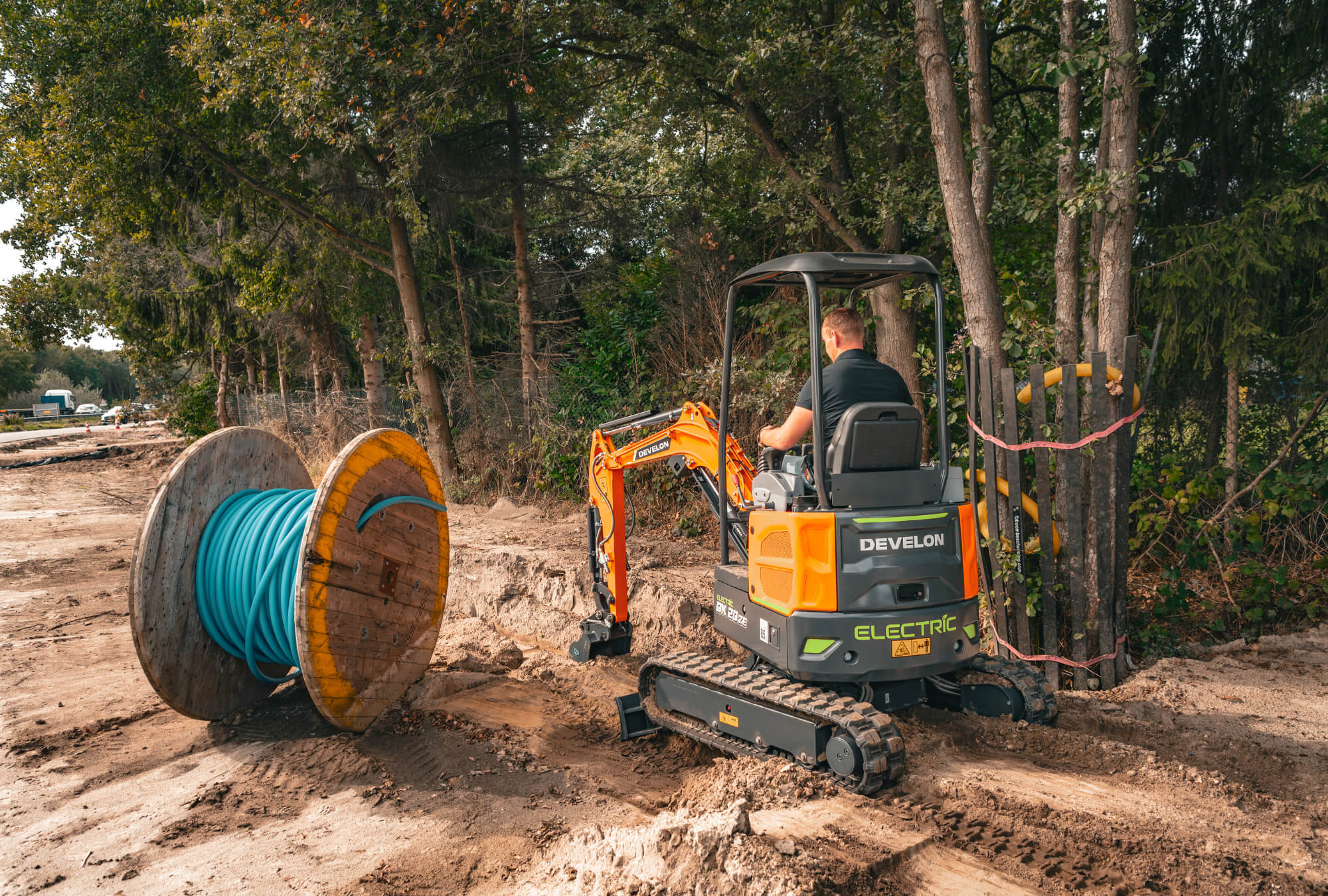

Develon takes a significant step towards a more sustainable future by unveiling the first fully electric machine, the DX20ZE mini excavator. This compact yet potent zero-emission machine operates quietly in bustling environments, generating no disruptive noise. With it’s zero-tail swing capability, it is versatile and safe enough to be used in various tight and busy locations, from hospitals to recreational areas.

RECHARGE FAST, WORK FASTER

Our in-house developed 20.4 kW battery guarantees exceptional performance, making your workdays more productive. You enjoy the convenience of two flexible battery charging options tailored to your unique requirements – with the standard house voltage of 220 V, you can achieve a full charge in just 8 hours, while the fast charger, compatible with a 380 V network, can accomplish the same in 1.5 hours.

CONTINUE ON THE GREEN SIDE

This machine's zero carbon and particle emissions solutions render it environmentally conscious and eco-friendly. Along with protecting the health of neighboring communities, by not requiring fuel, it decrease maintenance needs, saves time, and operation costs, as well.

BREAK THE WALLS, NOT THE SILENCE

Designed to seamlessly integrate into compact and bustling spaces, this machine's reduced vibrations ensure minimal disturbance to the immediate surroundings, enabling operators to work more productively. The absence of noise not only contributes to preserving the ecosystem, but enhances the working environment for operators, safeguarding health.

Opting for the DX20ZE means elevating your total cost of ownership while upholding top-tier productivity and uptime.

Specifications

Machine Specs

Operating weight 1941 kg
Travel speed 2 - 3.7 km/h
Battery Voltage 51 V
Battery Power 20.4 kWh
Bucket capacity 0.05 m³
Maximum traction 1.57 t
Maximum swing speed 9.6 rpm



Maximum swing torque 335 kgf·m
Maximum gradeability 16.7° / 30%
Width 950 (1.360) mm
Max. reach ground level (standard/long arm) 3.725 mm
Max. digging depth (std / long arm) 2.200 mm
Engine electric
Engine power electric

DX20ZE
