DX235LCR-7

Maximum power

189 HP

Operating weight

24.300 kg

Bucket capacity

0.92 m³

DX235LCR-7

Boost your productivity

DX235LCR-7 is further model in the company’s new generation medium-sized Stage V compliant excavators. This model has a reduced tail swing radius, which makes them ideal for working in the city and in restricted areas, in residential as well as commercial construction.

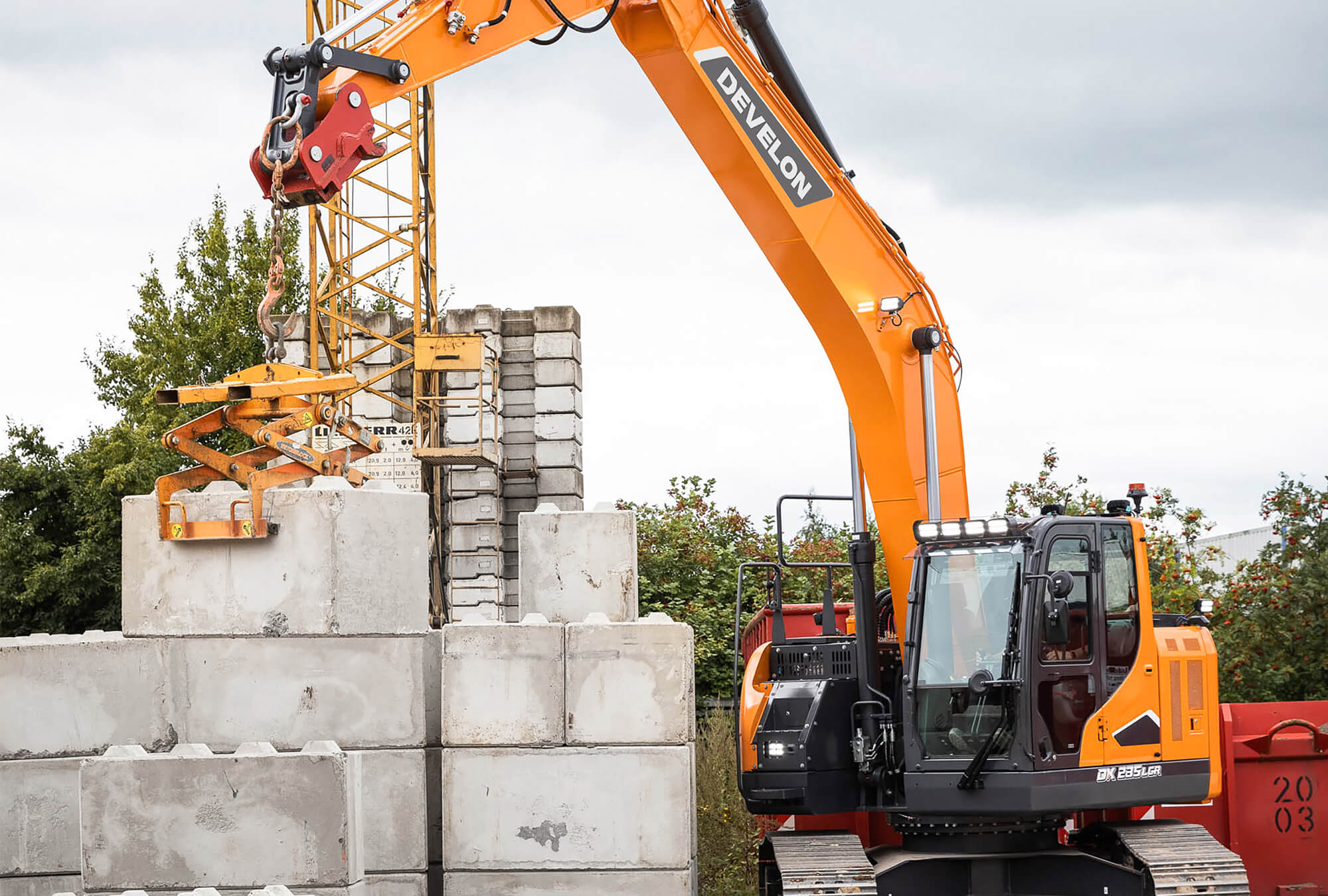

The lifting performance of DX235LCR-7 models is simply outsdanding! Thanks to an optional heavy counterweight, you can easily lift massive objects like pipes and big concrete blocks - whatever your job site requires. To make the machine's maintenance as convenient as possible, we've updated the counterweight design to provide greater service accessability. On top of that, the "-7" generation of Develon Excavators allows you to unlock the door remotely and start or stop the engine with the Develon Smart Key.

Specifications

Machine Specs

Maximum power 189 HP
Operating weight 24.300 kg
Bucket capacity 0.92 m³
Emission standard Stage V
Engine Develon DL06V
Engine power 141 kW / 189 HP @ 1900 RPM



Main pumps max flow 2 × 222.3 l/min
Maximum swing speed 11.5 rpm
Maximum swing torque 9626 kgf·m
Travel speed (low - high) 3.2 - 5.8 km/h
Maximum traction 29.200 kg
Maximum gradeability 35° / 70%
