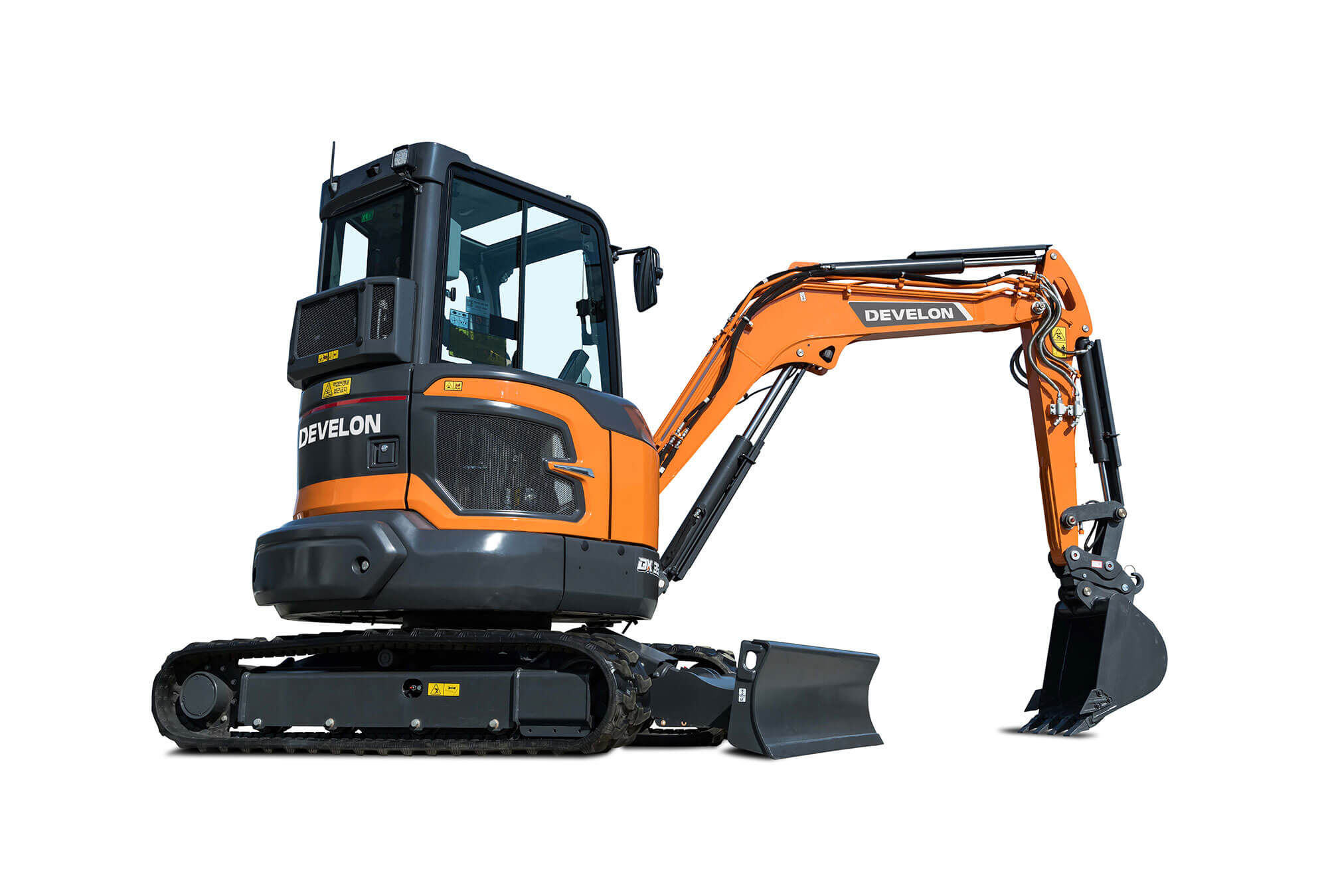

DX35Z

Maximum power

24.8 hp

Operating weight

3 995 kg

Max. bucket capacity

0,11 m³

DX35Z

Boost your productivity

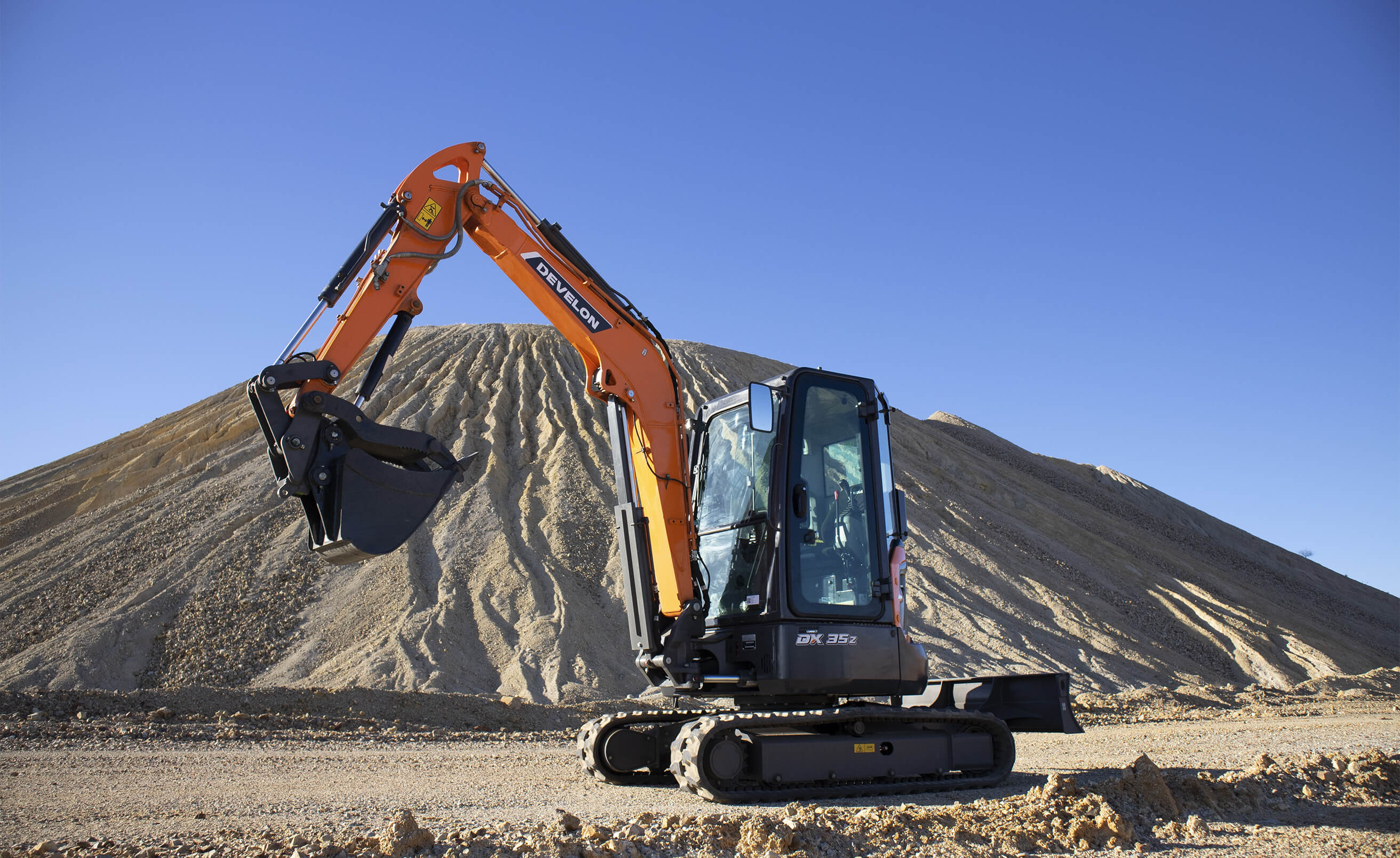

The DX35Z is equipped with optimal systems suitable for various applications from pipe work to landscaping.

The compactness of the machine allows operations within confined spaces as well as operations in restricted areas around buildings. The accurate, smooth and powerful digging performance maximizes the productivity.

Specifications

Machine Specs

Maximum power 24.8 hp
Operating weight 3 995 kg
Max. bucket capacity 0,11 m³
Engine Develon D17
Nominal flywheel power 18.2 kW / 2.200 RPM
Max. reach ground level (short / long arm) 5235 / 5400 mm



Max. dumping height (standard / long arm) 3340 / 3521 mm
Max. digging depth (standard / long arm) 3275/ 3445 mm
Digging force - bucket 33.43 kN
Travel speed 2.6 / 4.7 km/h
Width 1700

DX35Z

Options & Attachments

Quick Coupler

Part name Part # Pin Diameter (mm) Min - Max Centers (x - y )mm) Base Width  (mm) Weight  (kg (lbs))
2-4t Quick Coupler QC35-40 (H) 35 / 40 130 - 225 122 77 (35)

Bucket

Part name Part # Width (mm) Capacity (m3) Weight (kg)
Bucket H04-0300 H04-0300 300 0,039 50
Bucket H04-0450 H04-0450 450 0,068 63
Bucket H04-0600 H04-0600 600 0,097 77
Bucket G04-1200 G04-1200 1300 0,161 124
